Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the push in retainer caps from the air inlet grille panel (2, 3, 4, 5, 6, 7, 8, 10).
  3. Remove the push in retainers from the air inlet grille panel.
  4. Disconnect the washer hose connector.
  5. Push the washer hose grommet into the plenum area.
  6. Lift the right side of the air inlet grille panel over the wiper arm drive spindles and remove the panel from the vehicle.

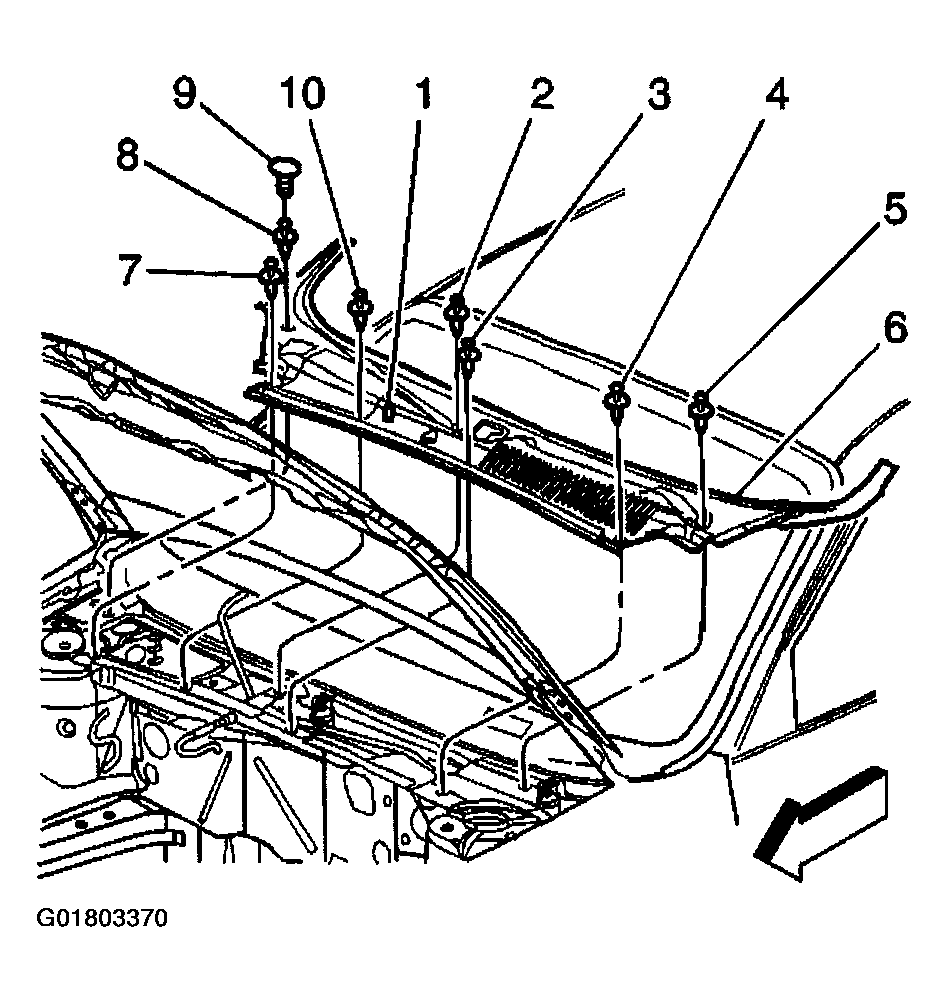

    Fig 1: Removing Air Inlet Grille Panel
    G01803370Courtesy of GENERAL MOTORS CORP.
