Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer hose and the washer hose grommet through the hole in the plenum area.
  2. Press the washer hose grommet into position and ensure that it is fully seated.
  3. Install the air inlet grille panel to the vehicle, positioning four way locating post (1) to cowl.
  4. Connect the washer hose connector.
  5. Install the air inlet grille panel retainers (2, 3, 4, 5, 6, 7, 8, 10).
  6. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT .

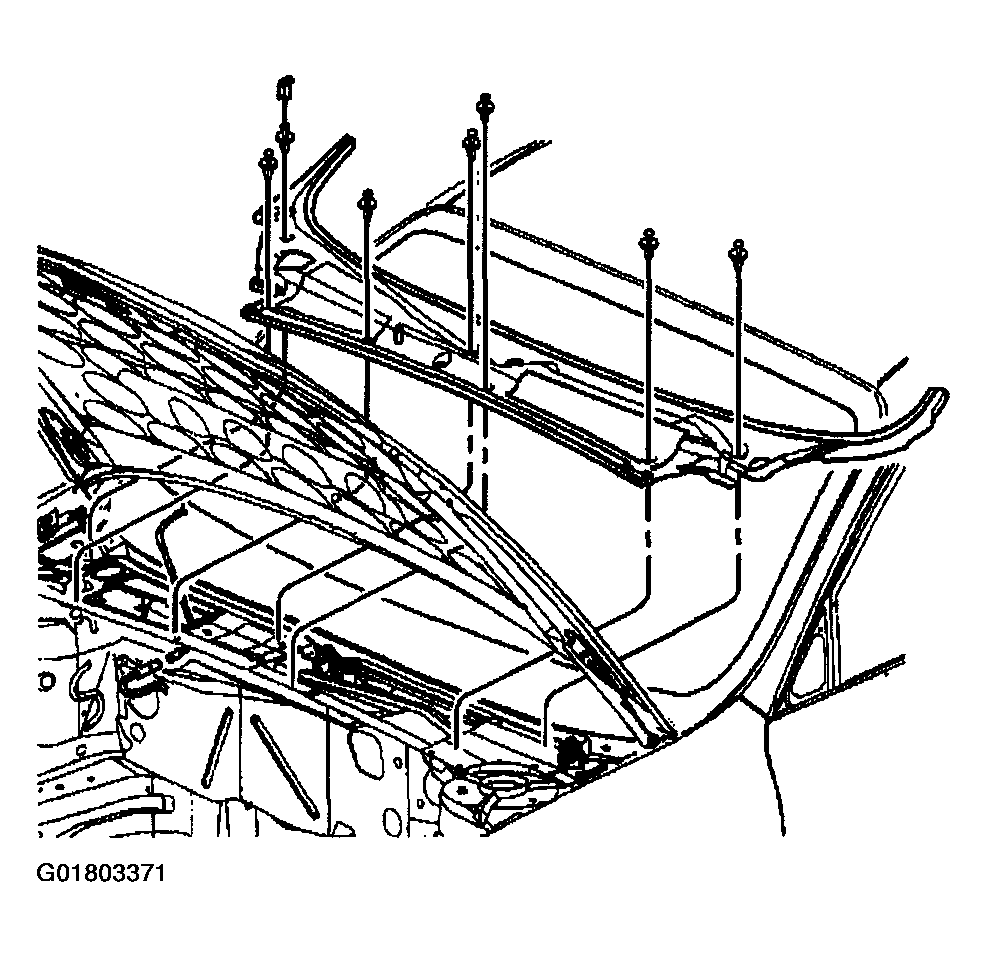

    Fig 1: Installing Air Inlet Grille Panel
    G01803371Courtesy of GENERAL MOTORS CORP.
