Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the retainers (1, 2, 3, 4) from the front air deflector.
  3. Remove the front air deflector (5).

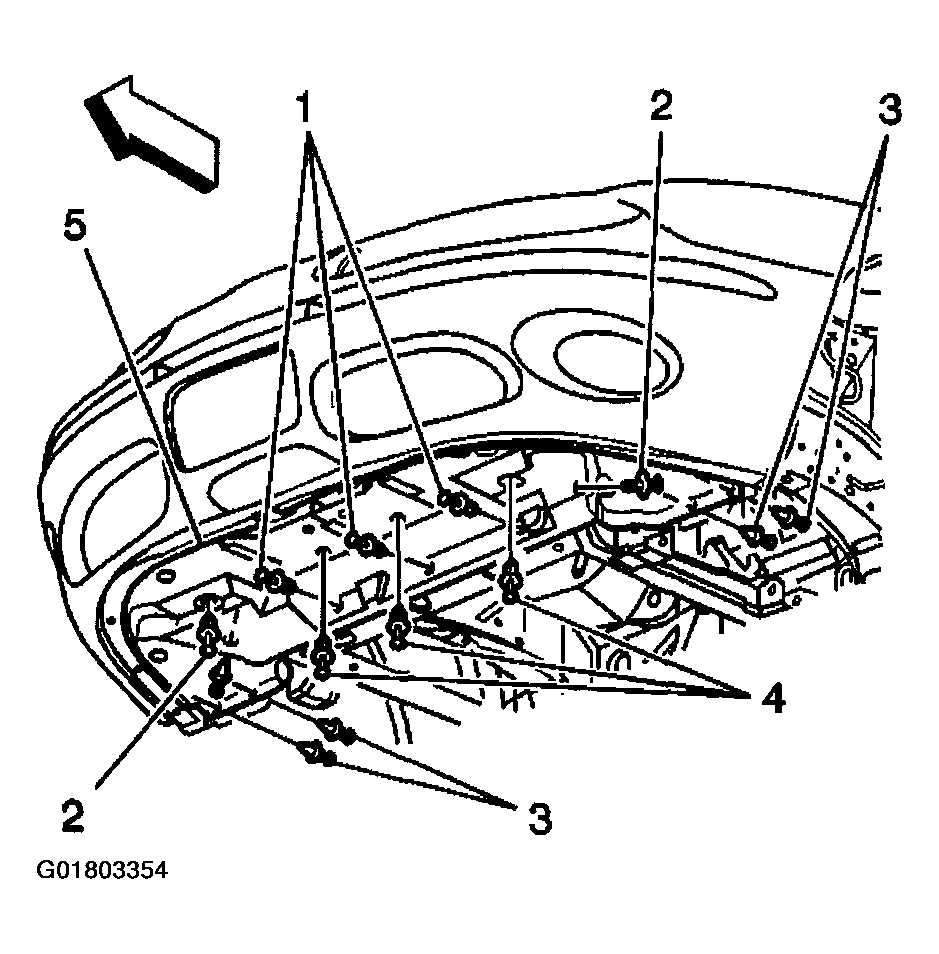

    Fig 1: Removing Front Air Deflector
    G01803354Courtesy of GENERAL MOTORS CORP.
