Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed.
  2. Install the electrical center cover.

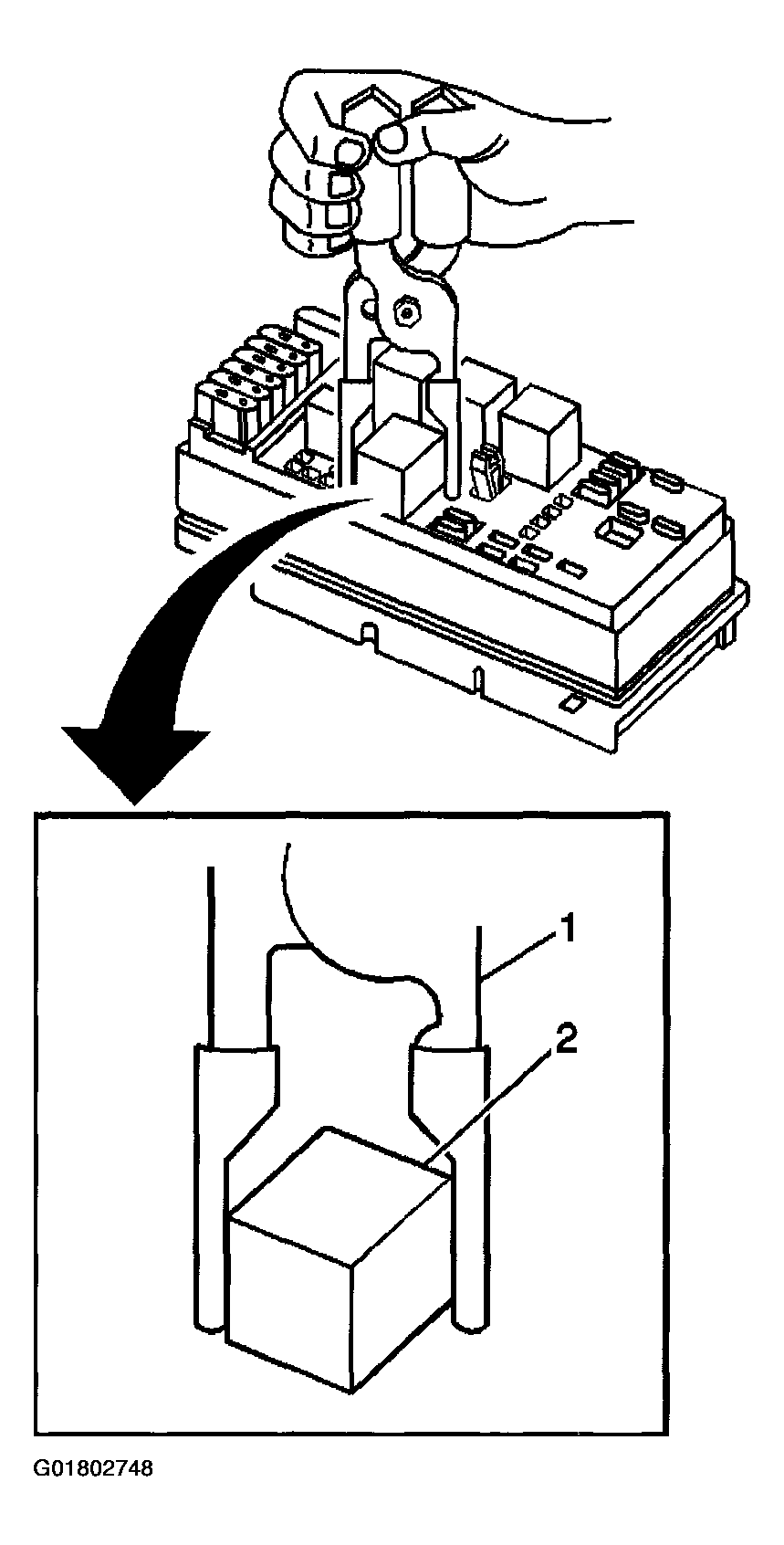

    Fig 1: Installing Relay
    G01802748Courtesy of GENERAL MOTORS CORP.
