Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  3. Remove the rear fuse block cover.
  4. Remove the positive battery cable nut (1) and cable from the rear electrical center.
  5. Release the 4 retaining clips.
  6. Lift the electrical center up and turn over.
  7. Remove the 3 connector fasteners and remove all the connectors from the fuse block.

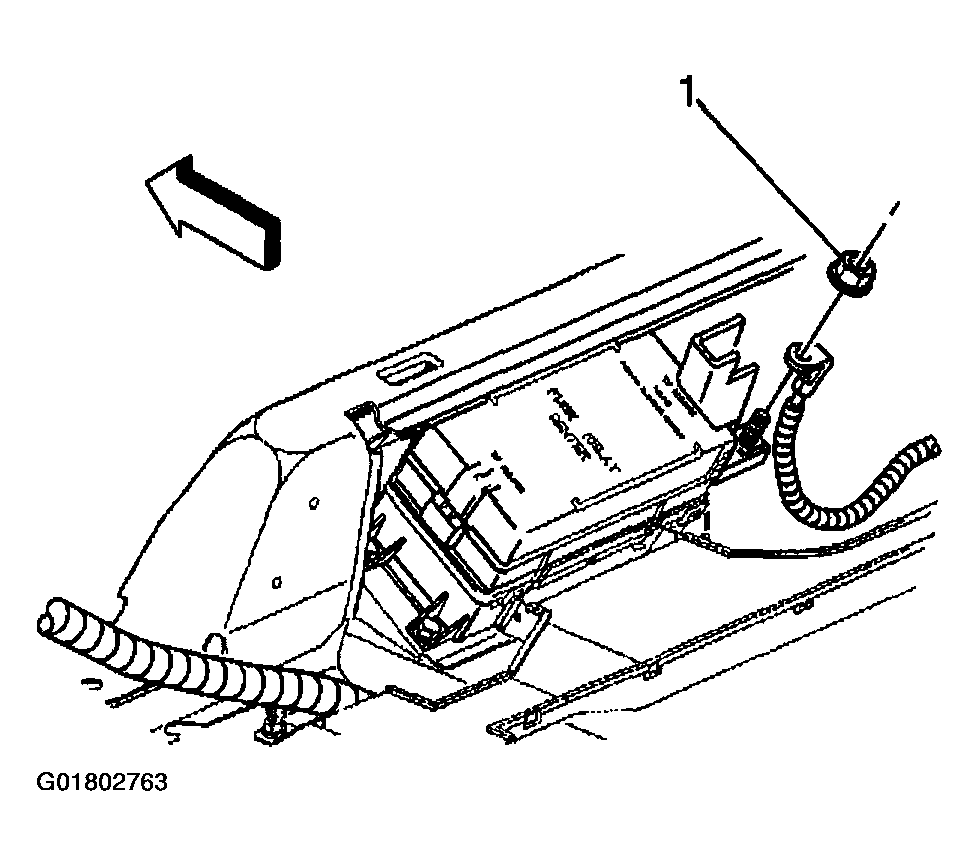

    Fig 1: Removing Positive Battery Cable Nut
    G01802763Courtesy of GENERAL MOTORS CORP.
