Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install all the connectors to the rear fuse block and hand start the fasteners.

    Tighten

    Tighten the fasteners to 6.6 N.m (58 in lbs).

  2. Install the rear electrical center into the base assembly ensuring all the clips engage.
  3. Install the positive battery cable and nut (1).

    Tighten

    Tighten the nut to 15 N.m (11 ft lbs).

  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  5. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .

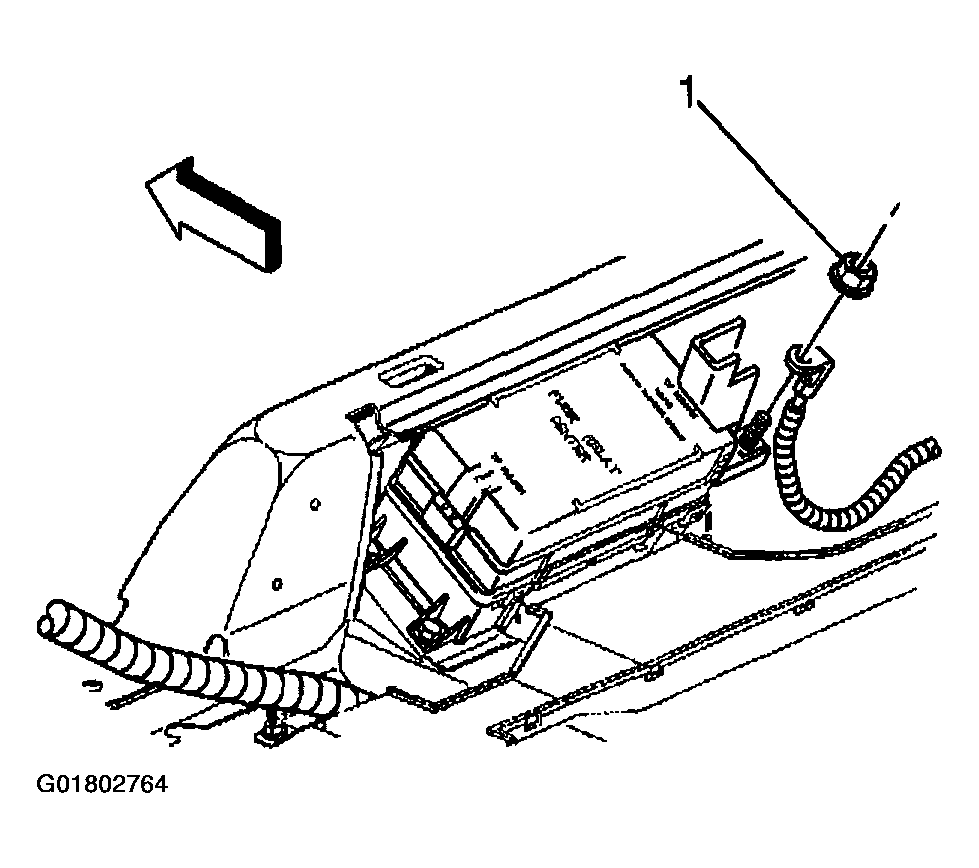

    Fig 1: Installing Positive Battery Cable Nut
    G01802764Courtesy of GENERAL MOTORS CORP.
