Passenger Car Zoning

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

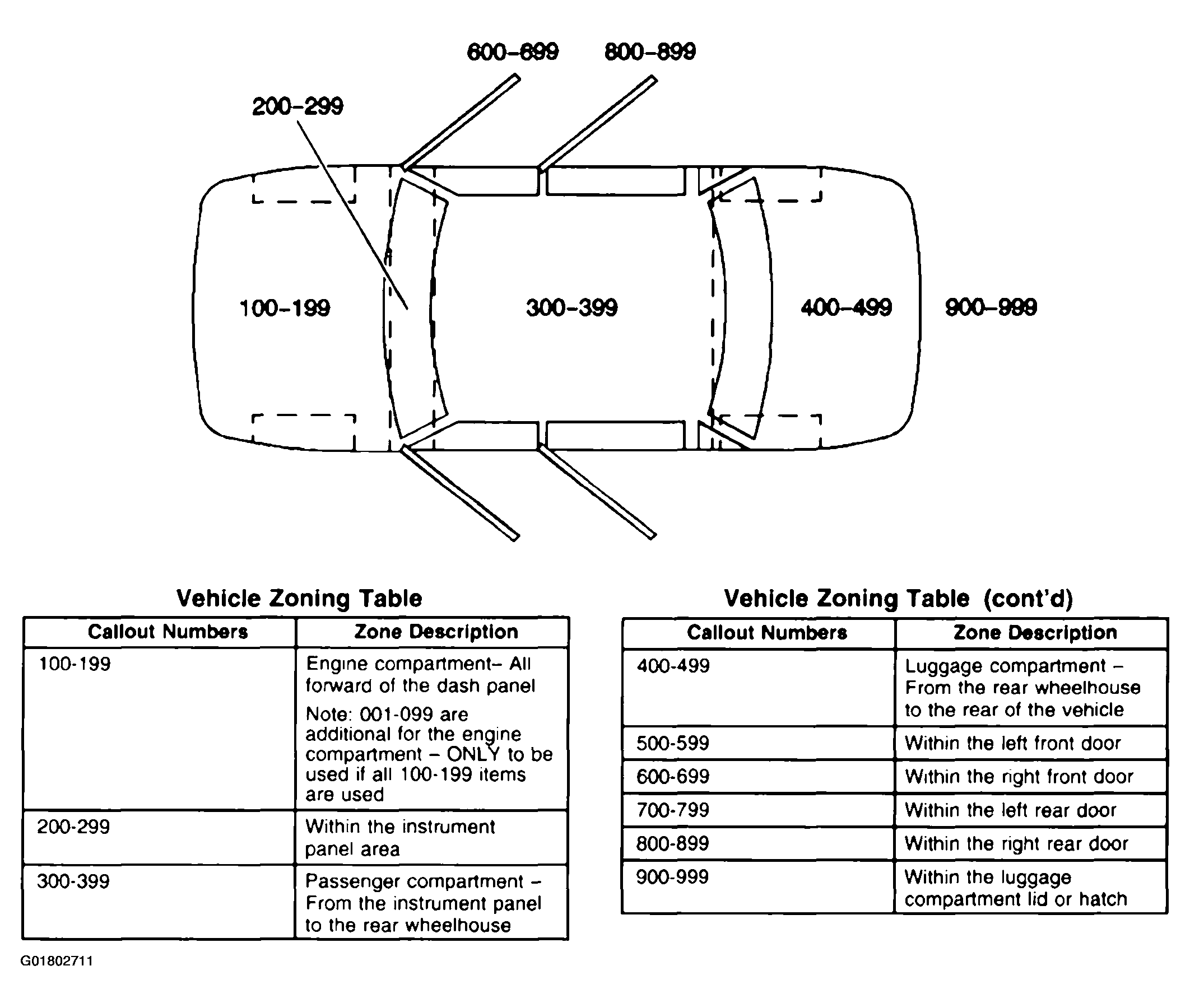

Fig 1: Passenger Car Zoning

Courtesy of GENERAL MOTORS CORP.

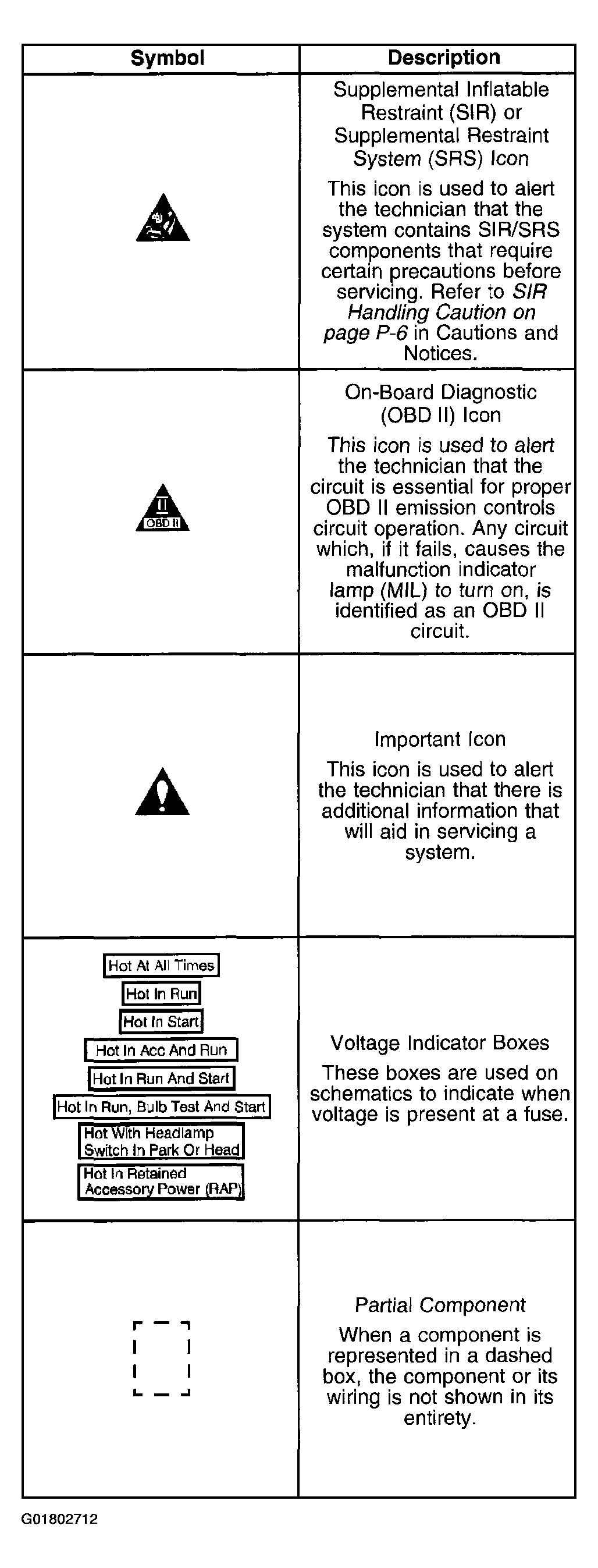

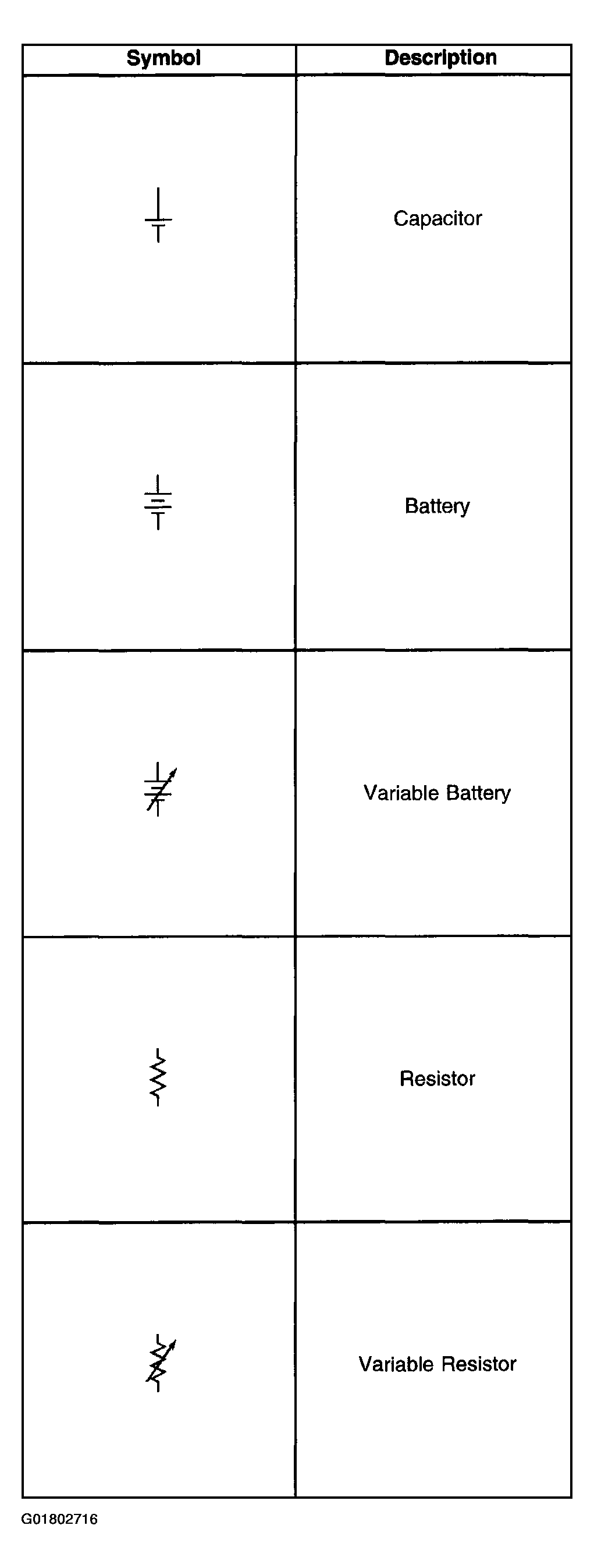

Fig 2: Electrical Symbols (1 Of 8)

Courtesy of GENERAL MOTORS CORP.

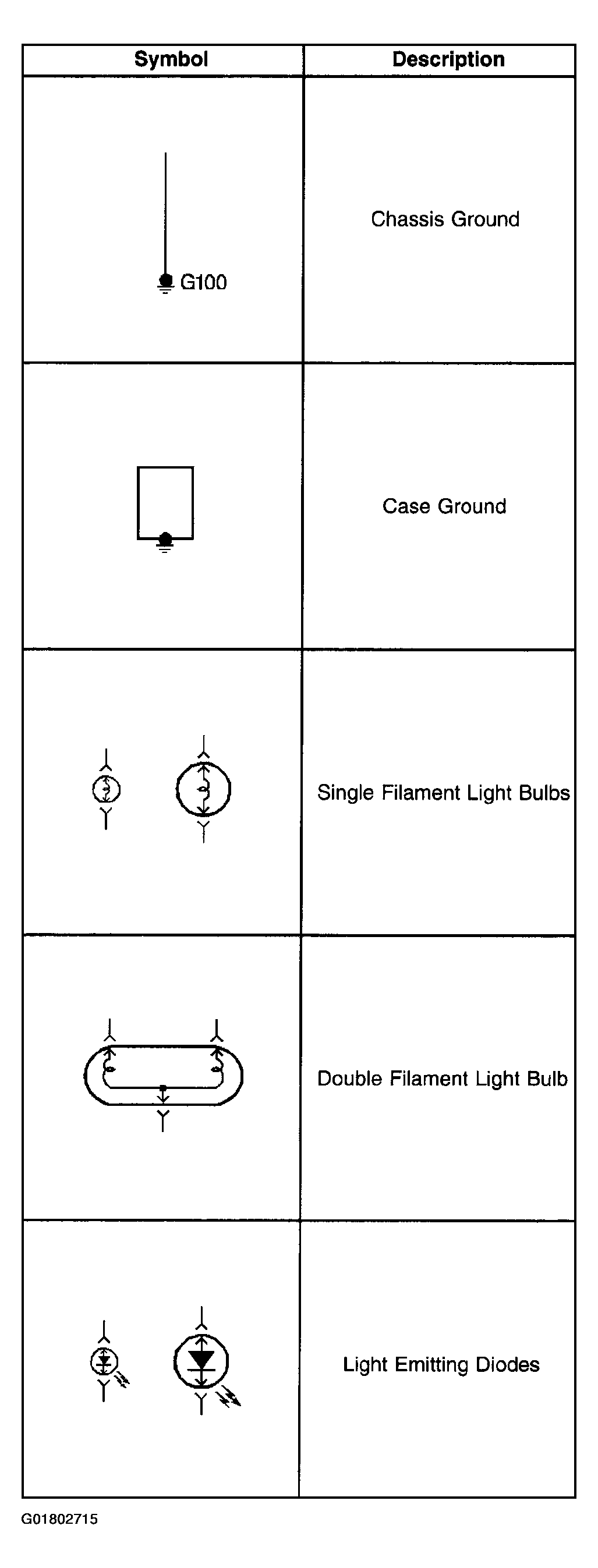

Fig 3: Electrical Symbols (2 Of 8)

Courtesy of GENERAL MOTORS CORP.

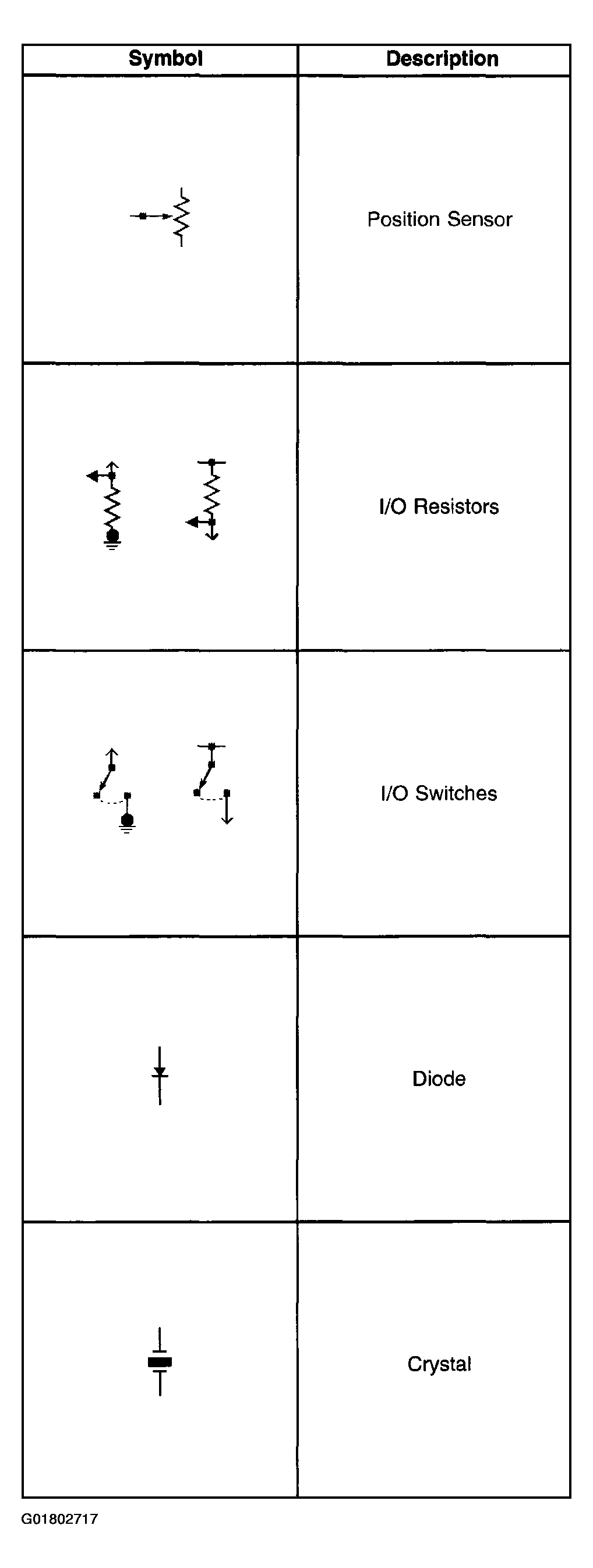

Fig 4: Electrical Symbols (3 Of 8)

Courtesy of GENERAL MOTORS CORP.

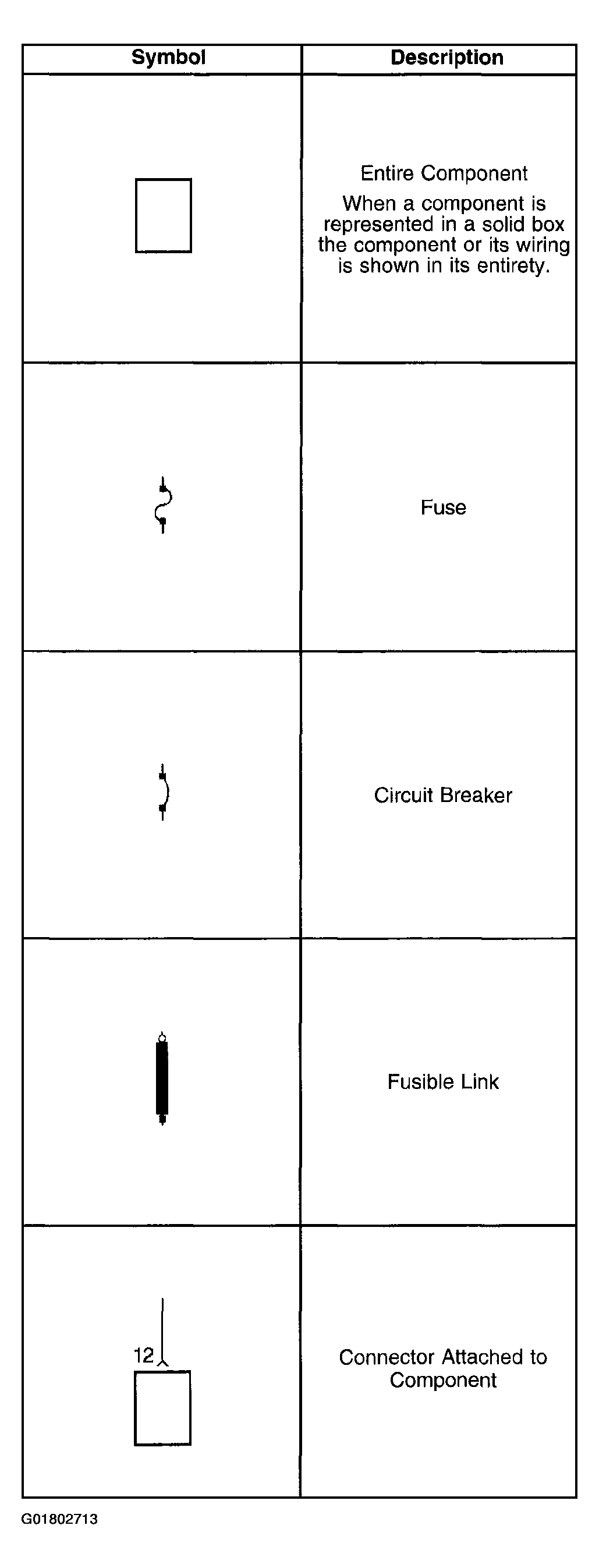

Fig 5: Electrical Symbols (4 Of 8)

Courtesy of GENERAL MOTORS CORP.

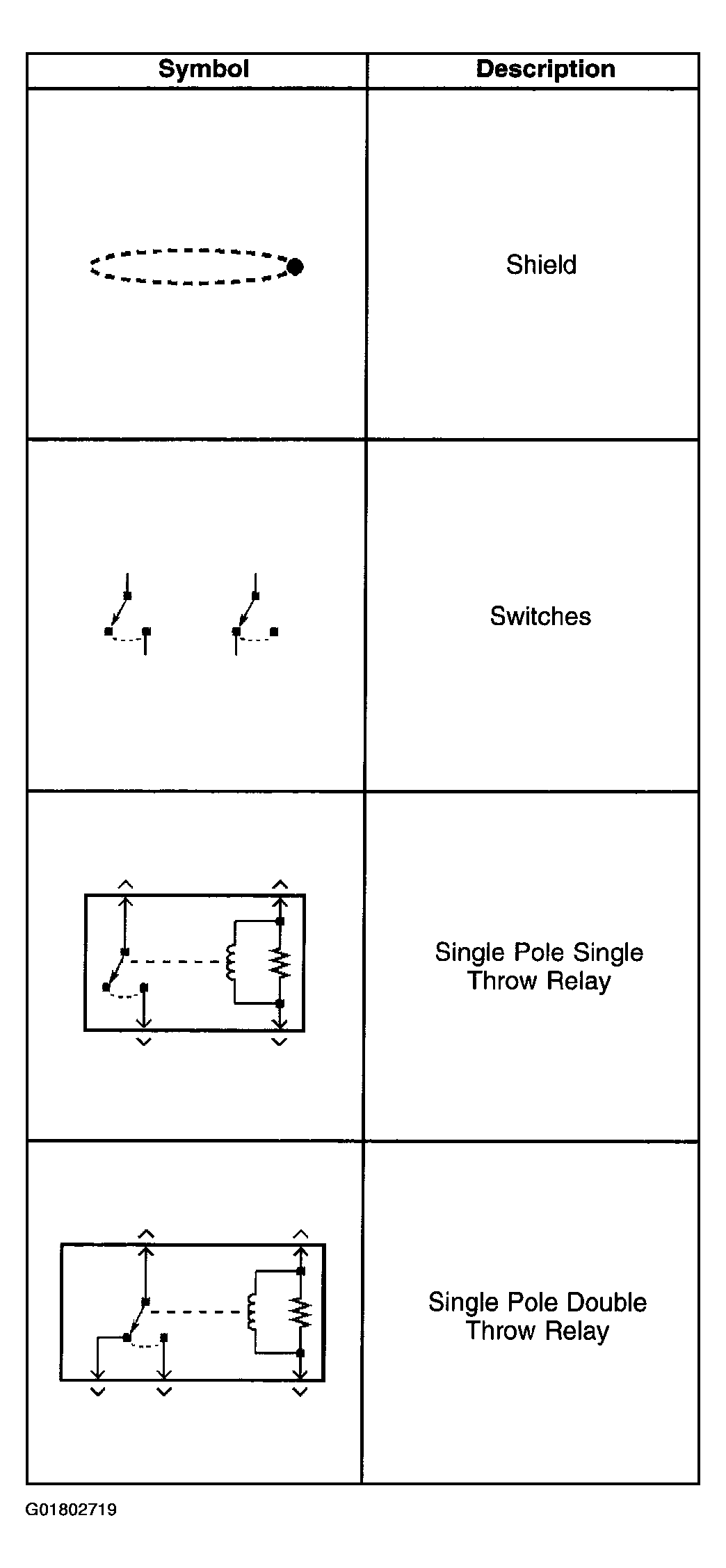

Fig 6: Electrical Symbols (5 Of 8)

Courtesy of GENERAL MOTORS CORP.

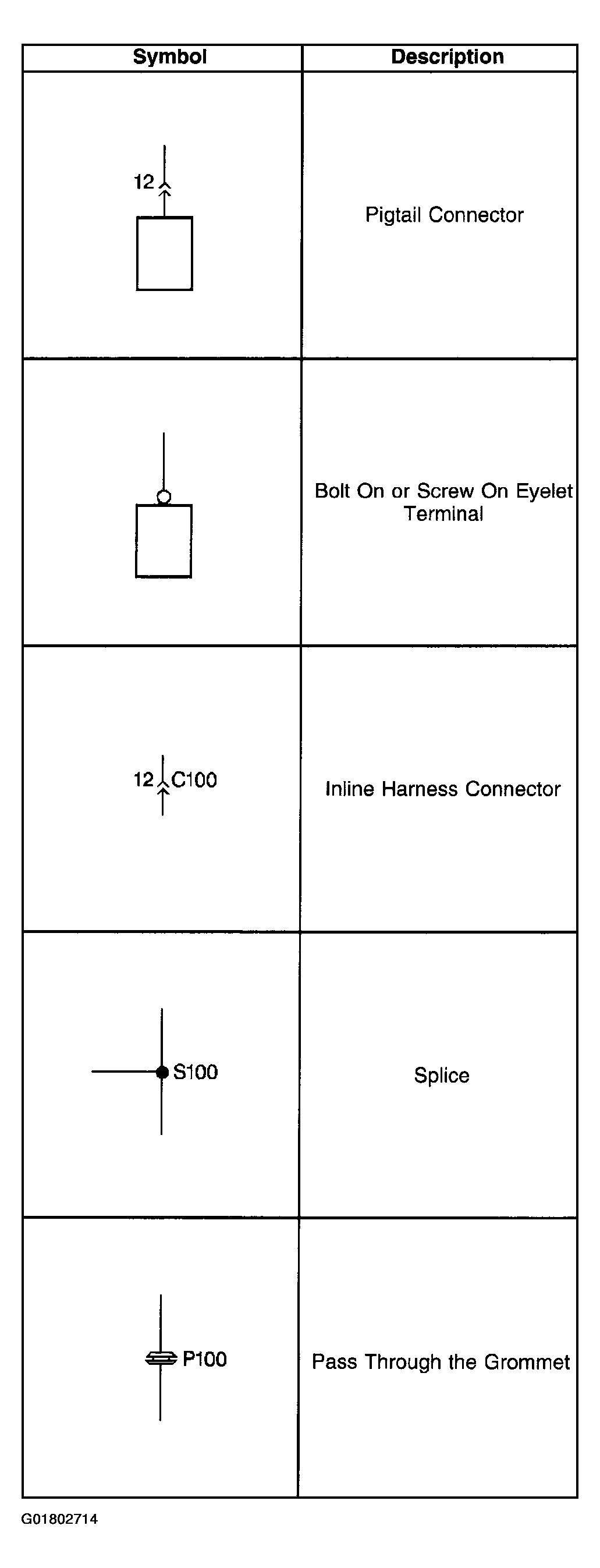

Fig 7: Electrical Symbols (6 Of 8)

Courtesy of GENERAL MOTORS CORP.

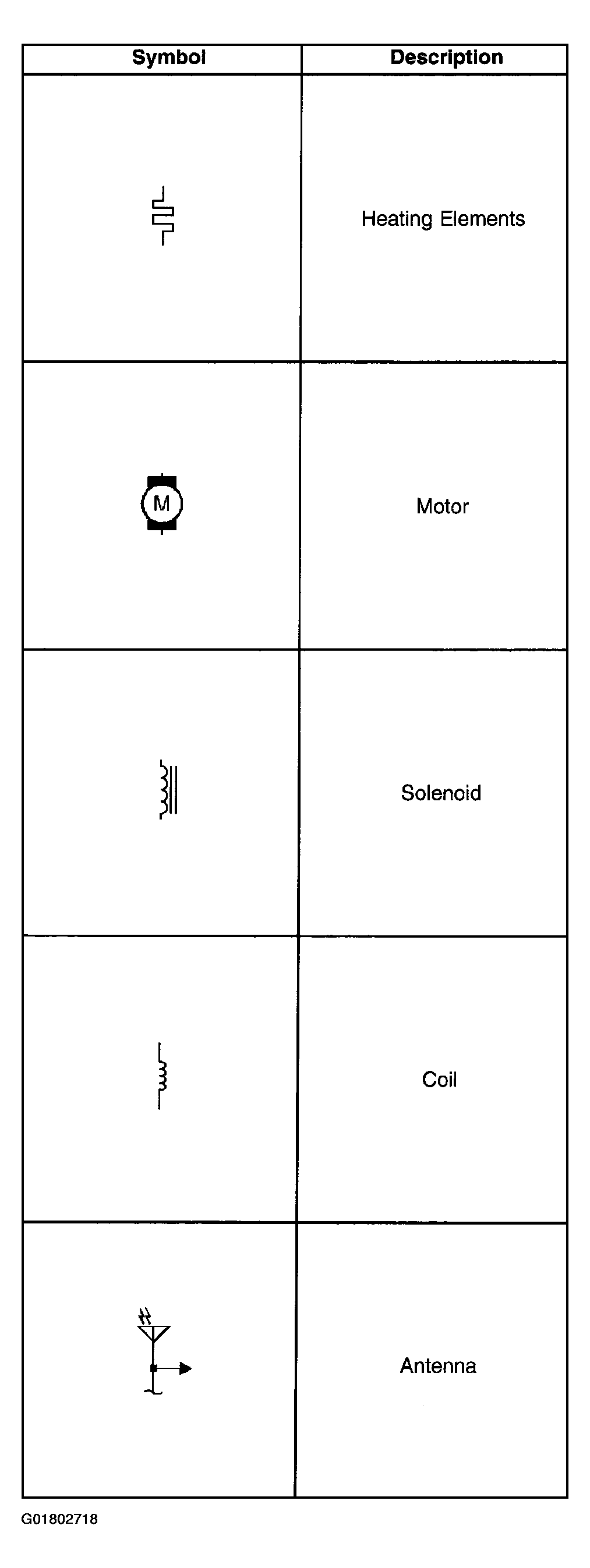

Fig 8: Electrical Symbols (7 Of 8)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Electrical Symbols (8 Of 8)

Courtesy of GENERAL MOTORS CORP.
