Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to carefully release the retainer from the base of the recliner handle.
  2. Remove the recliner handle.

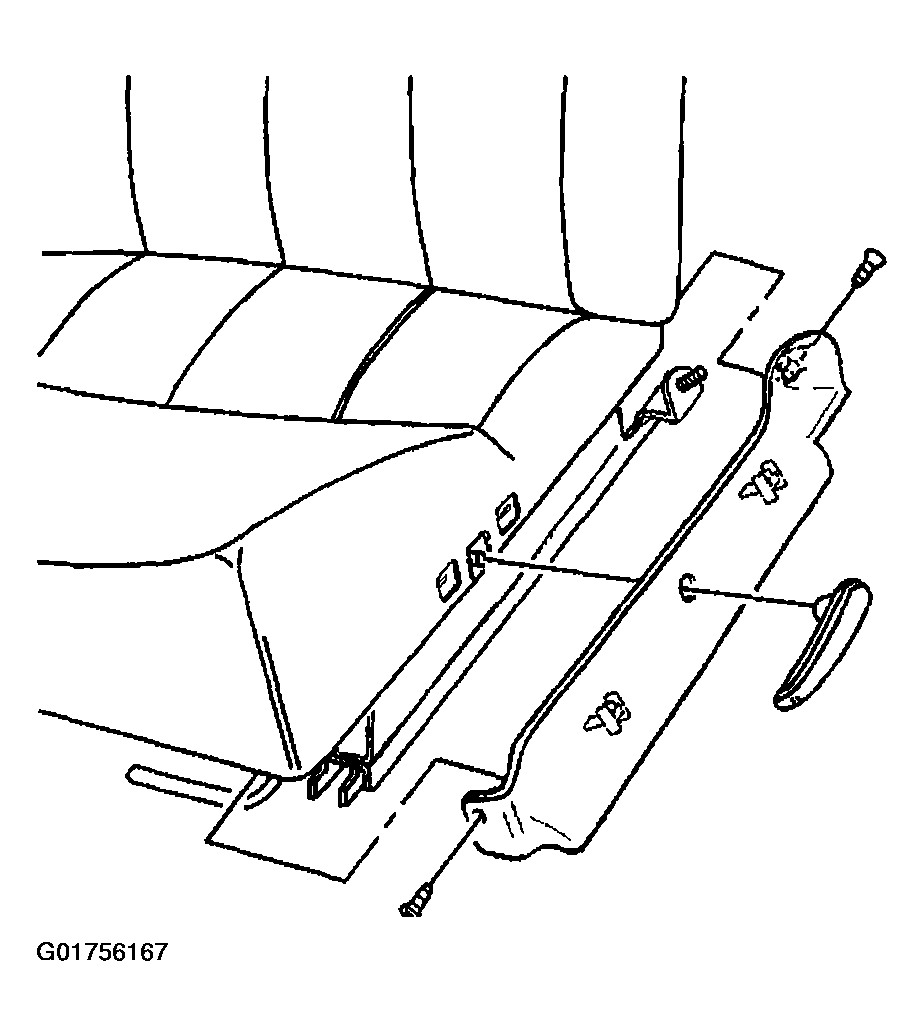

    3. Fig 1: Identifying Front Seat Trim Panel
    G01756167Courtesy of GENERAL MOTORS CORP.
  3. Remove the finish panel screws.
  4. Pull the finish panel away from the seat cushion frame in order to release the clips.

    Discard the clips.

  5. Disconnect the power seat switch electrical connector, if equipped.
  6. Remove the finish panel from the seat.
