Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. At each retainer location push rearward on the bottom of the seat cushion and then pull up.

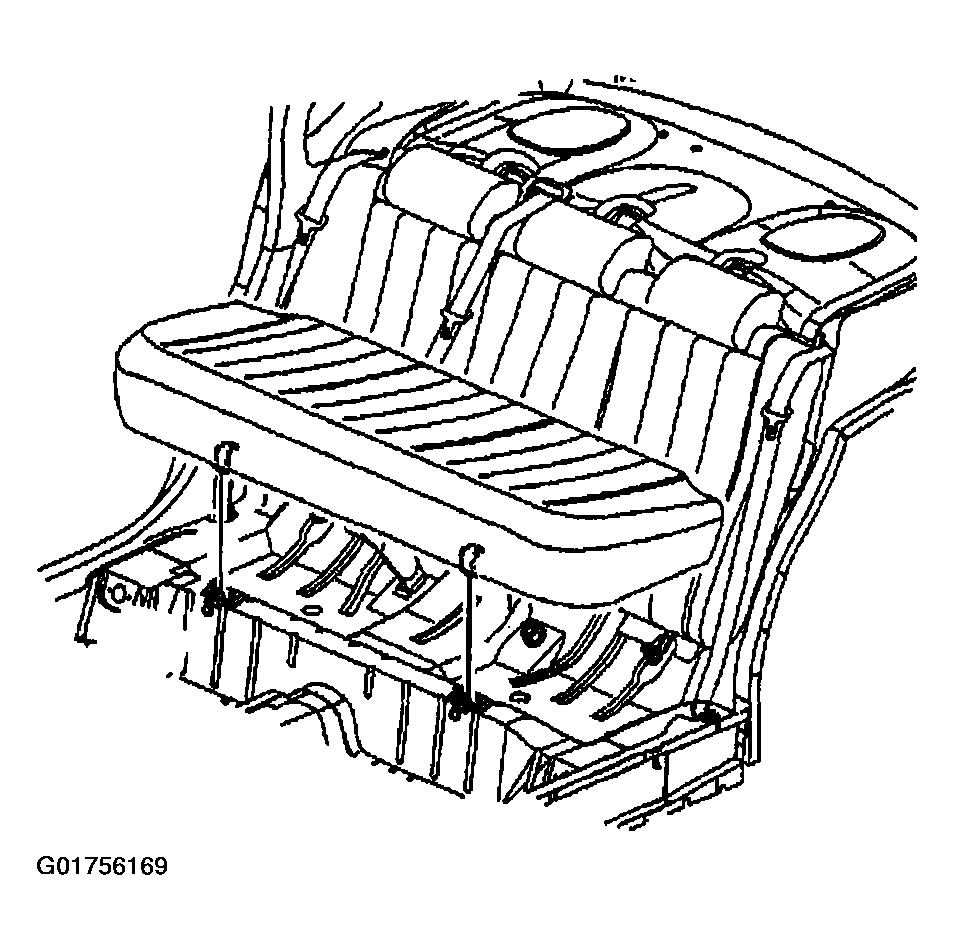

  2. Fig 1: Identifying Rear Seat Cushion Retainer Locations
    G01756169Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat cushion.
