Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat cushion frame to the front seat adjusters.
  2. Install the bolts to the bucket seat cushion frame to the front seat track adjusters.

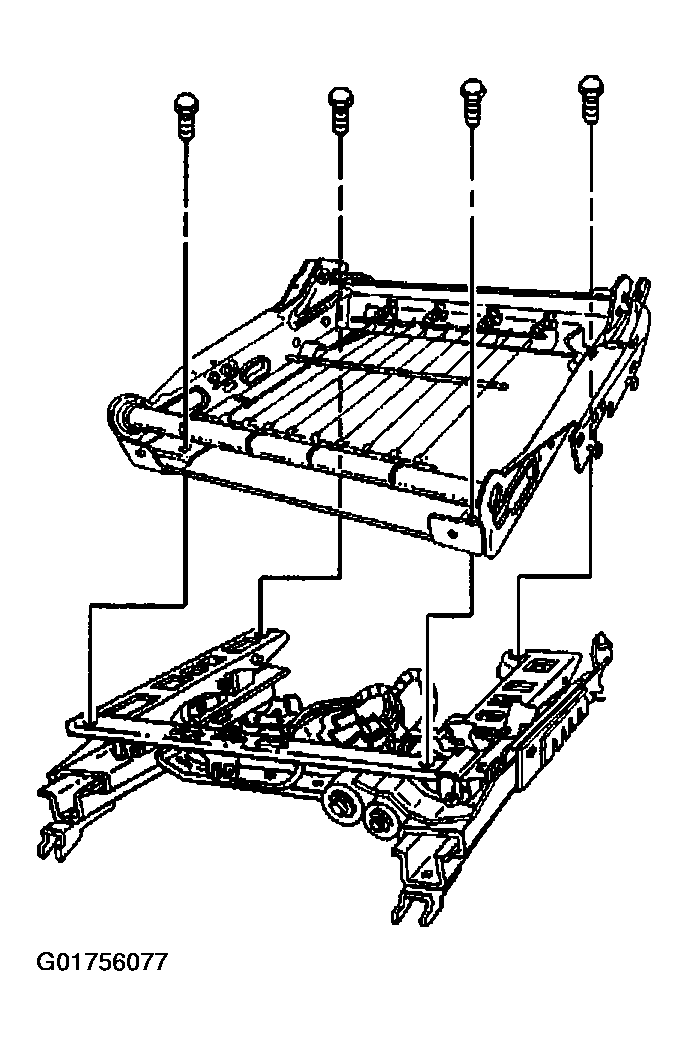

    Fig 1: Identifying Seat Cushion Frame-To-Seat Track Adjusters Bolts
    G01756077Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to the front split bench seat frame to the front seat track adjusters. Tighten the bolts to 25 N.m (18 lb ft).

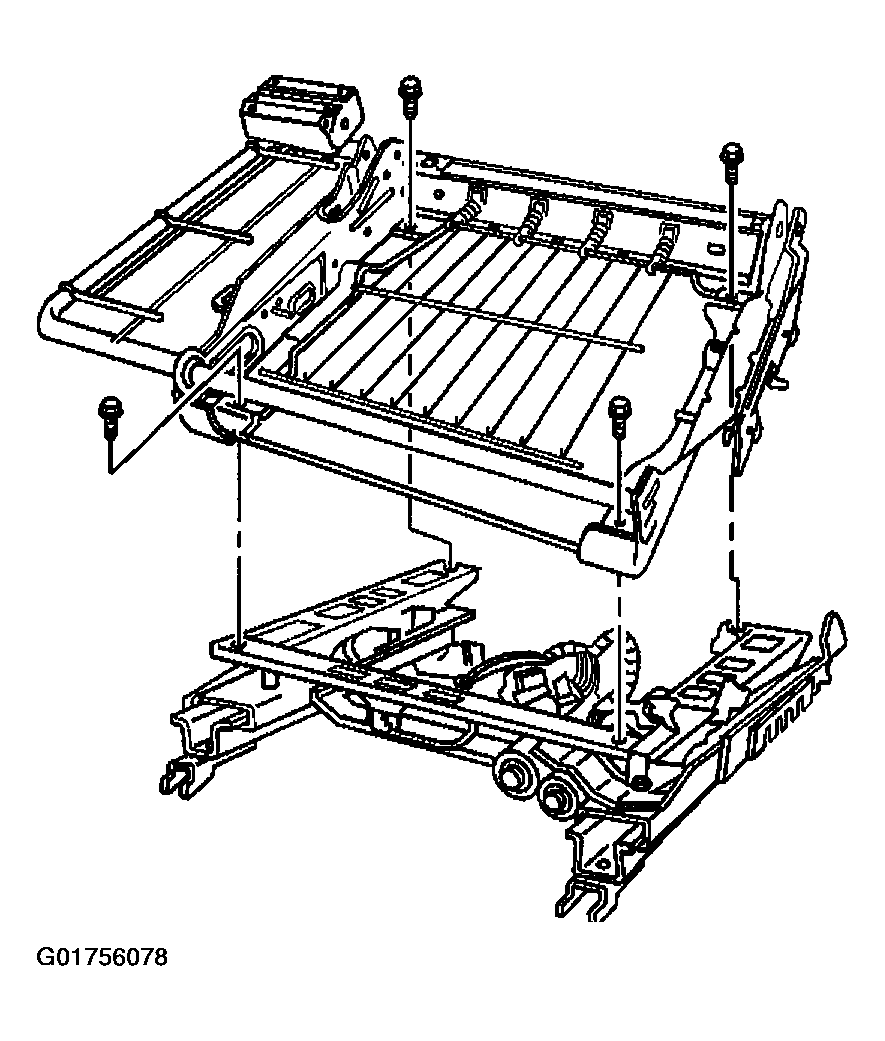

    4. Fig 2: Identifying Seat Frame-To-Seat Track Adjusters Bolts
    G01756078Courtesy of GENERAL MOTORS CORP.
  4. Install the front seat recliner assembly to the front seat cushion frame. Refer to Seat Back Recliner Replacement - Front .
  5. Install the front seat cushion to the front seat cushion frame. Refer to Seat Cushion Replacement - Front .
  6. Install the front seat cushion cover to the front seat cushion. Refer to Seat Cushion Cover Replacement - Front (Split Bench)  or Seat Cushion Cover Replacement - Front (Bucket Seat)
  7. Install the front seat back to the front seat. Refer to Seat Back Replacement - Front (Split Bench)  or Seat Back Replacement - Front (Bucket Seat)  .
  8. Install the front seat to the vehicle. Refer to the following procedures:
