Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Remove the hog rings from the rear seat cushion cover.

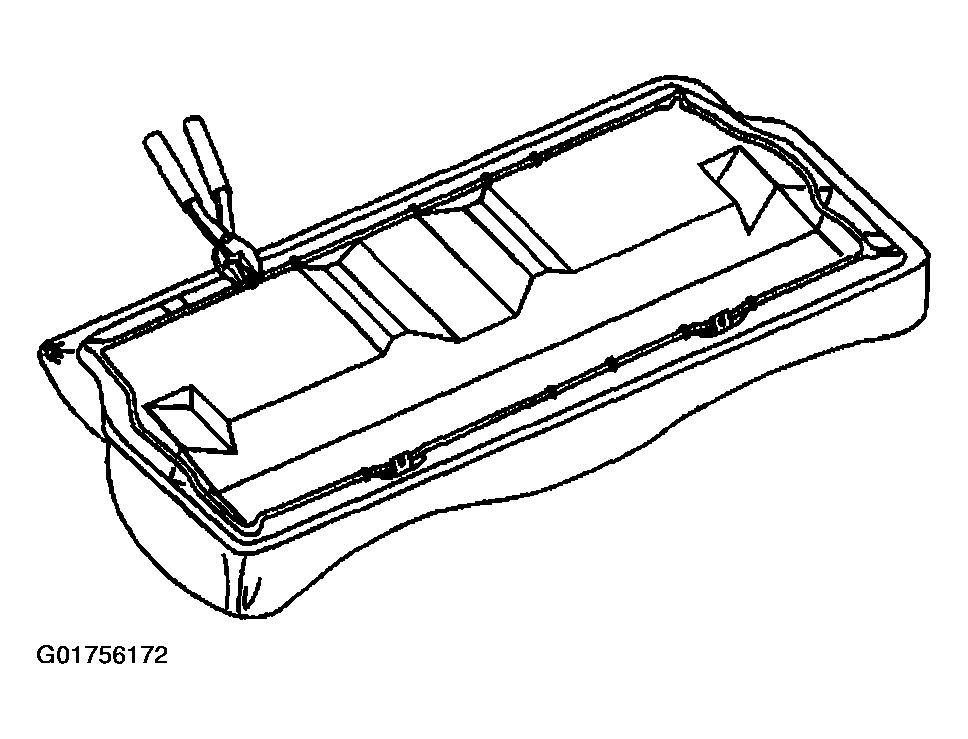

    Fig 1: Removing Rear Seat Cushion Cover Hog Rings
    G01756172Courtesy of GENERAL MOTORS CORP.
  3. Reach inside of the rear seat cushion cover in order to unfasten the hook and the loop retainers securing the rear seat cover to the pad.
  4. Remove the rear seat cushion cover from the pad.

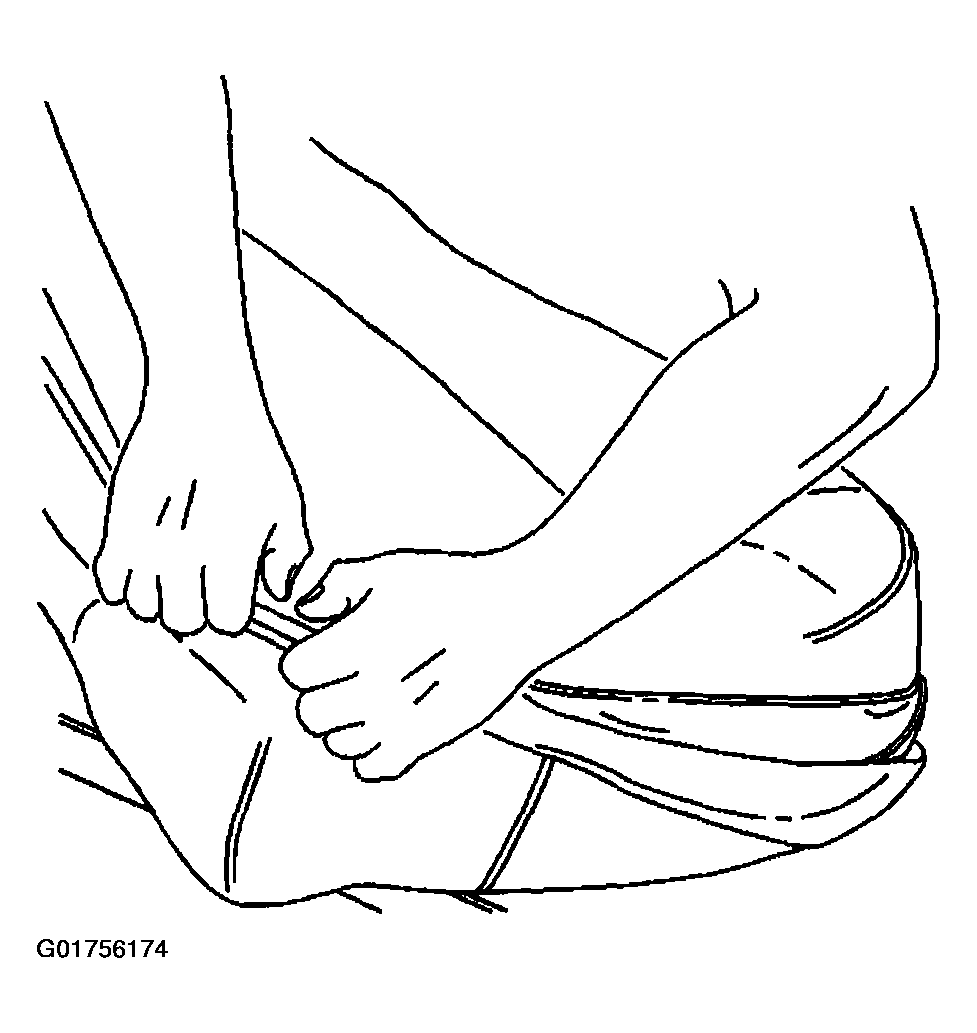

    Fig 2: Removing Rear Seat Cushion Cover From Pad
    G01756174Courtesy of GENERAL MOTORS CORP.
