Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear seat cushion cover to the pad.

Fig 1: Positioning Rear Seat Cushion Cover To Pad
Courtesy of GENERAL MOTORS CORP.
Align the alignment marks round on the rear seat cushion cover to the alignment marks slot on the pad.

Fig 2: Identifying Rear Seat Cushion Cover Front Alignment Marks
Courtesy of GENERAL MOTORS CORP.
Pull the rear seat cushion cover over the pad, aligning the hook and the loop retainers.

Fig 3: Installing Rear Seat Cushion Cover Over Pad
Courtesy of GENERAL MOTORS CORP.

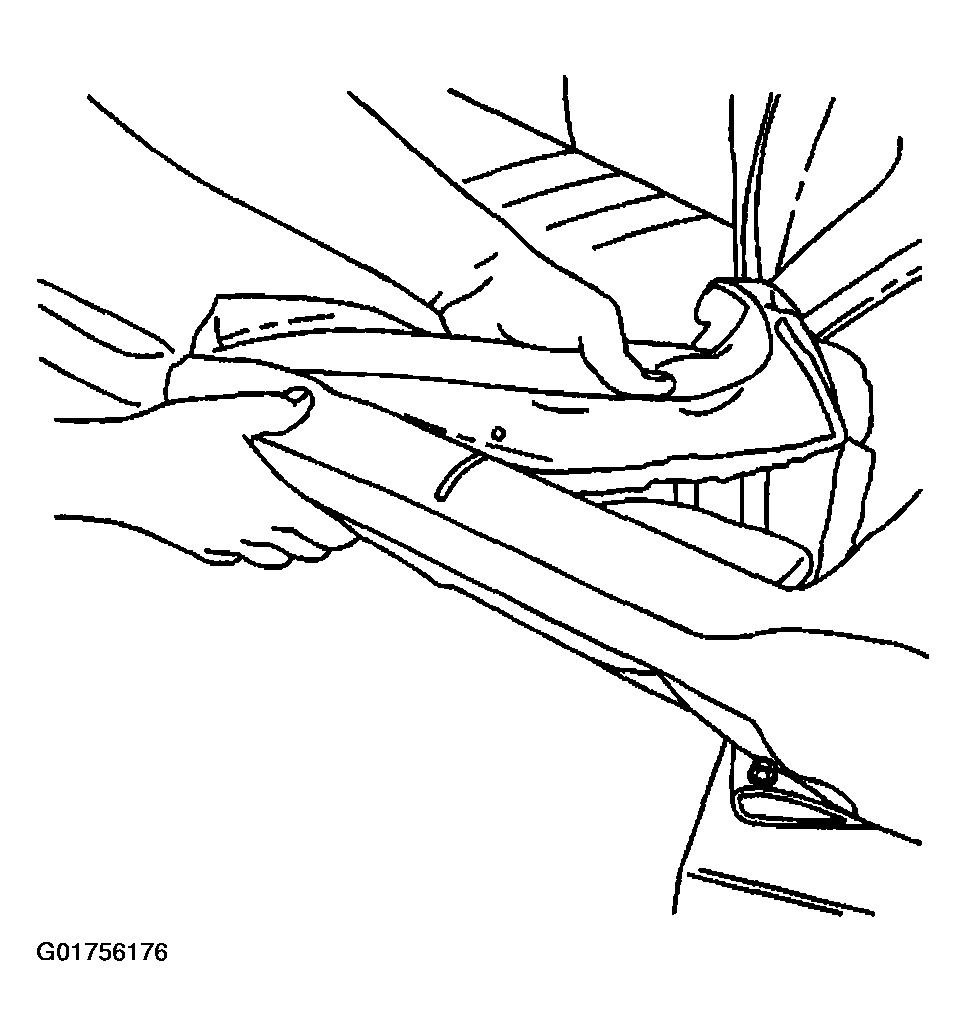

Pull the rear seat cushion cover over the pad and pull over and under the sides.
Use firm hand pressure in order to fasten the hook and the loop retainers, securing the rear seat cushion cover to the pad.

Fig 4: Securing Rear Seat Cushion Cover To Pad
Courtesy of GENERAL MOTORS CORP.
Align the alignment marks on the rear seat cushion cover to the alignment marks on the pad, on the back side.

Fig 5: Identifying Rear Seat Cushion Cover Rear Alignment Marks
Courtesy of GENERAL MOTORS CORP.

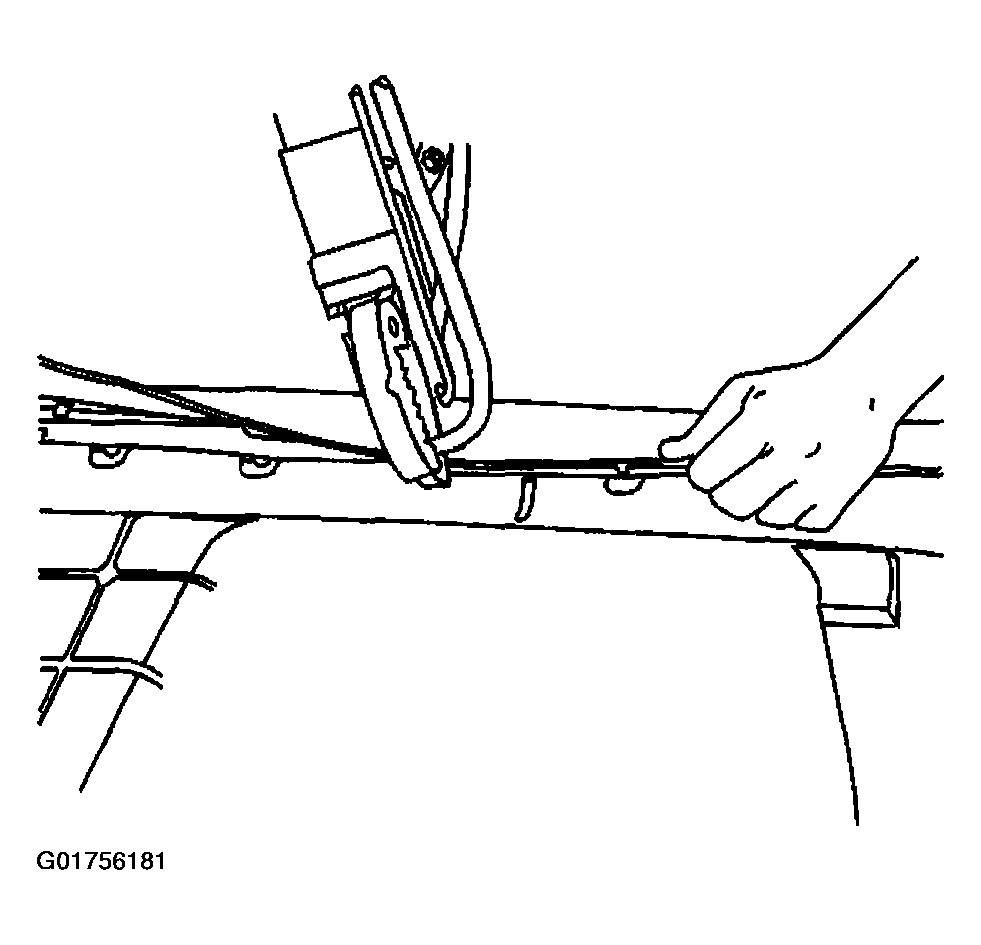

Install the hog rings to the rear seat cushion cover.

Fig 6: Installing Rear Seat Cushion Cover Hog Rings

Courtesy of GENERAL MOTORS CORP.

Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
