Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Remove the rear seat back nuts from the child seat latch bracket.

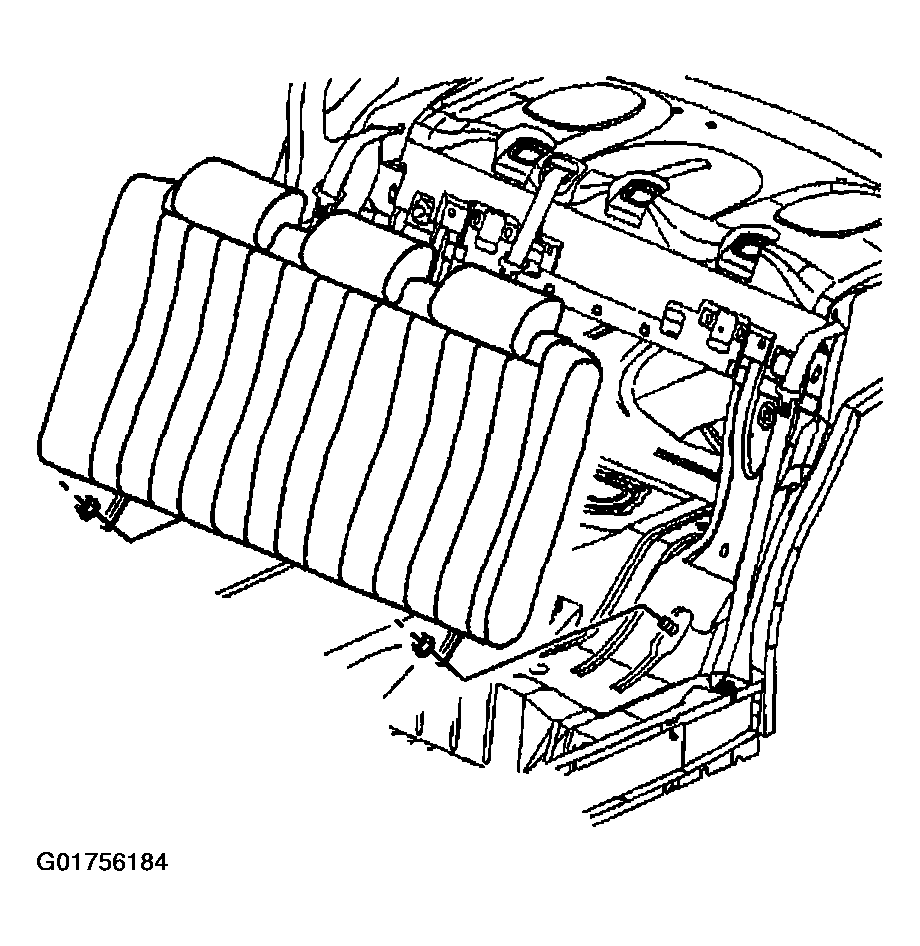

    Fig 1: Identifying Rear Seat Back Nuts
    G01756184Courtesy of GENERAL MOTORS CORP.
  3. Grasp the bottom of the rear seat back and lift upward to disengage offsets on the upper frame bar from the hangers.
  4. Remove the rear seat back from the vehicle.

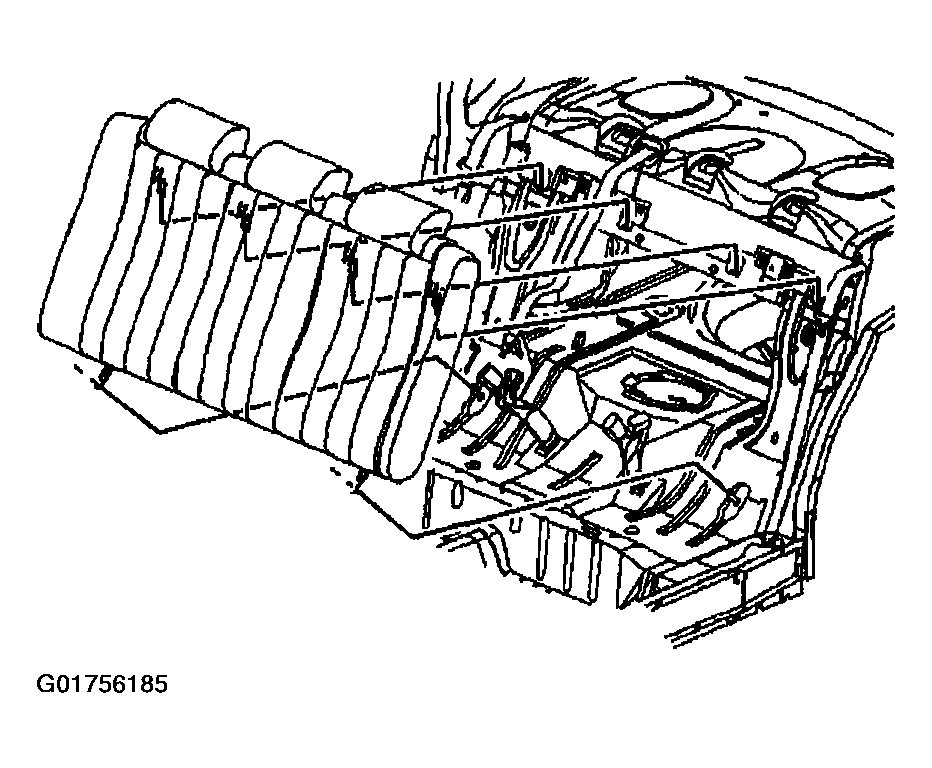

    Fig 2: Removing Rear (Non-Folding) Seat Back
    G01756185Courtesy of GENERAL MOTORS CORP.
