Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back to the vehicle.
    2. Fig 1: Installing Rear (Non-Folding) Seat Back
    G01756186Courtesy of GENERAL MOTORS CORP.
  2. Hook the seat back upper frame to the hangers on the rear shelf.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear seat back nuts to the latch bracket. Tighten the nuts to 10 N.m (89 lb in).

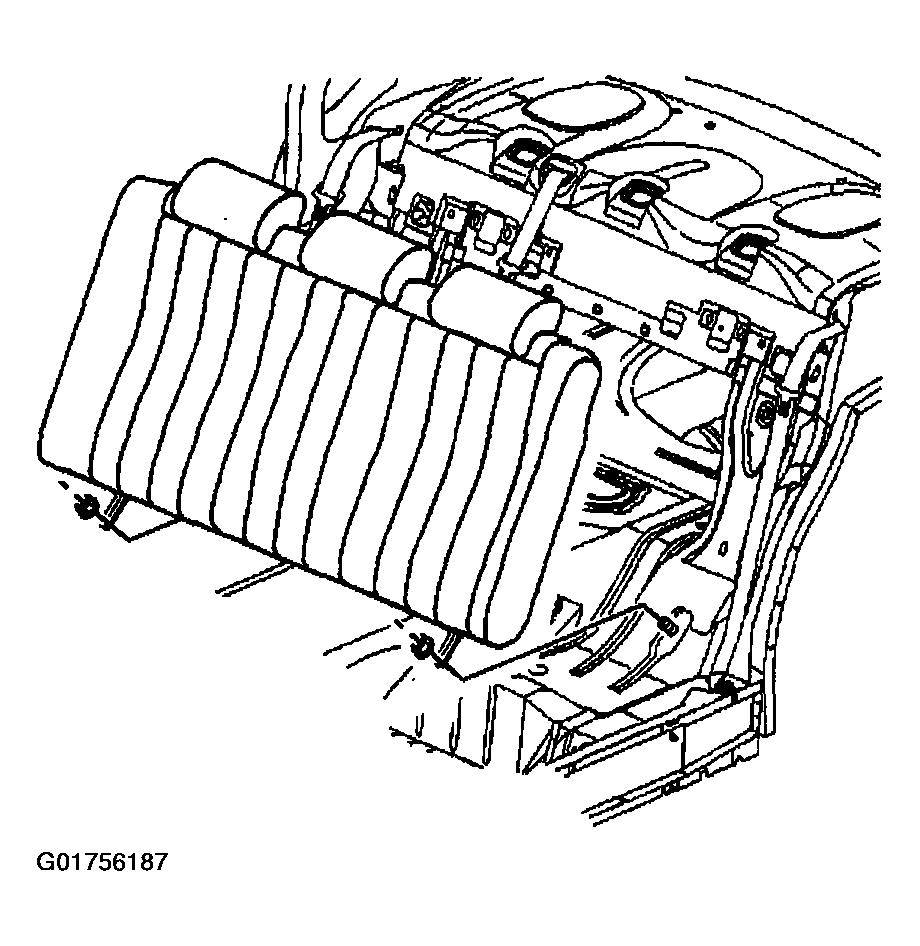

    4. Fig 2: Identifying Rear Seat Back Nuts
    G01756187Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
