Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back to the vehicle.
  2. Reposition the seat belts to the rear seat back.
    NOTE: Refer to FASTENER NOTICE .
  3. Apply a thread sealant, GM P/N USA 12345382 Canada 10953489, Loctite 242, Permatex 24200 to the threads of the bolts (2) and also the stud for the latch bracket nut.

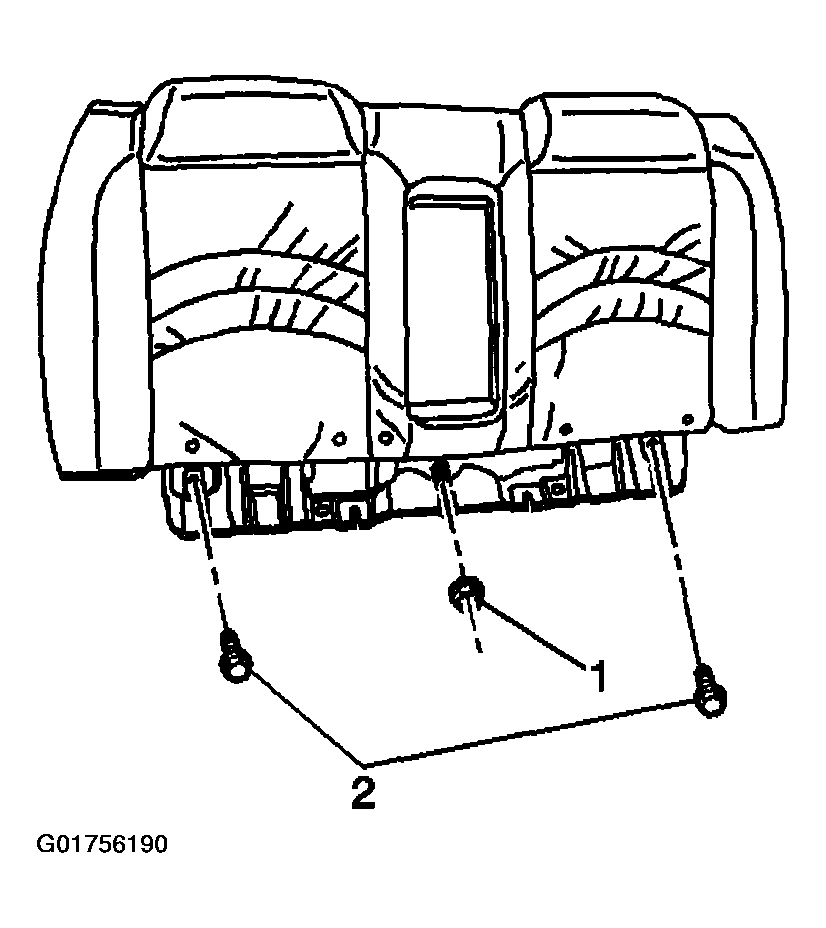

    4. Fig 1: Identifying Child Rear Seat Latch Bracket Nuts & Bolts
    G01756190Courtesy of GENERAL MOTORS CORP.
  4. Install the child seat latch bracket nut (1).

    Install the child seat latch bracket bolts (2) to each end of the latch bracket. Tighten the bolts and bracket nut to 42 N.m (31 lb ft).

  5. Install the rear center seat belts. Refer to SEAT BELT REPLACEMENT - CENTER REAR .
  6. Fold the rear seat back cushions down.
  7. Install the rear seat latches to the rear seat back.

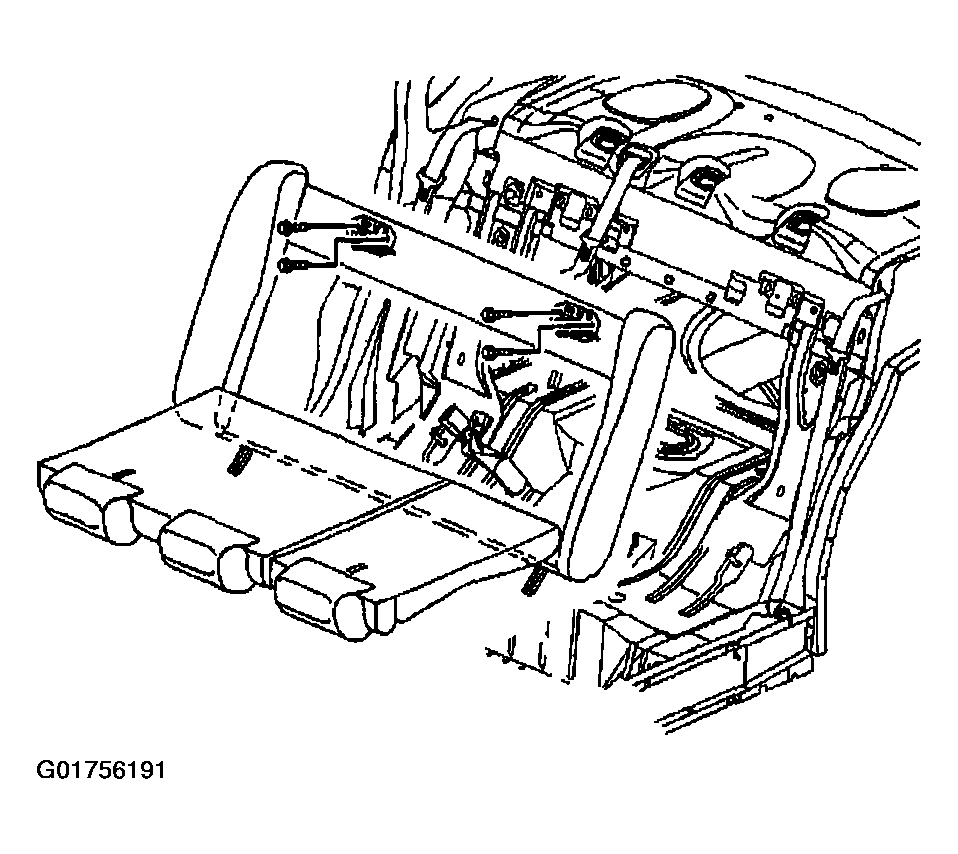

    8. Fig 2: Identifying Rear Seat Latches & Bolts
    G01756191Courtesy of GENERAL MOTORS CORP.
  8. Install the bolts to the rear seat latches. Tighten the bolts to 6 N.m (53 lb in).
  9. Fold the rear seat back cushions up.
  10. Inspect the rear seat for proper operation.
  11. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
