Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat back on the front seat cushion.
    Fig 1: Positioning Front Seat Back On Front Seat Cushion
    G01756085Courtesy of GENERAL MOTORS CORP.
  2. Route the lumbar heated seat cable and the side air bag wire harness to the front seat cushion/frame area.

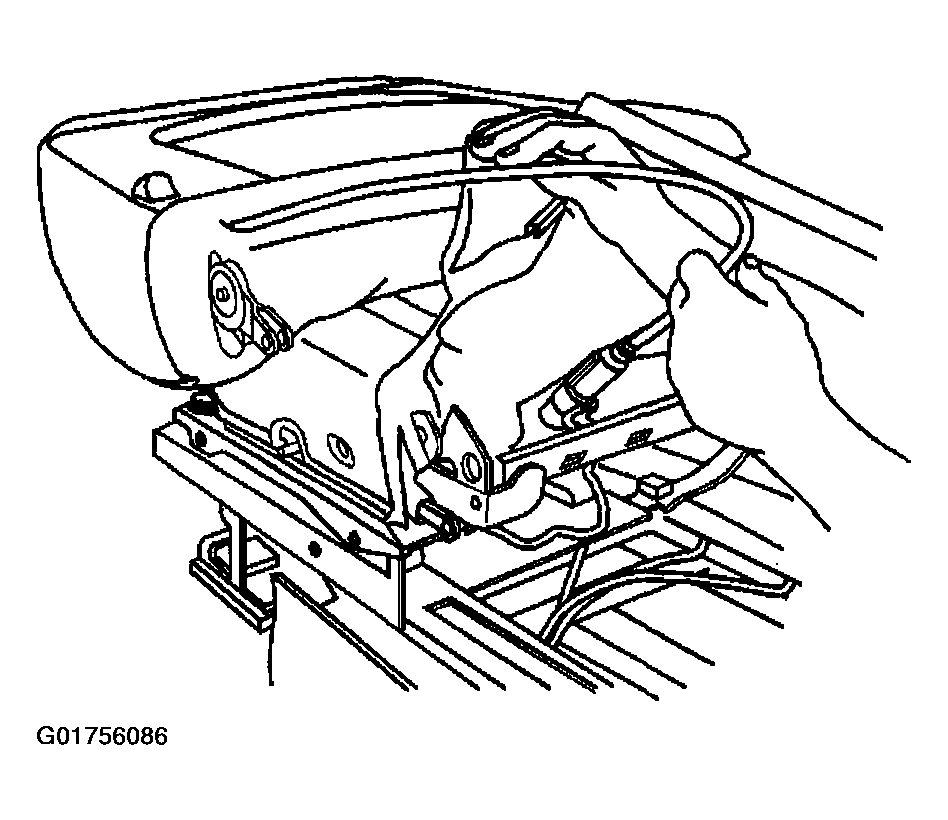

    Fig 2: Identifying Heated Seat Cable & Side Air Bag Wire Harness
    G01756086Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector for the heated seat, if equipped.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the front seat back hinge bolts (1) to the seat back hinge. Tighten the bolts to 25 N.m (18 lb ft).

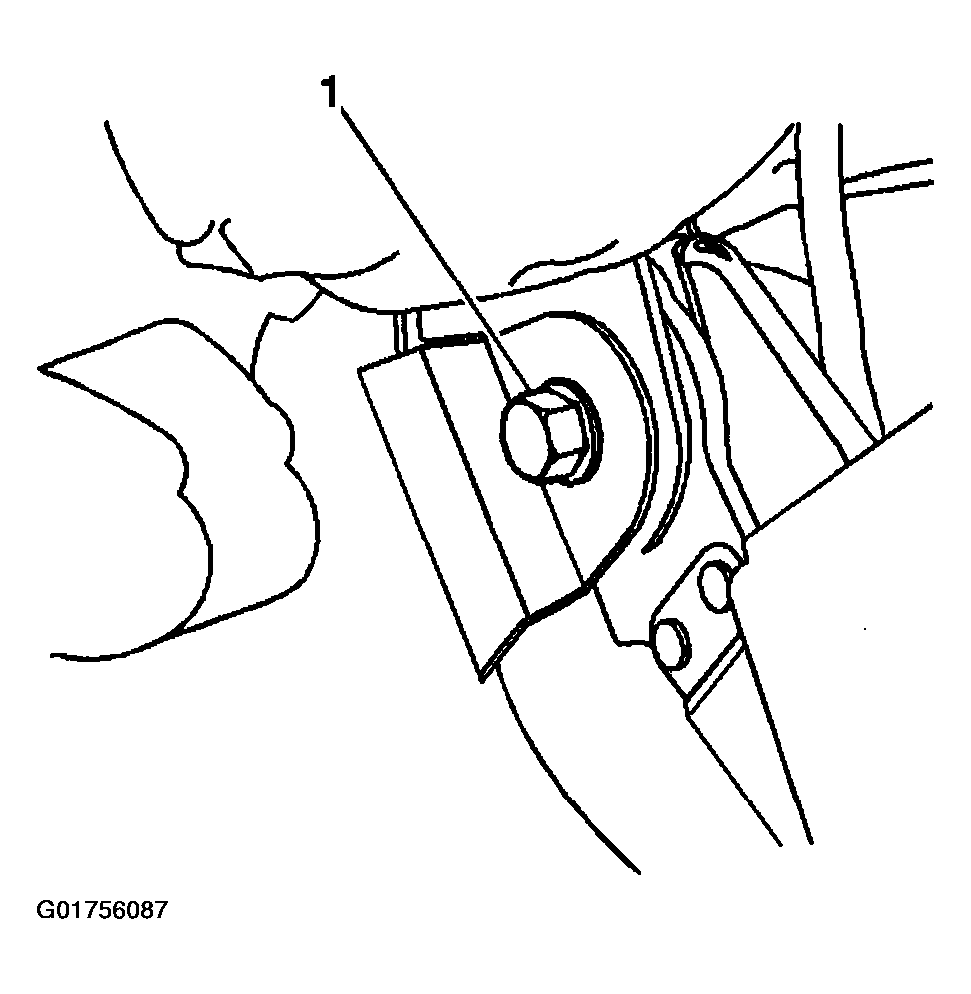

    Fig 3: Identifying Front Seat Back Hinge Bolts
    G01756087Courtesy of GENERAL MOTORS CORP.
  5. Install new front seat back recliner roll pins to the seat back hinge.

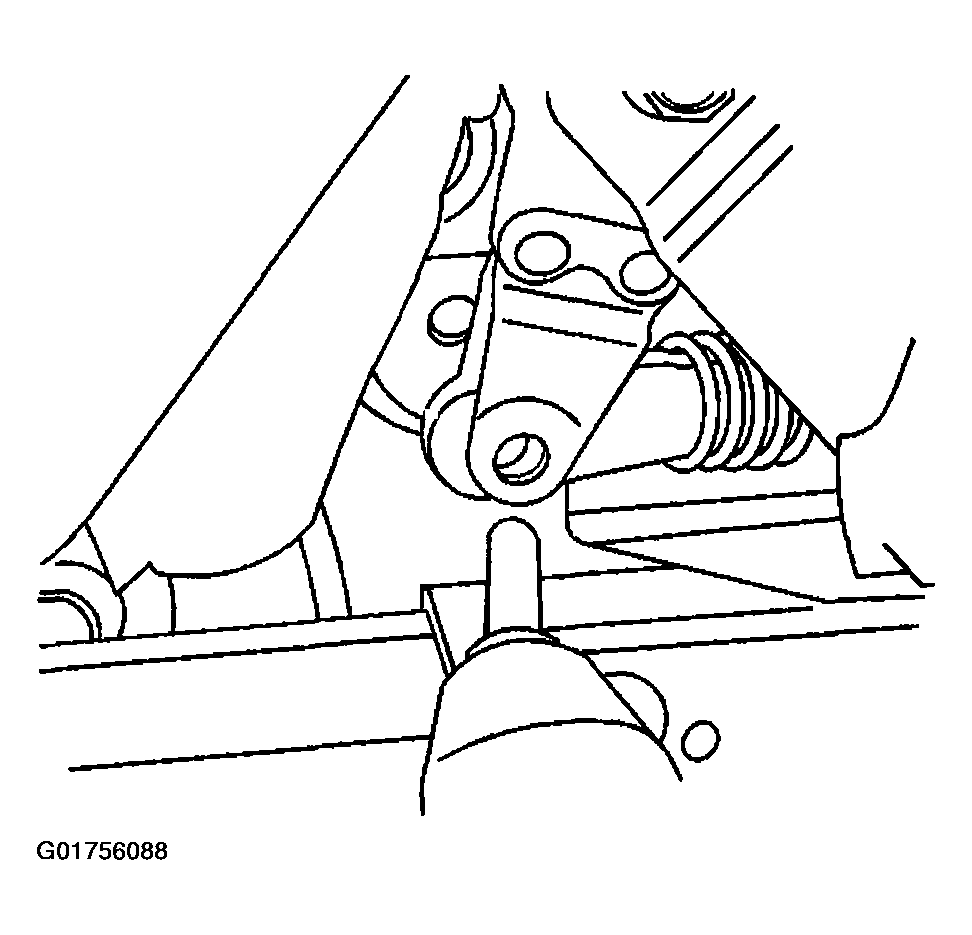

    Fig 4: Identifying Front Seat Back Recliner Hinge Roll Pins
    G01756088Courtesy of GENERAL MOTORS CORP.
  6. Connect the J-hook retainers at the rear of the front seat cushion.
  7. Connect the J-hook retainers at each end of the front seat cushion.

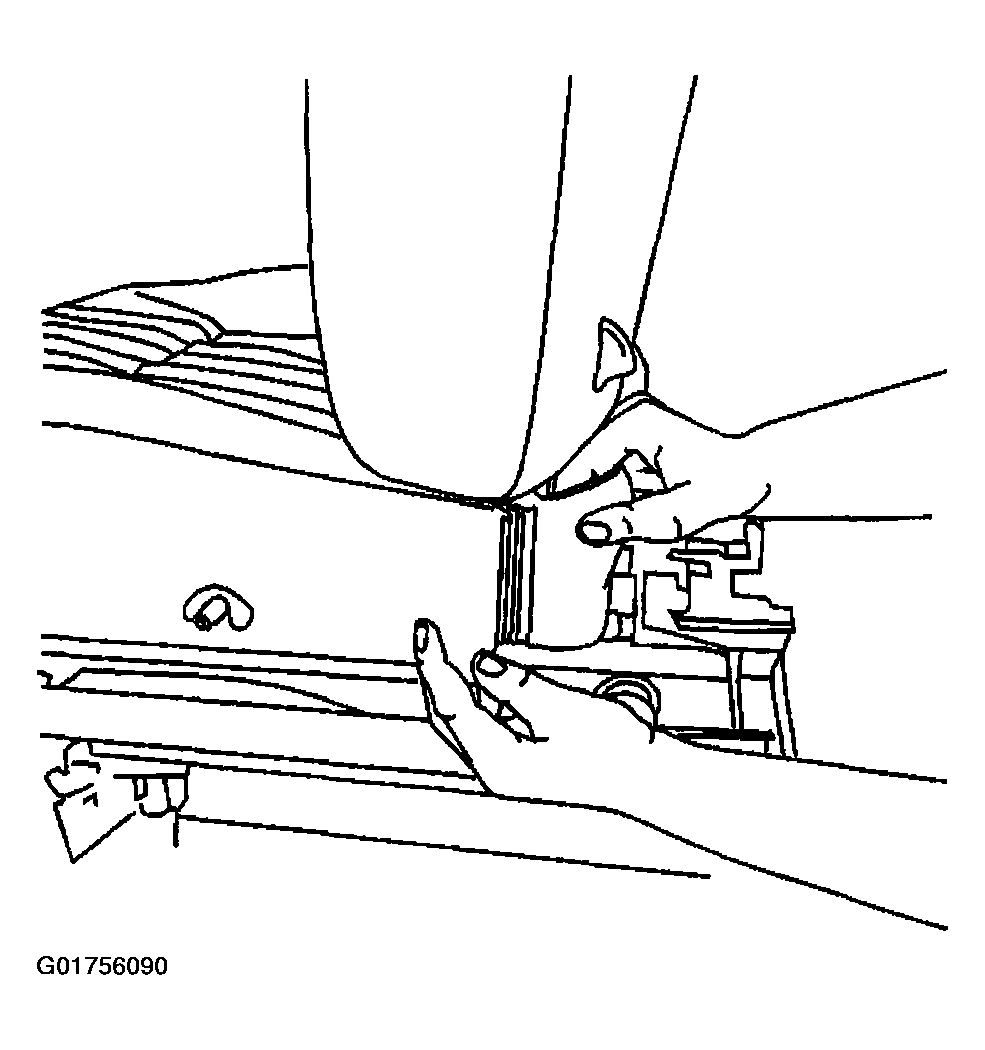

    8. Fig 5: Identifying Location Of Front Seat Cushion J-Hook Retainers
    G01756090Courtesy of GENERAL MOTORS CORP.
  8. Install the front seat riser trim cover. Refer to Trim Panel Replacement - Front Seat .
  9. Install the front seat armrest in the front seat. Refer to Armrest Replacement - Front Seat .
  10. Install the front center seat belt buckle to the front seat. Refer to SEAT BELT BUCKLE REPLACEMENT - CENTER FRONT .
  11. Inspect the front seat back for proper operation.
  12. Install the front seat in the vehicle. Refer to Seat Replacement - Split Bench .
