Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to the following procedures:
  2. Seat Replacement - Front Bucket
  3. Seat Replacement - Split Bench .
  4. Pull back the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  5. Pull back the front seat cushion cover in order to expose the front seat recliner assembly. Refer to Seat Cushion Cover Replacement - Front (Split Bench)  or Seat Cushion Cover Replacement - Front (Bucket Seat)  .
  6. Remove the roll pins from the front seat recliner assembly.

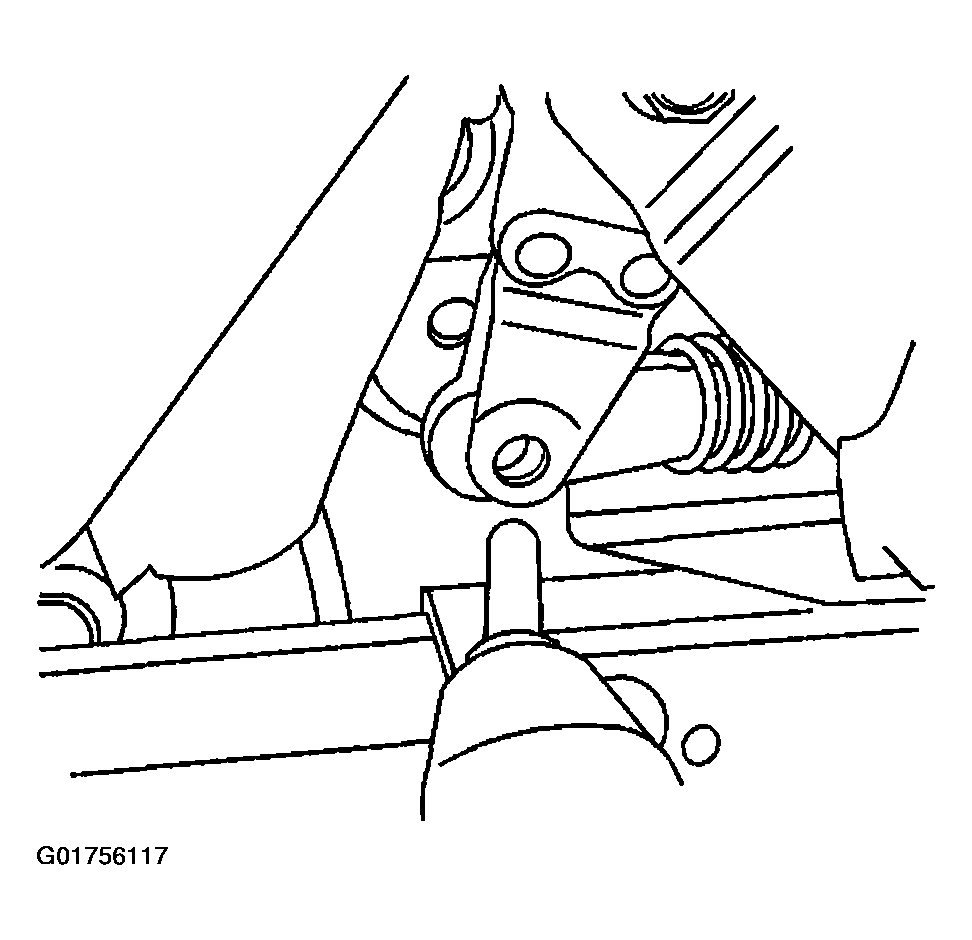

    7. Fig 1: Identifying Front Seat Recliner Assembly Roll Pins
    G01756117Courtesy of GENERAL MOTORS CORP.
  7. Remove the front seat recliner assembly from the front seat cushion frame.

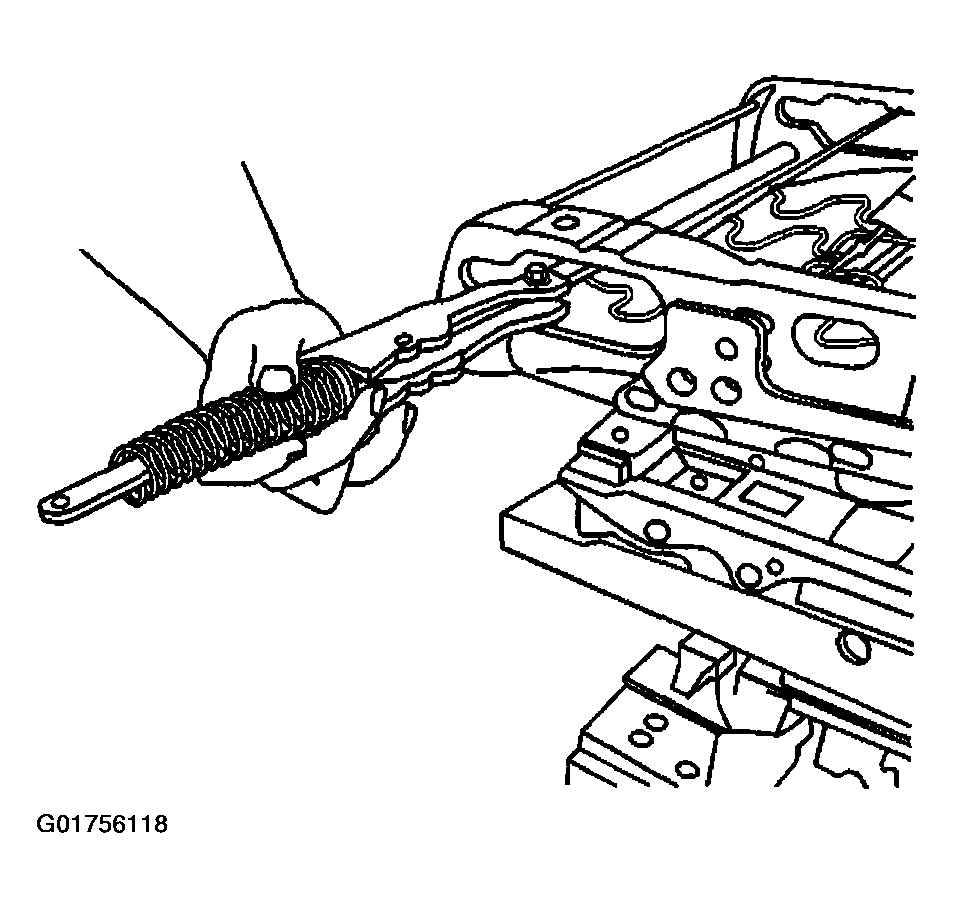

    Fig 2: Removing Front Seat Recliner Assembly
    G01756118Courtesy of GENERAL MOTORS CORP.
