Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat recliner assembly to the front seat cushion frame.

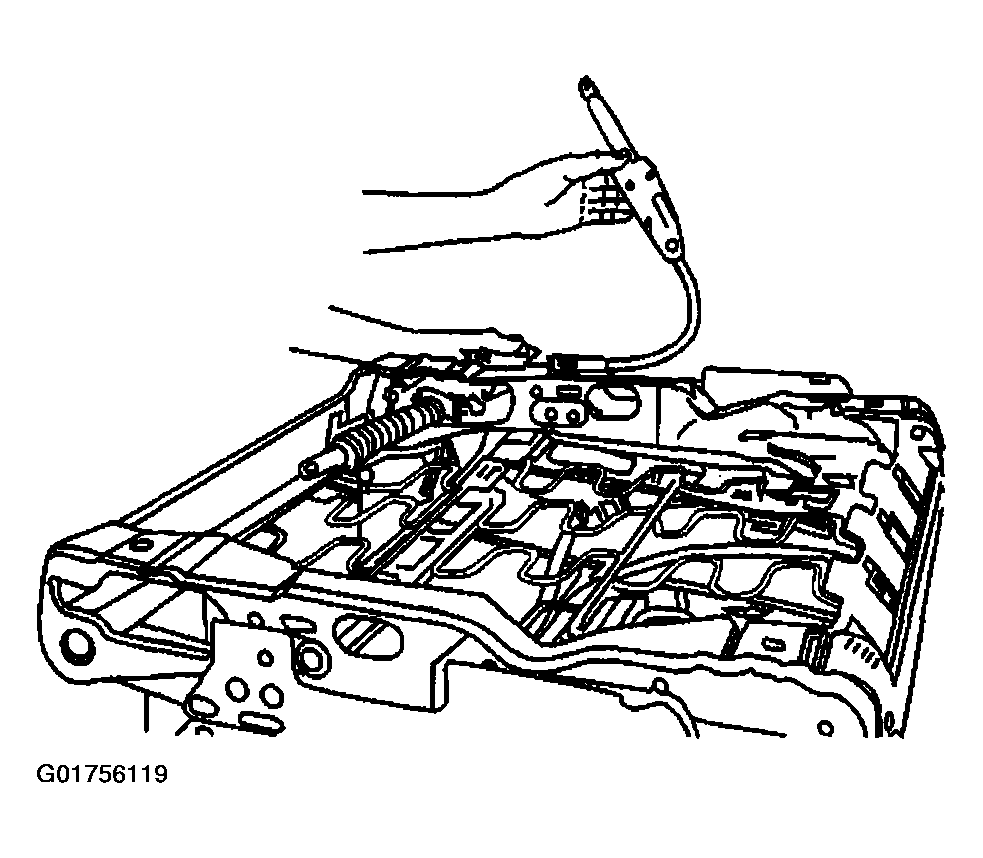

    Fig 1: Installing Front Seat Recliner Assembly
    G01756119Courtesy of GENERAL MOTORS CORP.

    Important:  Install NEW roll pins.

  2. Install the new roll pins to the front seat recliner assembly.
  3. Pull back the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front (Split Bench)  or Seat Cushion Cover Replacement - Front (Bucket Seat)  .
  4. Pull back the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  5. Install the front seat to the vehicle. Refer to the following procedures:

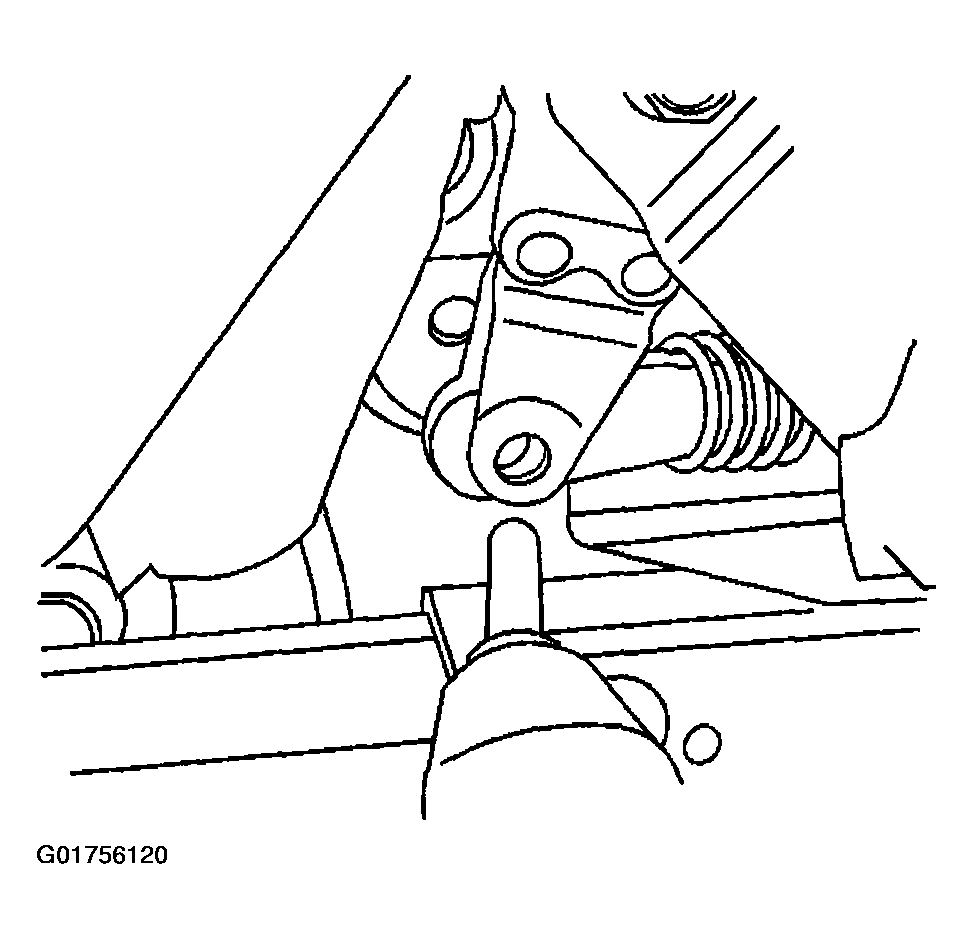

    Fig 2: Identifying Front Seat Recliner Assembly Roll Pins
    G01756120Courtesy of GENERAL MOTORS CORP.
