Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the snap-ring retainer to the base of the front seat back recliner handle.

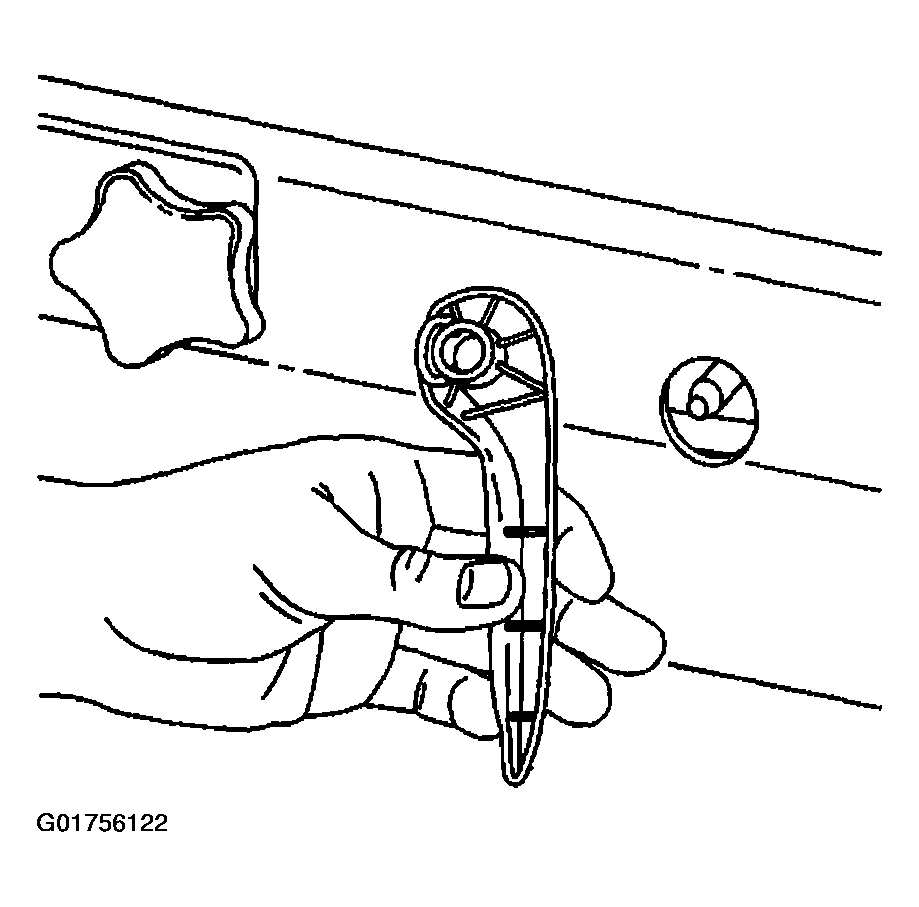

    Fig 1: Identifying Front Seat Back Recliner Handle Snap-Ring Retainer
    G01756122Courtesy of GENERAL MOTORS CORP.
  2. Install the front seat back recliner handle to the front seat, pressing into place until fully seated.
    Fig 2: Installing Front Seat Back Recliner Handle
    G01756123Courtesy of GENERAL MOTORS CORP.
