Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the front seat back pad from the seat frame.

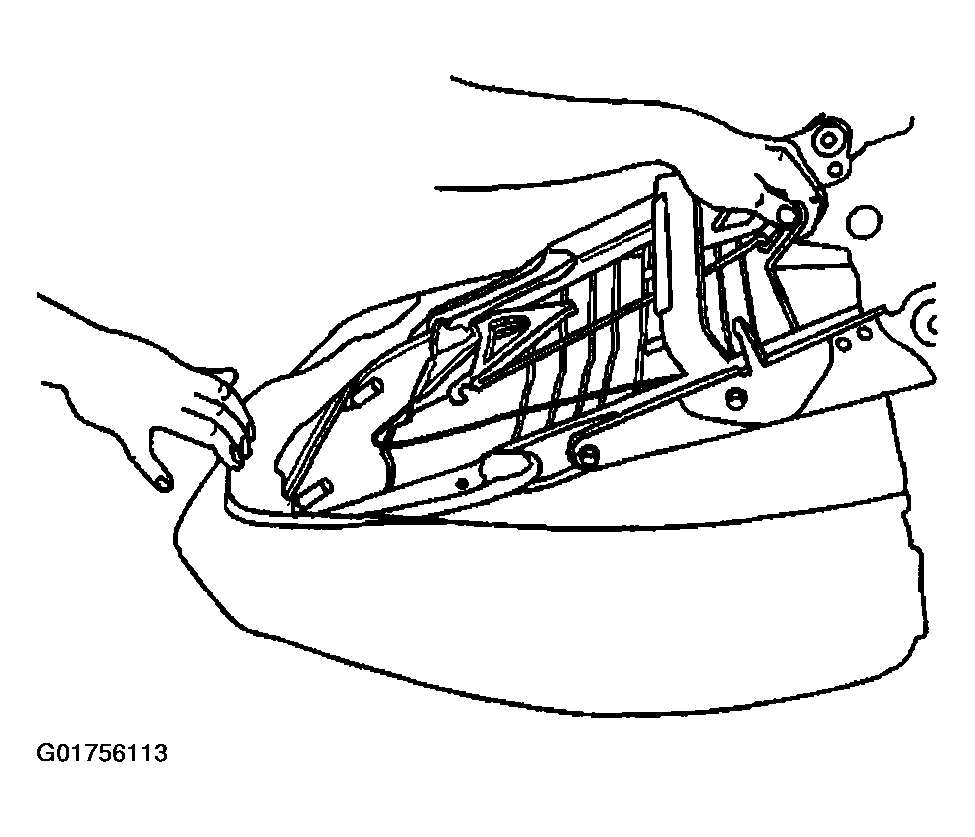

    Fig 1: Identifying Front Seat Back Pad & Seat Frame
    G01756113Courtesy of GENERAL MOTORS CORP.
