Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fold down seat backs on the rear seat back frame.

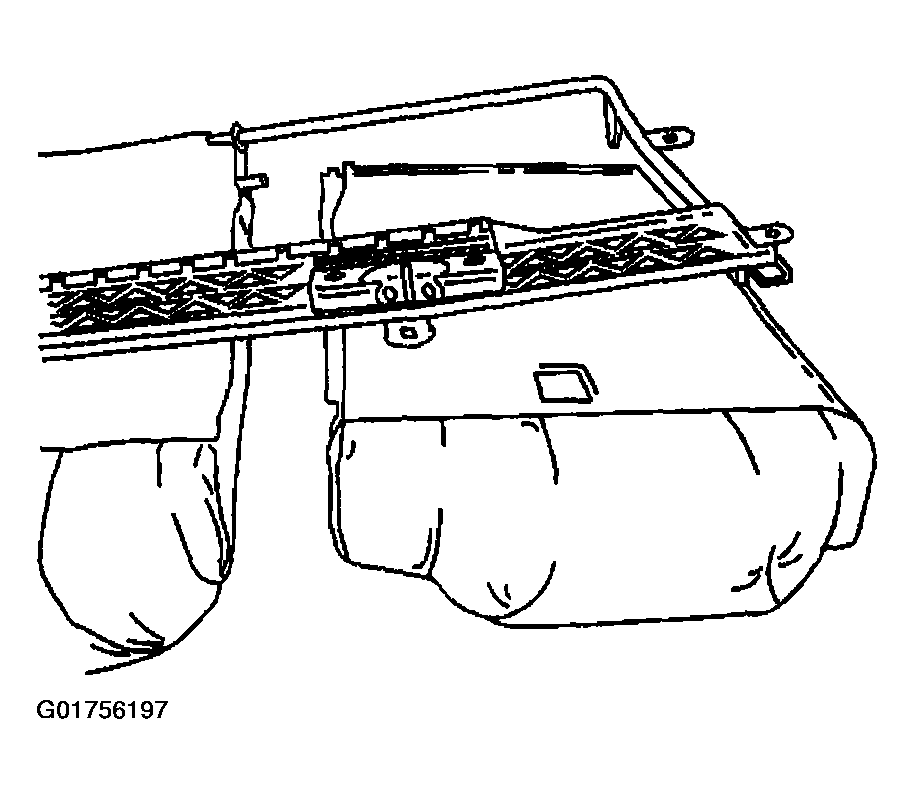

    Fig 1: Positioning Fold Down Seat Backs On Rear Seat Back Frame
    G01756197Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the split folding seat back frame bolts (1). Tighten the bolts to 10 N.m (89 lb in).
    3. Fig 2: Identifying Fold Down Seat Back Bolts
    G01756198Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat back bolsters. Refer to Seat Back Bolster Replacement - Rear Split Folding .
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding)  .
