Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding)  .
  2. Remove the rear seat armrest, if equipped. Refer to Armrest Replacement - Rear Seat .
  3. Remove the hog rings from the rear seat back cover.

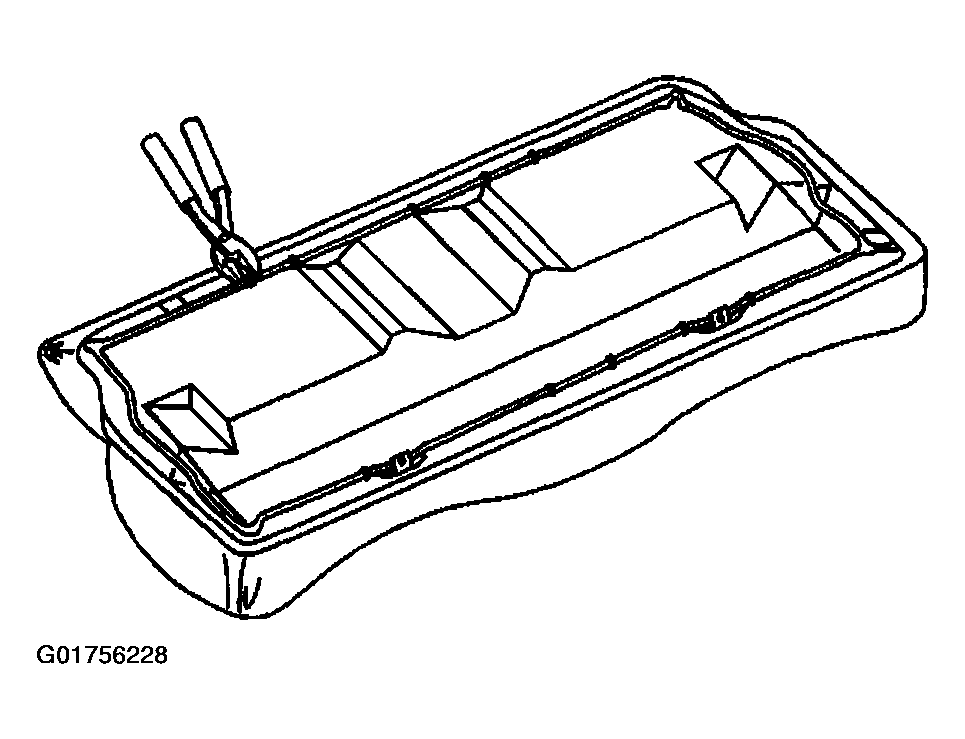

    Fig 1: Removing Rear Seat Back Cover Hog Rings
    G01756228Courtesy of GENERAL MOTORS CORP.
  4. Reach inside of the rear seat back cover in order to unfasten the hook and the loop retainers securing the rear seat back cover to the pad.
  5. Remove the rear seat back cover from the pad.

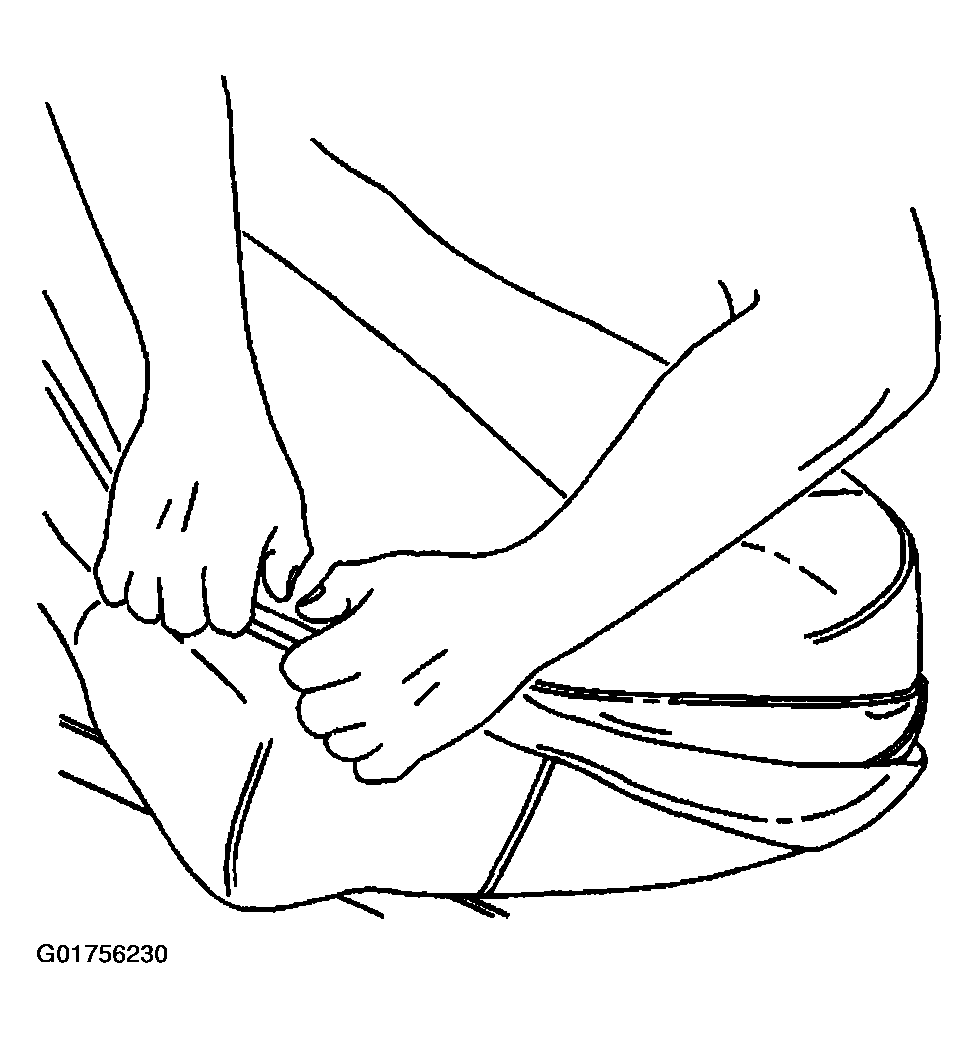

    Fig 2: Removing Rear Seat Back Cover From Pad
    G01756230Courtesy of GENERAL MOTORS CORP.
