Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear seat back cover to the pad.

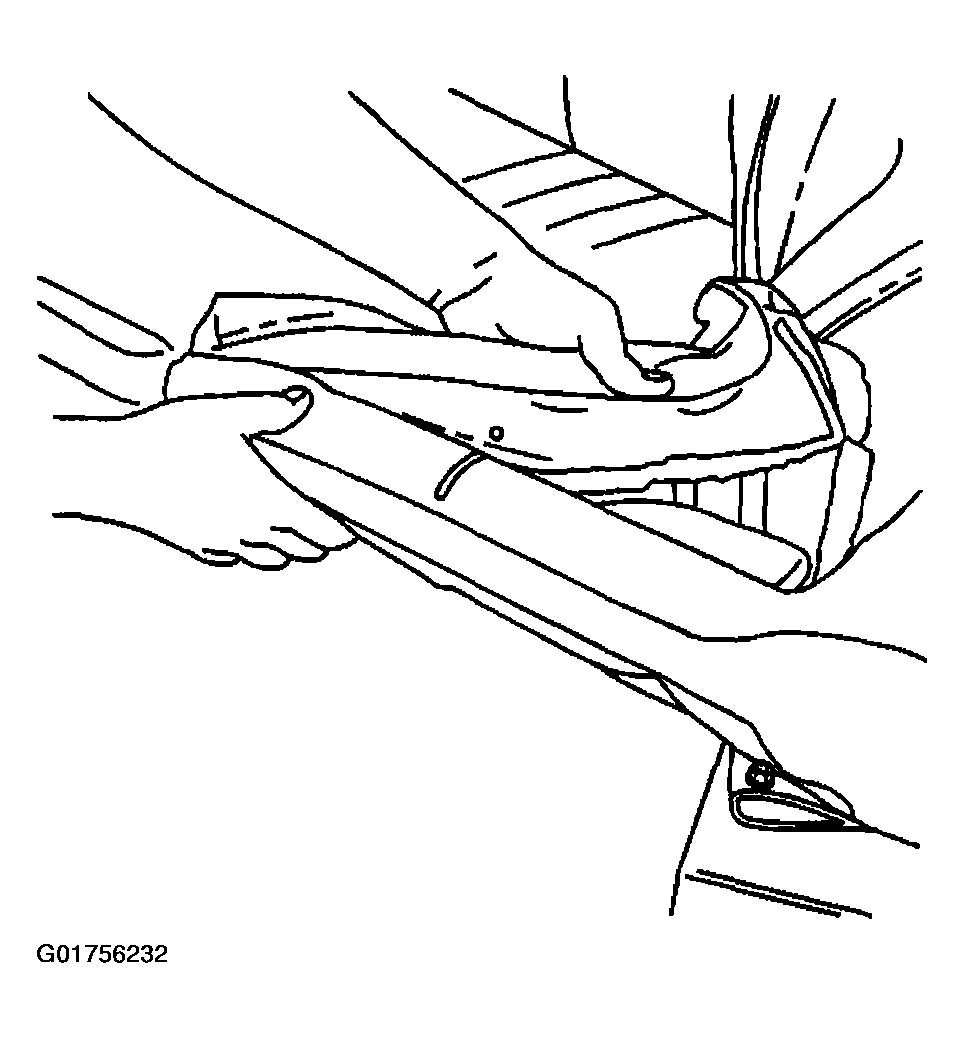

Fig 1: Positioning Rear Seat Back Cover To Pad
Courtesy of GENERAL MOTORS CORP.
Align the alignment marks on the rear seat back cover to the alignment marks on the pad.

Fig 2: Identifying Rear Seat Back Cover Front Alignment Marks
Courtesy of GENERAL MOTORS CORP.
Pull the rear seat back cover the pad. Align the hook and the loop retainers.

Fig 3: Pull Rear Seat Back Cover Onto Pad
Courtesy of GENERAL MOTORS CORP.
Pull the rear seat back cover over the pad and pull over and under the edge.
Use firm hand pressure in order to fasten the hook and the loop retainers, securing the rear seat back cover to the pad.

Fig 4: Securing Rear Seat Back Cover To Pad
Courtesy of GENERAL MOTORS CORP.
Align the alignment marks on the rear seat back cover to the alignment marks on the pad, on the back side.

Fig 5: Identifying Rear Seat Back Cover Back Alignment Marks
Courtesy of GENERAL MOTORS CORP.
Install the hog rings to the rear seat back cover.

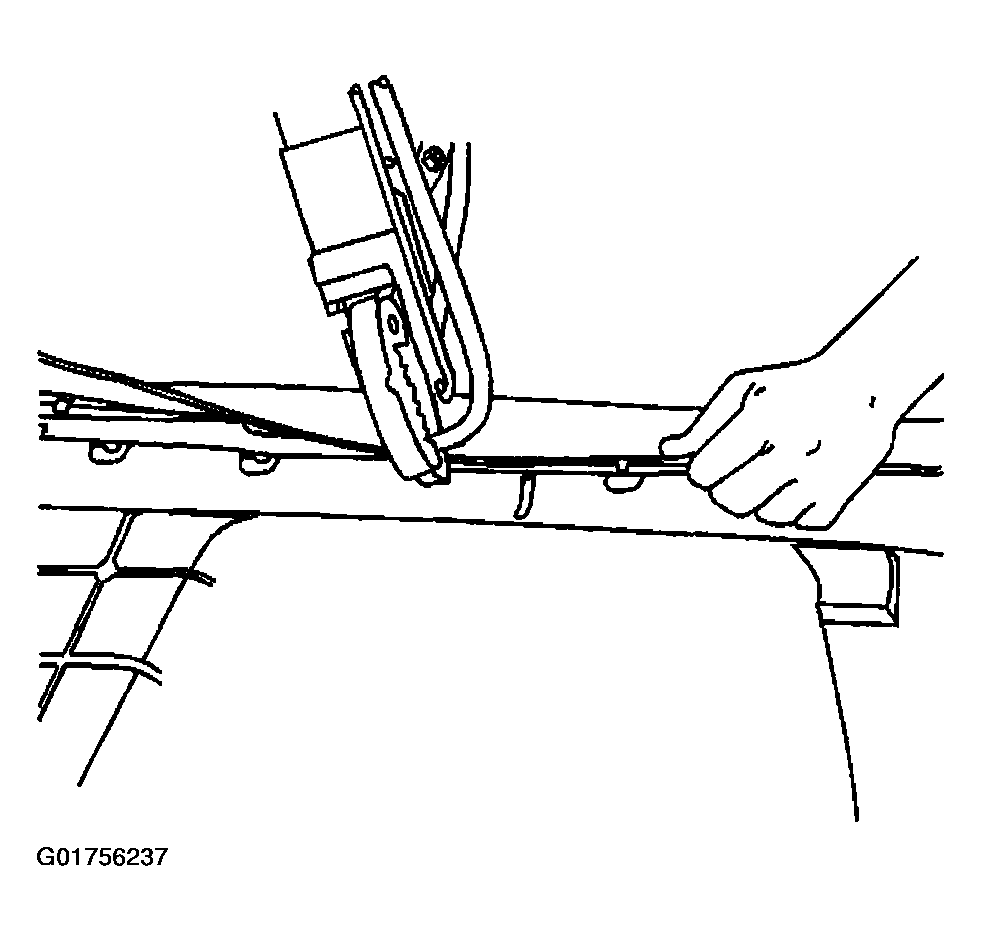

Fig 6: Installing Rear Seat Back Cover Hog Rings

Courtesy of GENERAL MOTORS CORP.

Install the rear seat armrest, if equipped. Refer to Armrest Replacement - Rear Seat .
Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding) or Seat Back Replacement - Rear (Folding) .
