Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover to the rear seat back by pulling the cover down and over the pad.
    2. Fig 1: Installing Rear Seat Back Cover
    G01756218Courtesy of GENERAL MOTORS CORP.
  2. Reach inside of the right rear seat back cover and reposition the release pullstrap through the cover.
  3. Align the hook and the loop retainers.
  4. Use firm hand pressure in order to fasten the hook and the loop retainers, securing the rear seat back cover to the pad.

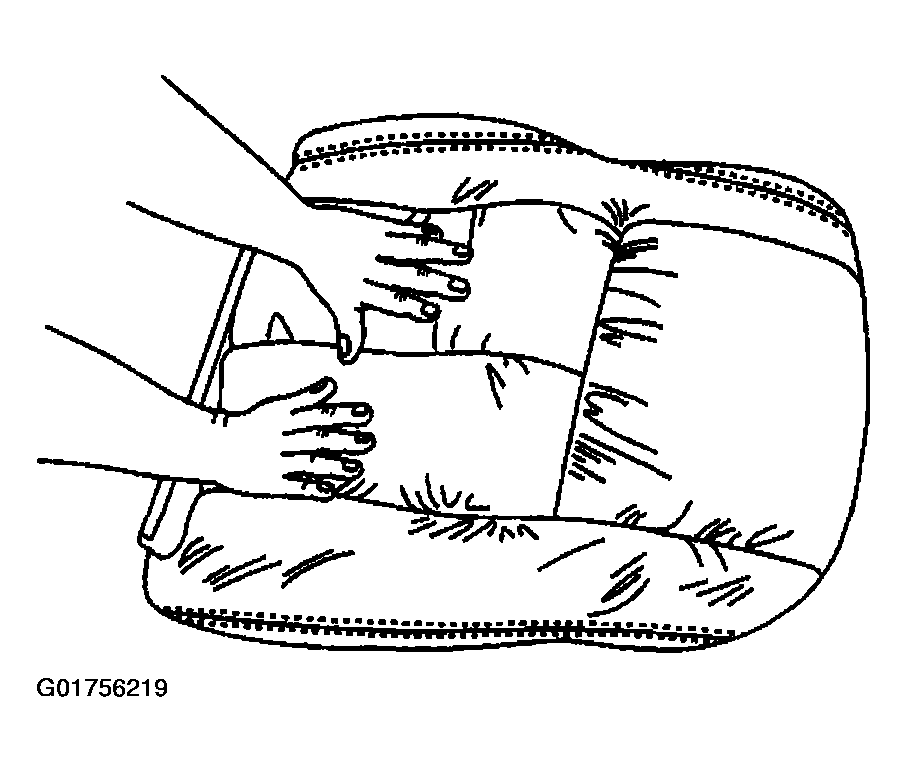

    5. Fig 2: Securing Rear Seat Back Cover To Pad
    G01756219Courtesy of GENERAL MOTORS CORP.
  5. Install the folding armrest, if equipped. Refer to Armrest Replacement - Rear Seat .
  6. Reposition the cable on the seat back.
    7. Fig 3: Reposition Cable On Seat Back
    G01756220Courtesy of GENERAL MOTORS CORP.
  7. Reposition the seat trim flaps.
  8. Install new staples to the seat trim flaps.
  9. Return the seat back trim material to the original position.
  10. Fasten the J-hook retainer at the bottom of the seat back.
    Fig 4: Identifying Rear Seat Back Bottom J-Hook Retainers
    G01756221Courtesy of GENERAL MOTORS CORP.
  11. Install the left rear seat back to the seat back frame.

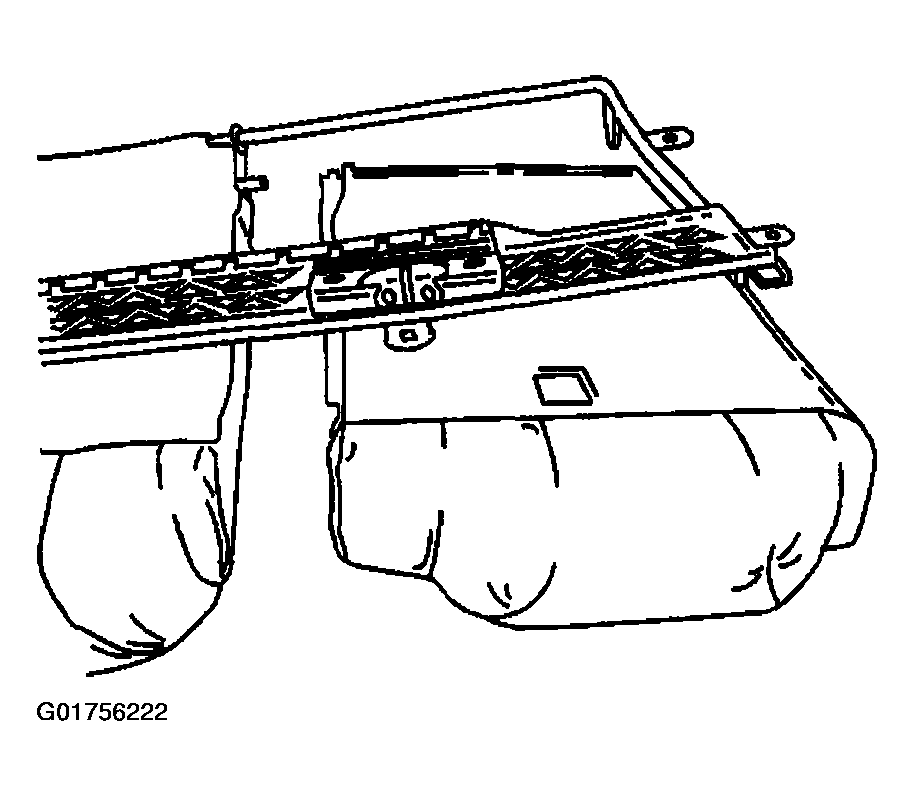

    Fig 5: Identifying Left Rear Seat Back
    G01756222Courtesy of GENERAL MOTORS CORP.
  12. Install the right rear seat back to the seat back frame.

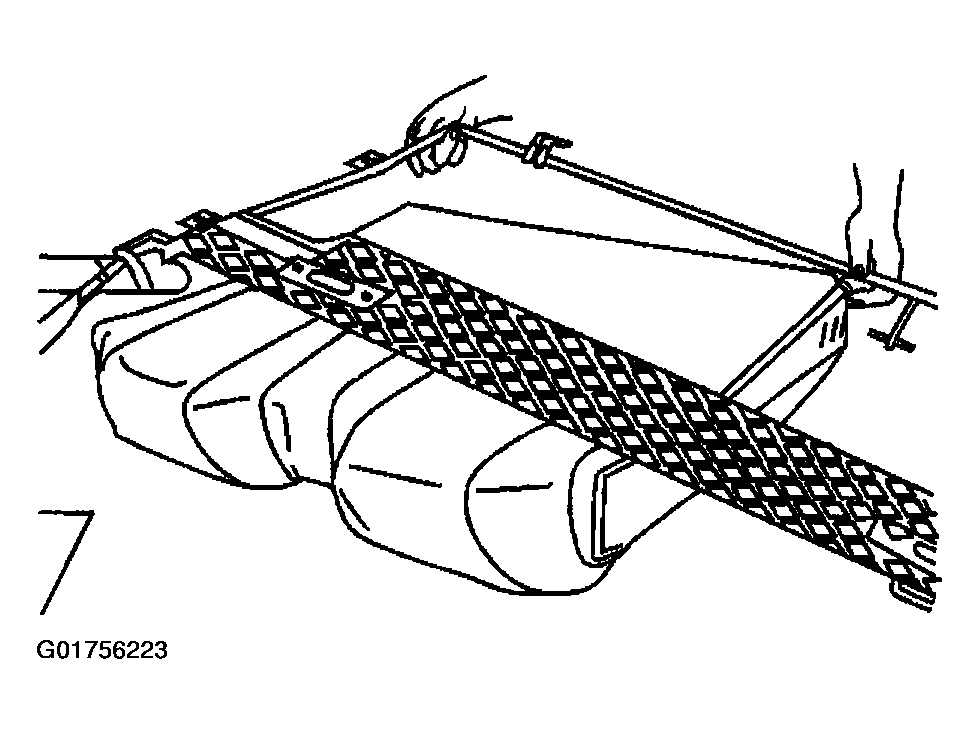

    Fig 6: Identifying Right Rear Seat Back
    G01756223Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  13. Install the bolts (1) to the seat back frame. Tighten the bolts to 10 N.m (89 lb in).
    14. Fig 7: Identifying Seat Back Frame Bolts
    G01756224Courtesy of GENERAL MOTORS CORP.
  14. Install the rear seat back bolsters. Refer to Seat Back Bolster Replacement - Rear Split Folding .
  15. Install the seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding)  .
