Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the adjuster on the seat frame.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the adjuster bolts. Tighten the bolts to 25 N.m (18 lb ft).
  3. Return the seat pad and the trim to the installed position.
  4. Install the trim cover J-hooks.

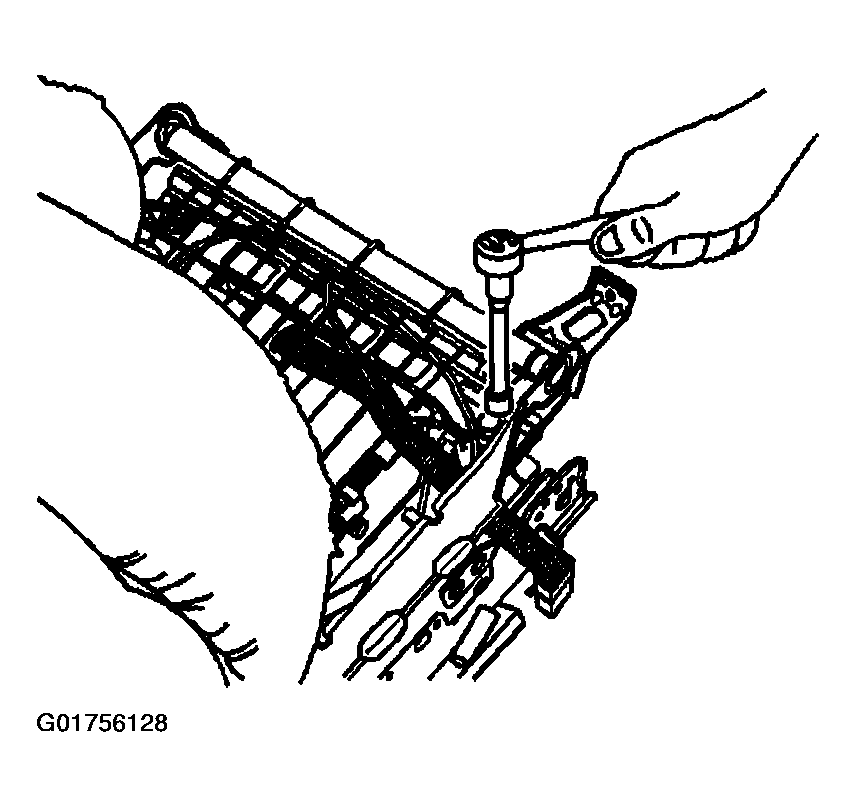

    Fig 1: Identifying Adjuster Bolts
    G01756128Courtesy of GENERAL MOTORS CORP.
  5. Install the electrical harness clip and the retainer on the adjuster bracket.

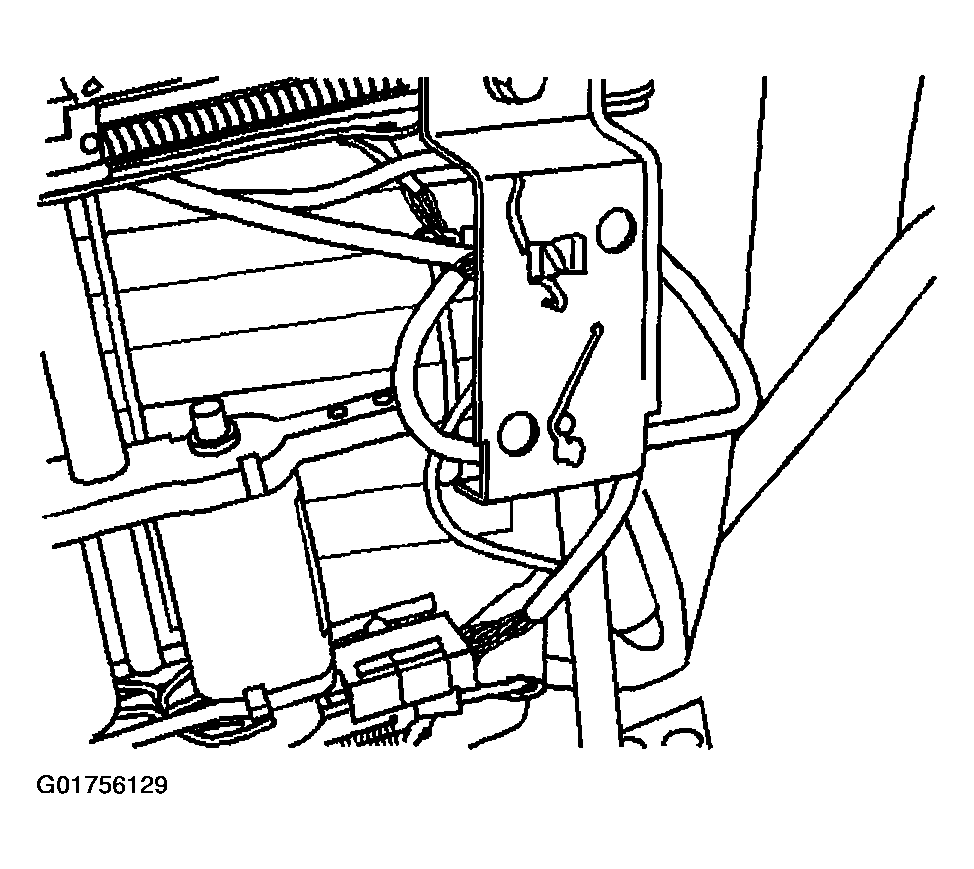

    Fig 2: Identifying Adjuster Bracket
    G01756129Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical harness to the seat motor harness.

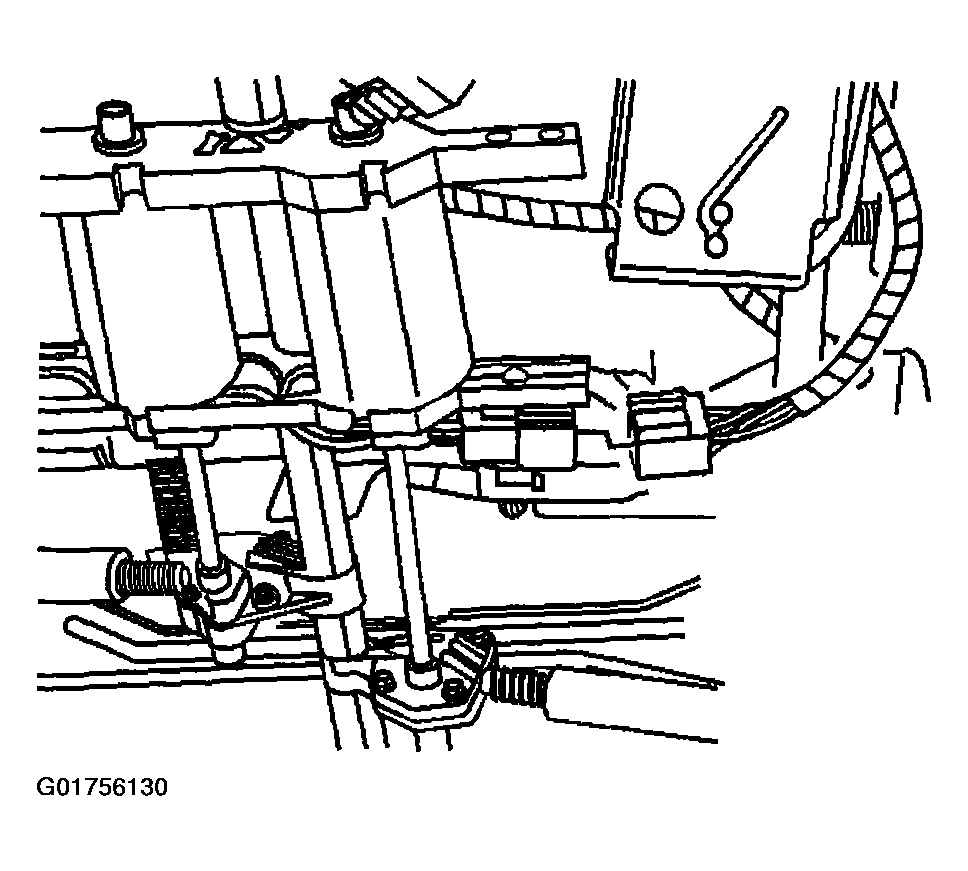

    7. Fig 3: Identifying Power Seat Motor Electrical Harness
    G01756130Courtesy of GENERAL MOTORS CORP.
  7. Install the seat belt buckle. Refer to SEAT BELT BUCKLE REPLACEMENT - LEFT FRONT .
  8. Install the seat belt bracket.
  9. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

    Important:  Inspect the drive cables. Make sure they are straight between the motors and the adjuster.

  10. Install the front seat. Refer to Seat Replacement - Front Bucket .
