Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Unlock the lock cylinder.
Fold the pass-through to the down position.

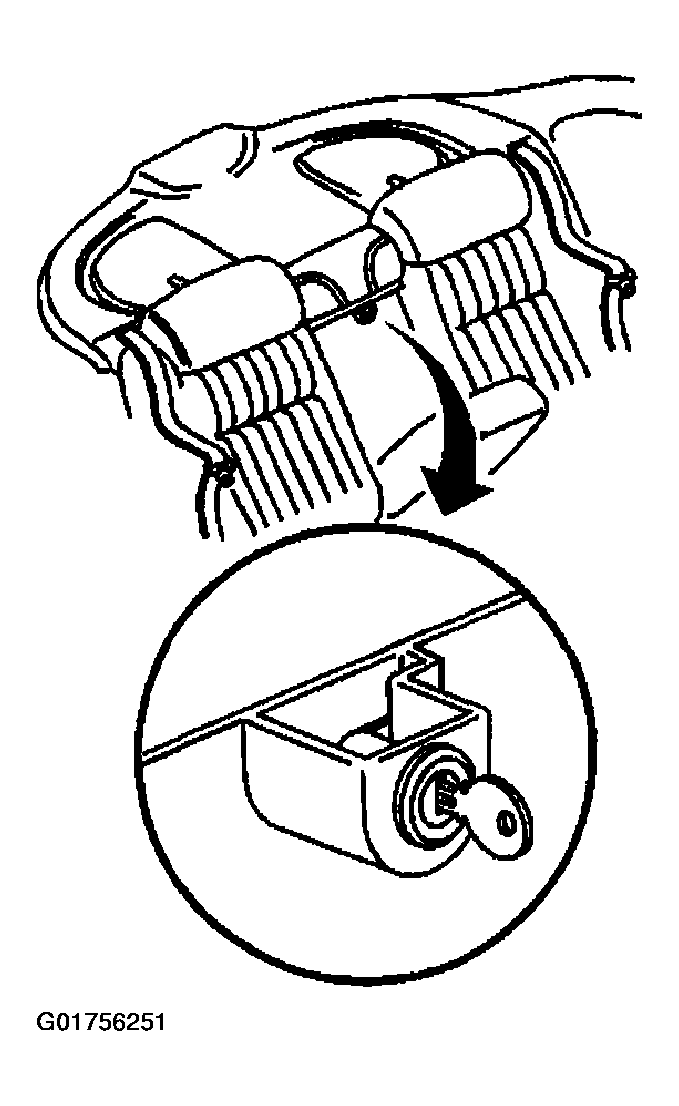

Fig 1: Identifying Rear Folding Seat Lock
Courtesy of GENERAL MOTORS CORP.
Remove the lock cylinder retainer clip.

Fig 2: Identifying Rear Folding Seat Lock Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Remove the lock cylinder from the pass-through panel.

Fig 3: Removing Rear Folding Seat Lock
Courtesy of GENERAL MOTORS CORP.
