Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the lock cylinder to the pass-through panel.

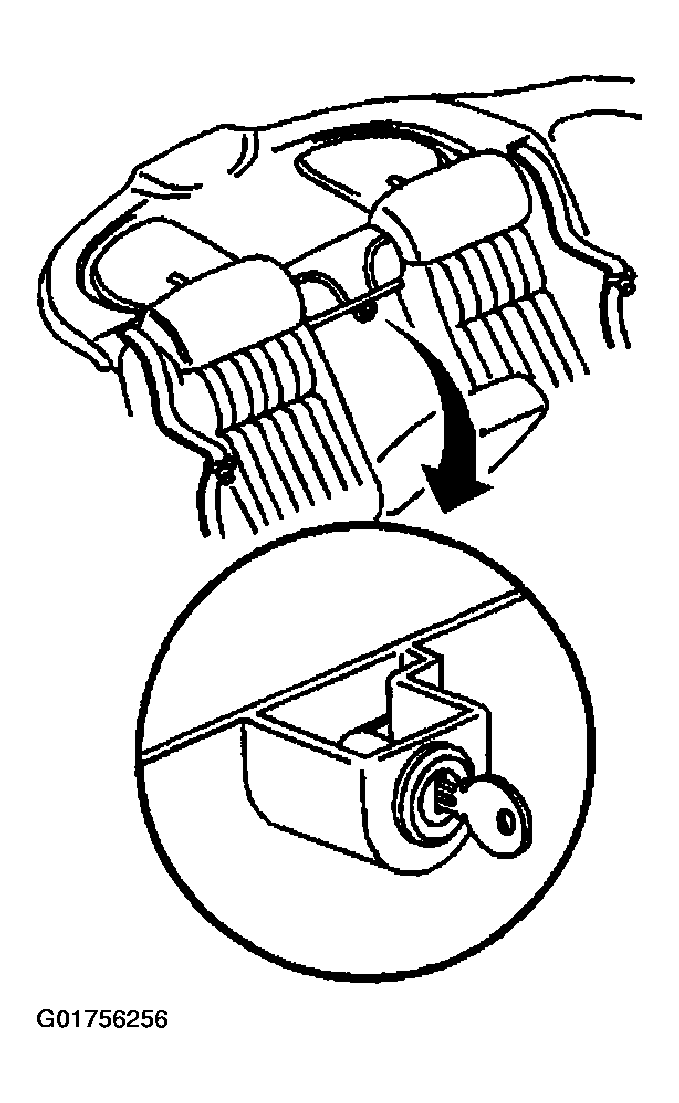

Fig 1: Installing Rear Folding Seat Lock
Courtesy of GENERAL MOTORS CORP.
Install the lock cylinder retainer clip.

Fig 2: Identifying Rear Folding Seat Lock Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Fold the pass-through to the up position.
Lock the lock cylinder.

Fig 3: Identifying Rear Folding Seat Lock
Courtesy of GENERAL MOTORS CORP.
