Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console switch assembly by pressing in the clips on each end and lifting the assembly out.

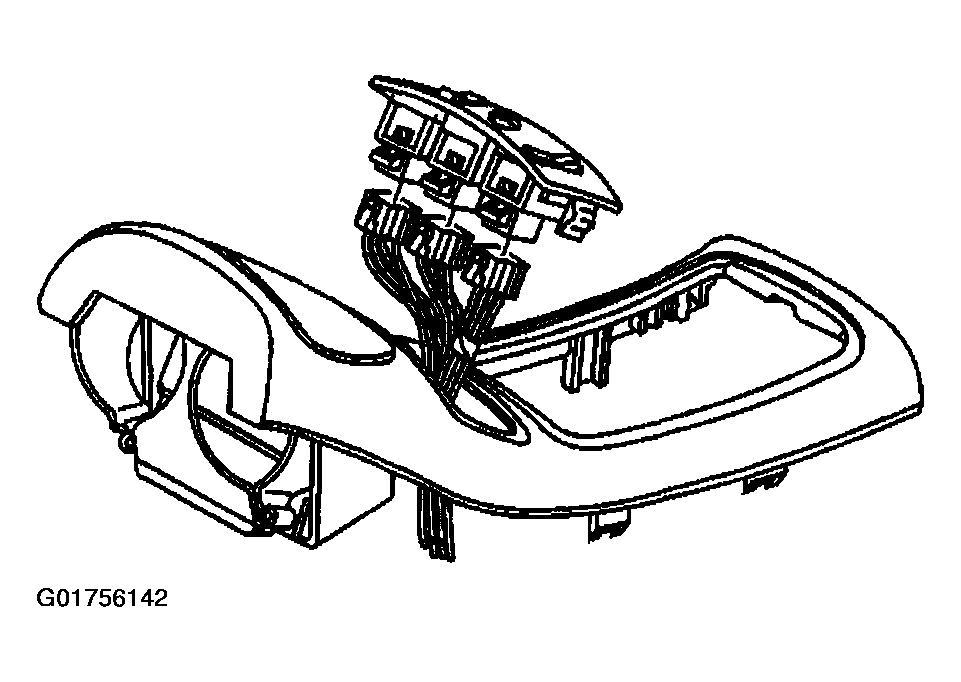

    2. Fig 1: Identifying Front Heated Seat Switch
    G01756142Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the appropriate heated seat switch:
    • The natural connector from the driver switch
    • The black connector from the passenger switch
  3. Remove the heated seat switch from the switch assembly.
