Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide to the seat back frame, pressing in until fully seated into the front seat frame.

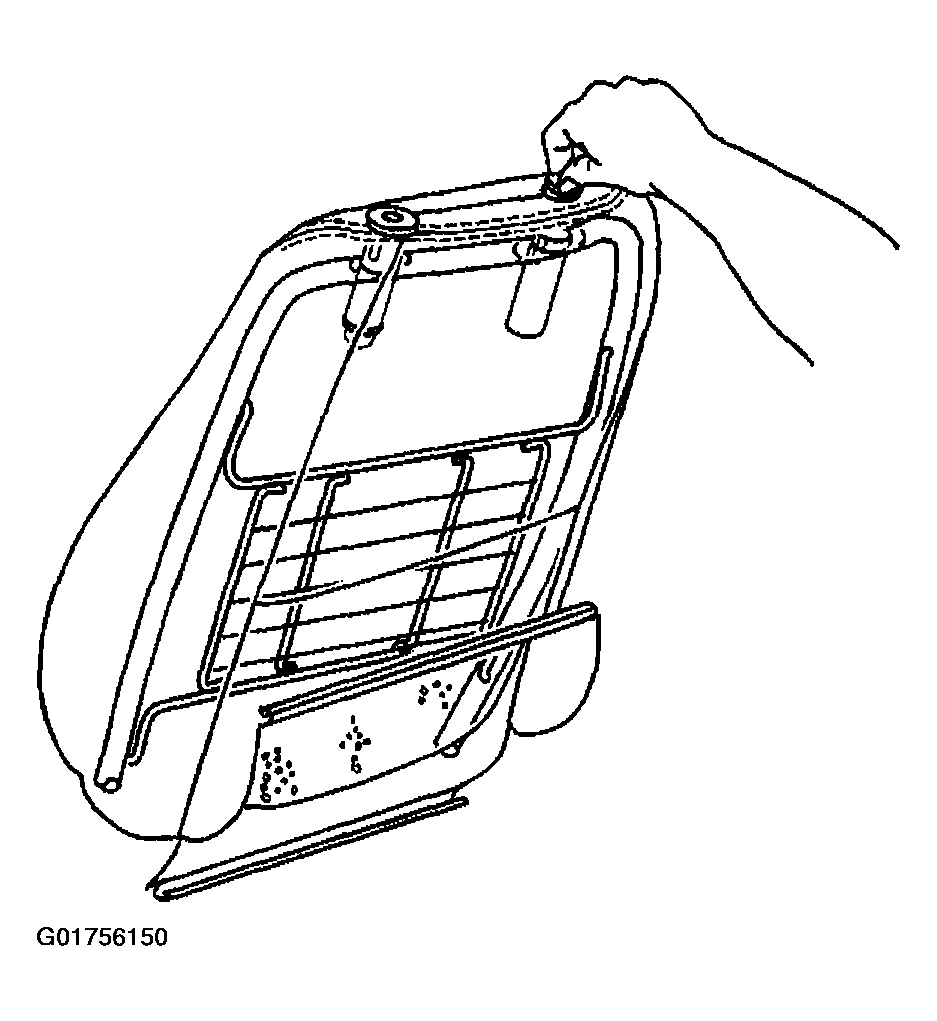

    2. Fig 1: Installing Front Seat Head Restraint Retainer
    G01756150Courtesy of GENERAL MOTORS CORP.
  2. Reposition the front seat cover to the front seat back.
  3. Close the J-hook retainer at the bottom edge of the front seat back cover.
  4. Install the head restraint to the front seat. Refer to Head Restraint Replacement - Front Seat .
  5. Return the front seat back to the original position.
