Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the notches facing the front, push the support rods fully into the head restraint.
  2. Align the head restraint to the head restraint retainers in the front seat back.

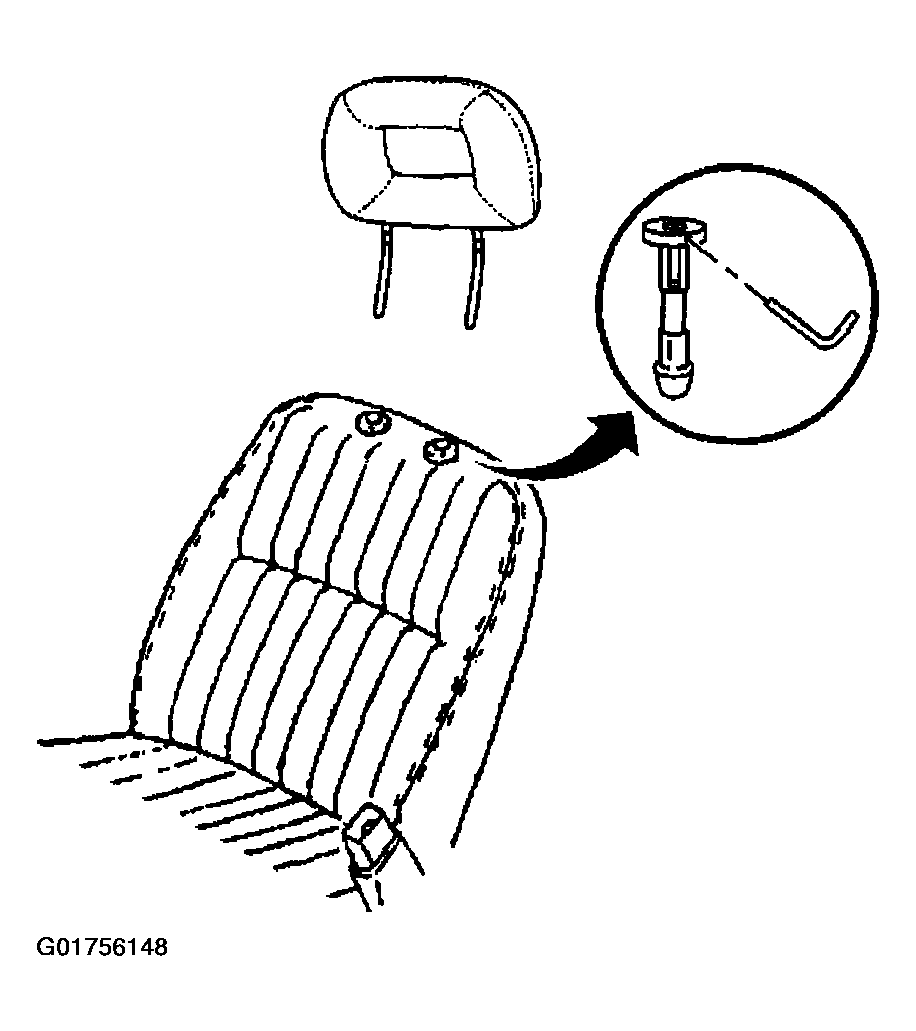

    3. Fig 1: Identifying Front Seat Head Restraint
    G01756148Courtesy of GENERAL MOTORS CORP.
  3. Install the head restraint to the front seat, pressing down until fully seated.
  4. Raise the head restraint to the full up position to ensure the head restraint stops at the detent.
  5. Reposition the head restraint to the original position.
