Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the armrest lid.
  2. Rotate the cup holder to its open position.
  3. To release the cupholder assembly, use a twisting motion to slide the left side mounting pin rearward through the formed slot in the armrest wall.

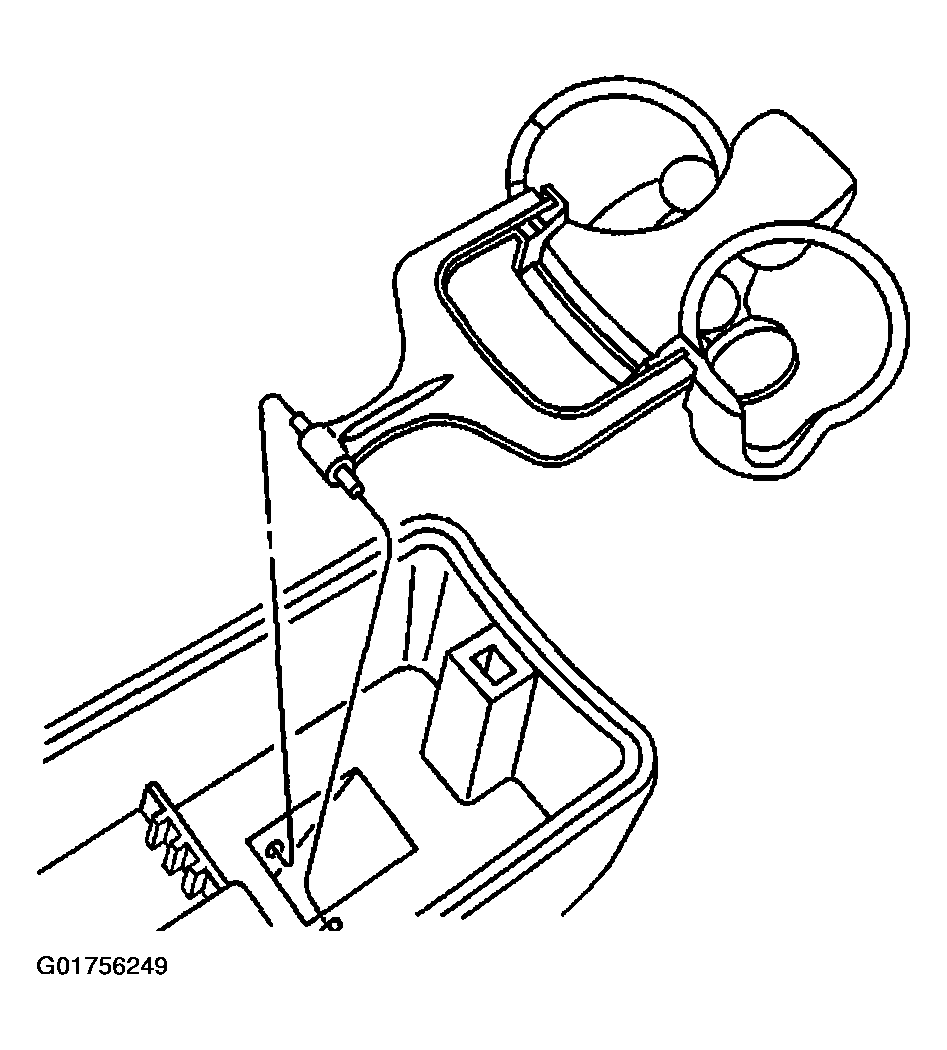

    4. Fig 1: Identifying Rear Seat Cupholder
    G01756249Courtesy of GENERAL MOTORS CORP.
  4. Remove the cup holder.
