Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cup holder in the armrest.

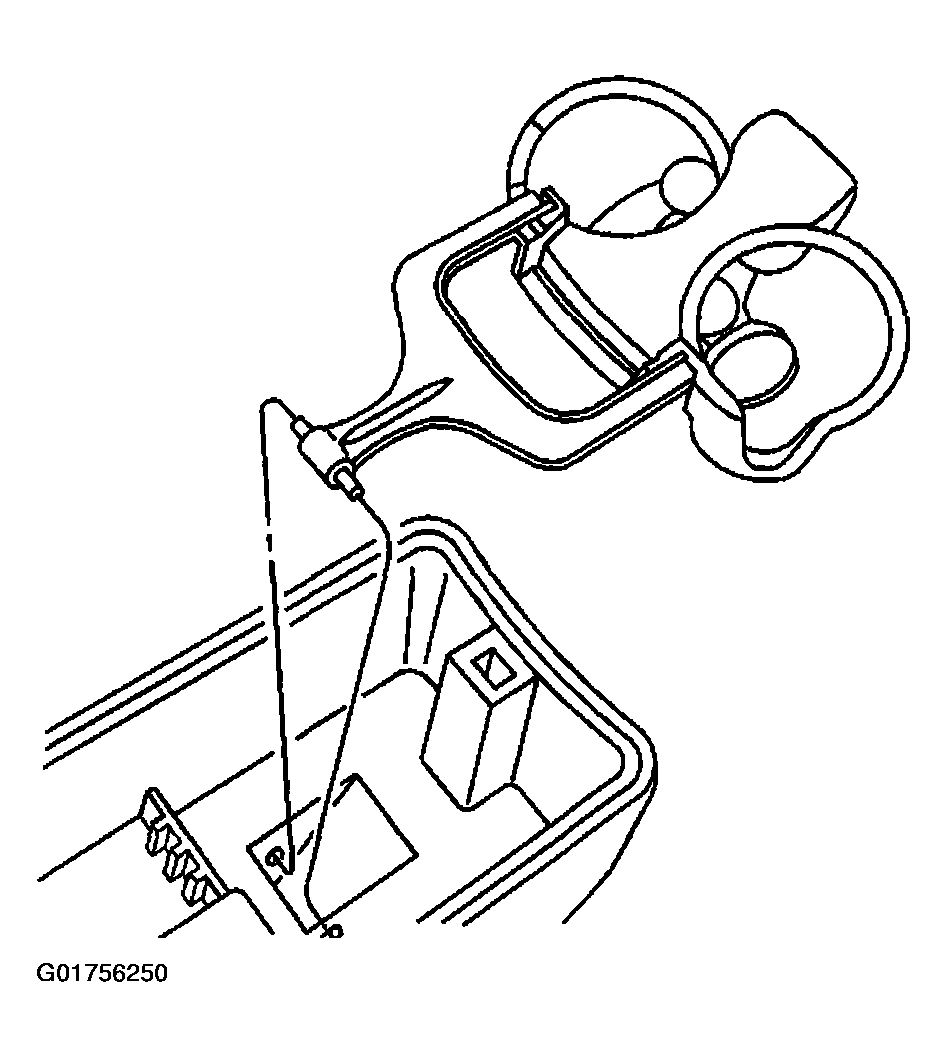

    2. Fig 1: Identifying Rear Seat Cupholder
    G01756250Courtesy of GENERAL MOTORS CORP.
  2. Insert the right side pin into the hole in the hole in the storage box.
  3. Slide the left side pin forward through the formed slot until positive engagement of the pin is felt.
  4. Rotate the cup holder to its closed position.
  5. Close the armrest lid.
