Removal Procedure
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

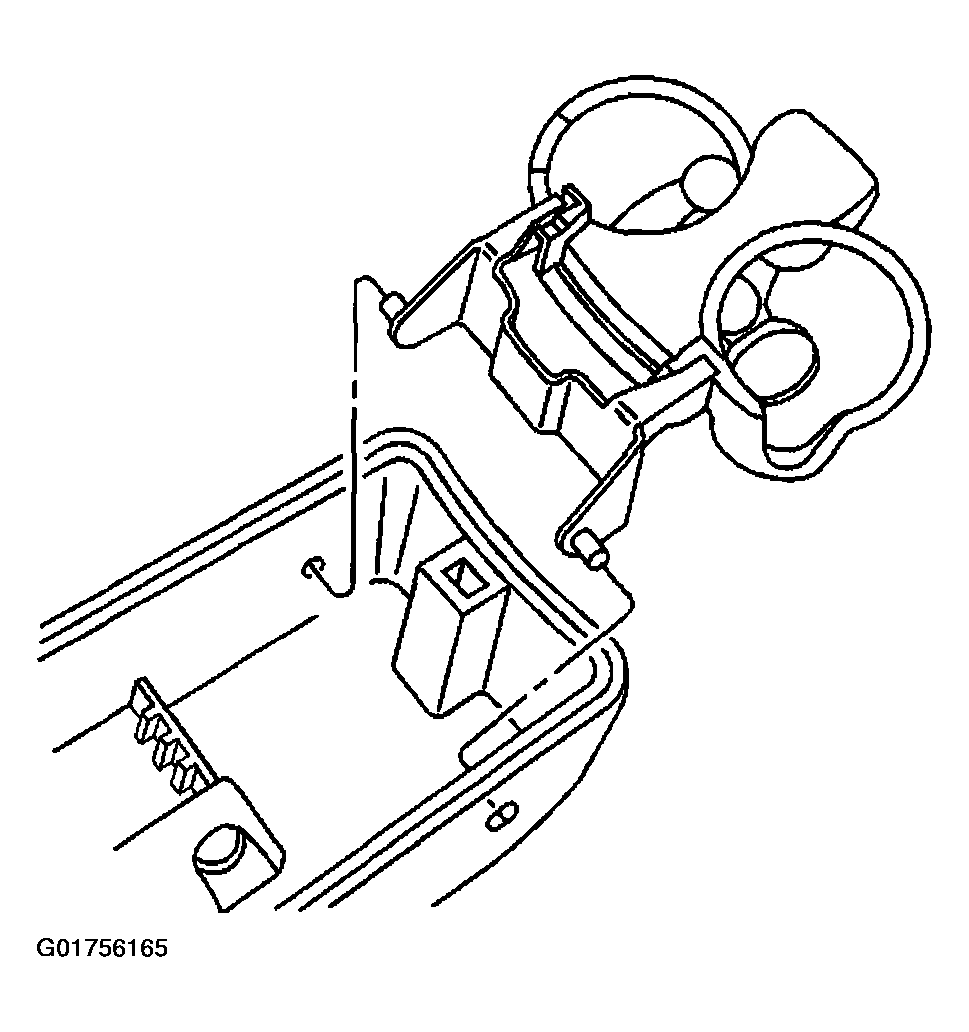

- Open the armrest lid.
- Rotate the cup holder to its open position.
- Squeeze the mounting bracket of the cup holder assembly together to disengage the pins from the armrest storage box sides.
- Remove the cup holder.
Courtesy of GENERAL MOTORS CORP.
