Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Fold down the rear seat back.
Unhook the seat trim J-hook retainers at the bottom of the rear seat back.

Fig 1: Identifying Rear Seat Back Bottom Seat Trim J-Hook Retainers
Courtesy of GENERAL MOTORS CORP.
Pull back the seat trim to expose the rear seat armrest nuts.
Remove the nuts from the rear seat armrest.

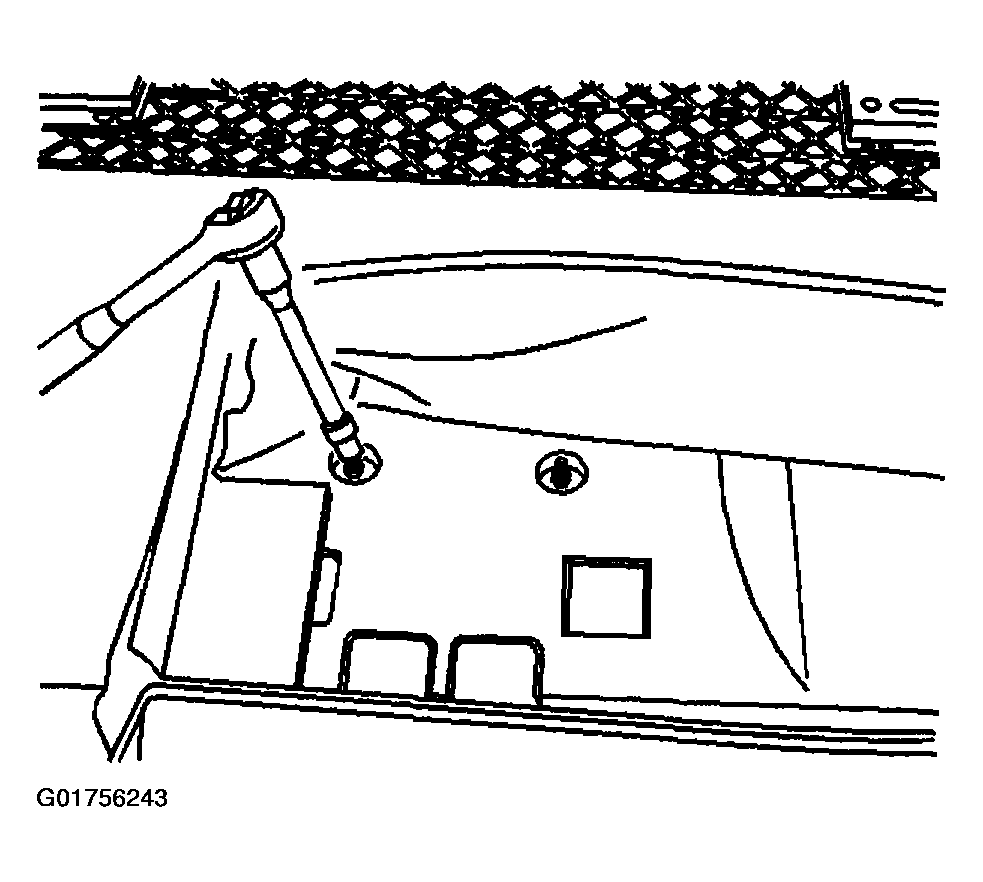

Fig 2: Identifying Rear Seat Armrest Nuts
Courtesy of GENERAL MOTORS CORP.
Reposition the rear seat to the upright position.
Remove the rear seat armrest from the seat.

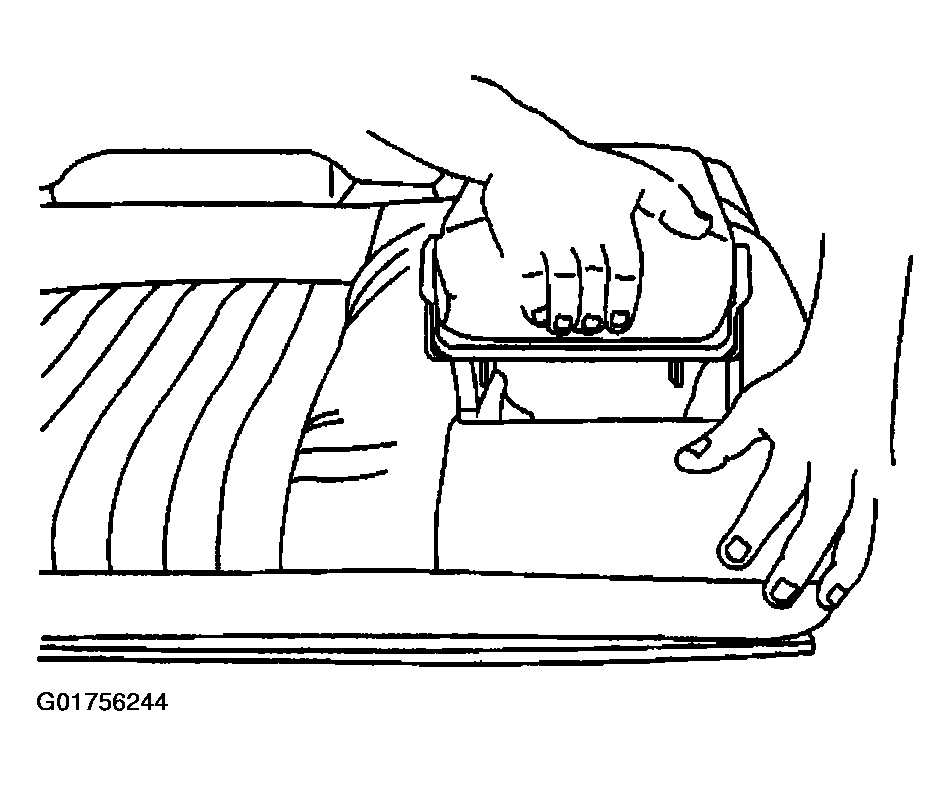

Fig 3: Identifying Rear Seat Armrest
Courtesy of GENERAL MOTORS CORP.
