Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear seat armrest to the rear seat back retainer slot.

Fig 1: Identifying Rear Seat Back Retainer Slot
Courtesy of GENERAL MOTORS CORP.

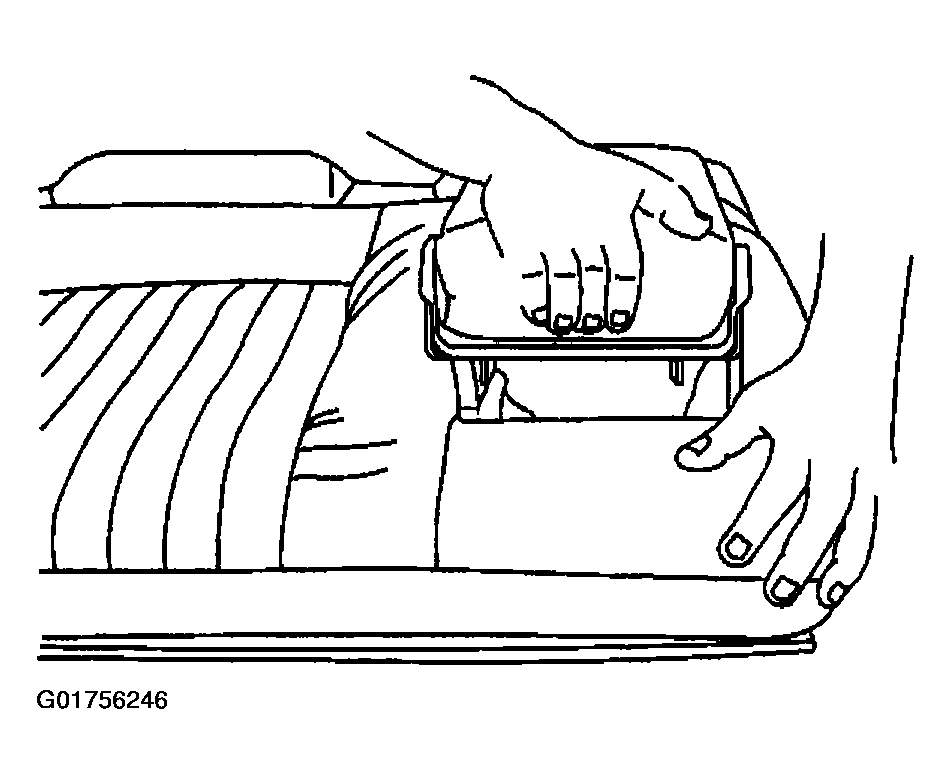

Install the rear seat armrest, pressing into place until the armrest studs are fully seated through the seat back.

Fig 2: Identifying Rear Seat Armrest

Courtesy of GENERAL MOTORS CORP.

Fold down the rear seat back.
NOTE: Refer to FASTENER NOTICE .

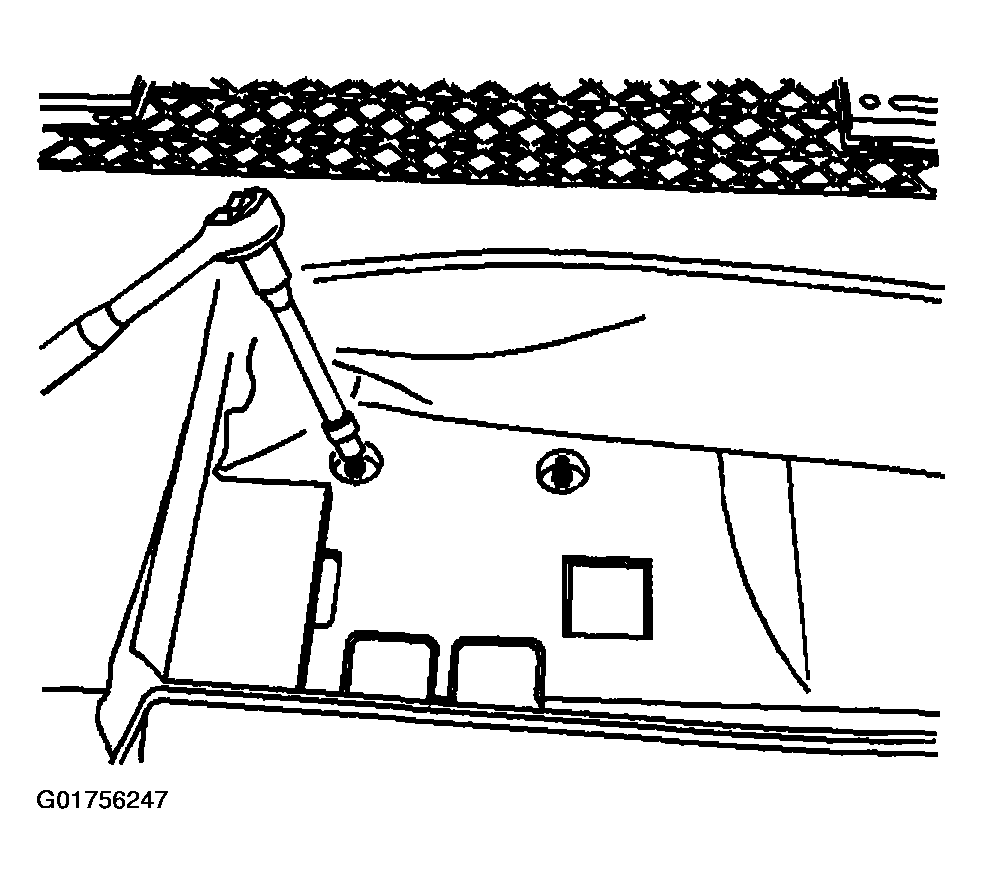

Install the rear seat armrest nuts. Tighten the nuts to 3 N.m (27 lb in).

Fig 3: Identifying Rear Seat Armrest Nuts
Courtesy of GENERAL MOTORS CORP.
Pull back the seat trim and refasten the J-hook retainers.
Reposition the rear seat to the upright position.

Fig 4: Identifying Rear Seat Back Bottom Seat Trim J-Hook Retainers
Courtesy of GENERAL MOTORS CORP.
