Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat ashtray and housing. Refer to Ashtray and Housing Replacement - Front Seat .
  2. Remove the lower and upper push-in retainers from the front seat armrest base cover, using side cutters.

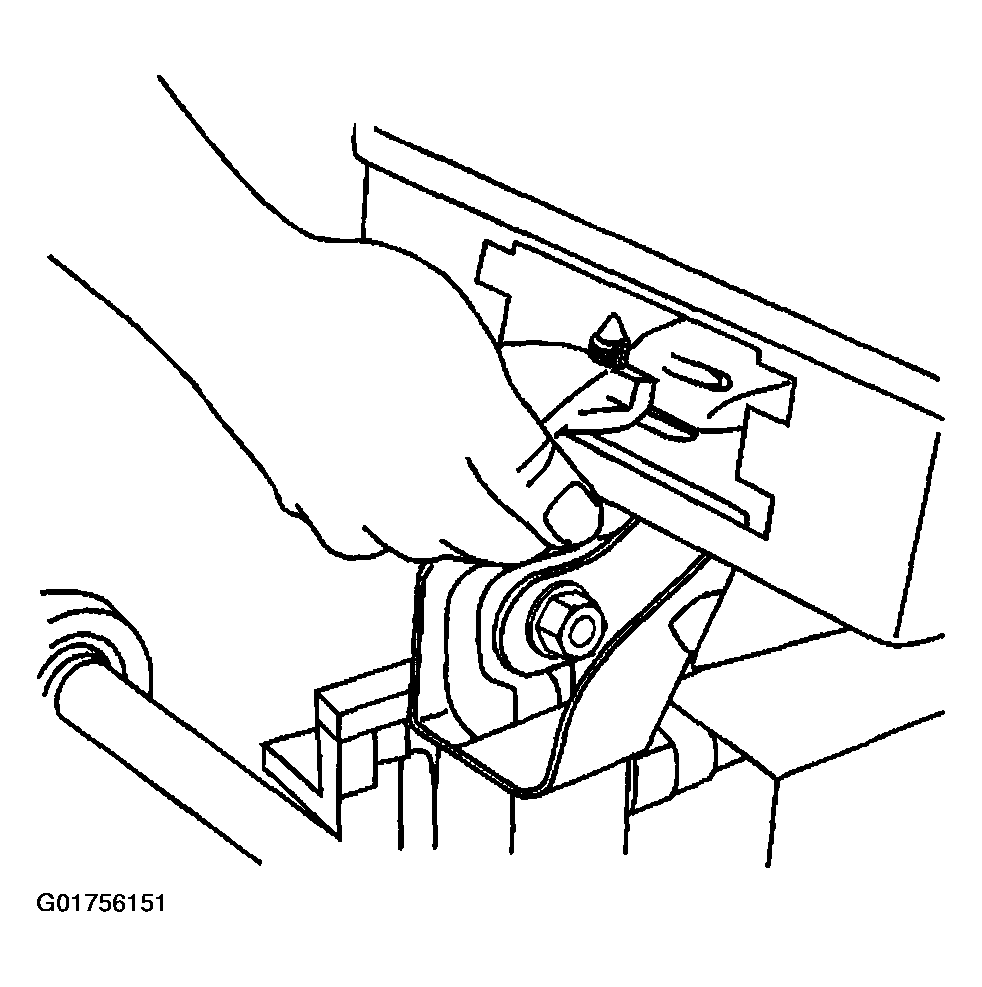

    Fig 1: Identifying Front Seat Armrest Base Cover Push-In Retainers
    G01756151Courtesy of GENERAL MOTORS CORP.
  3. Remove the front seat armrest base cover from the armrest.

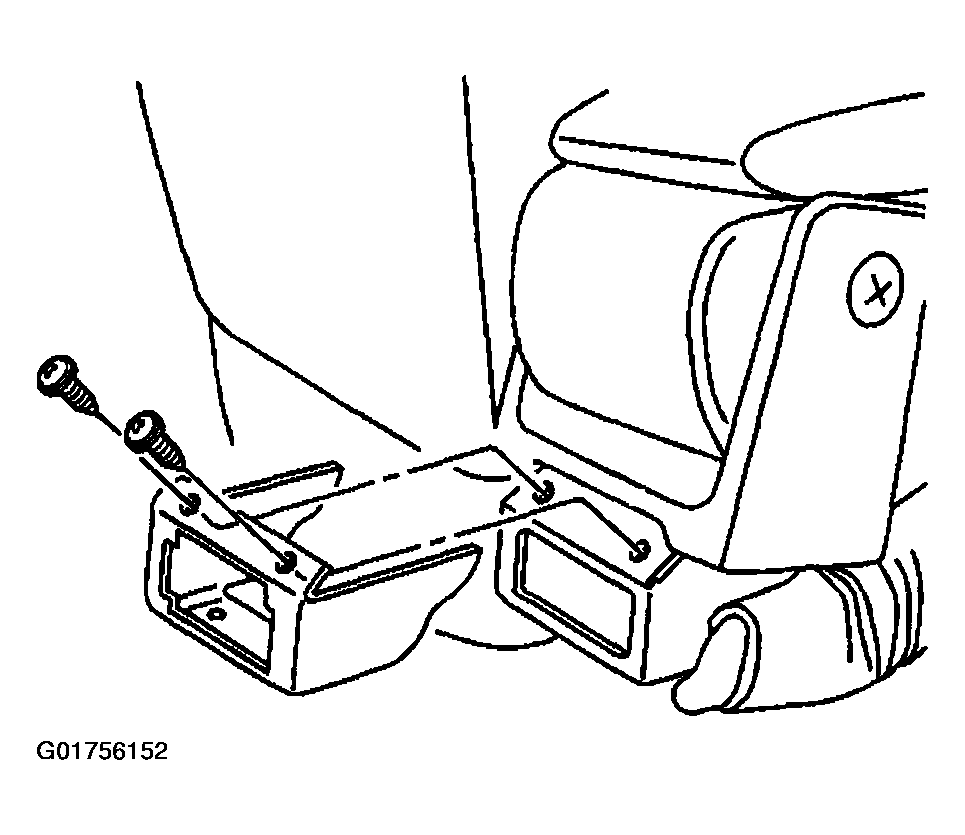

    Fig 2: Identifying Front Seat Armrest Base Cover
    G01756152Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear bolts from the front seat armrest base.

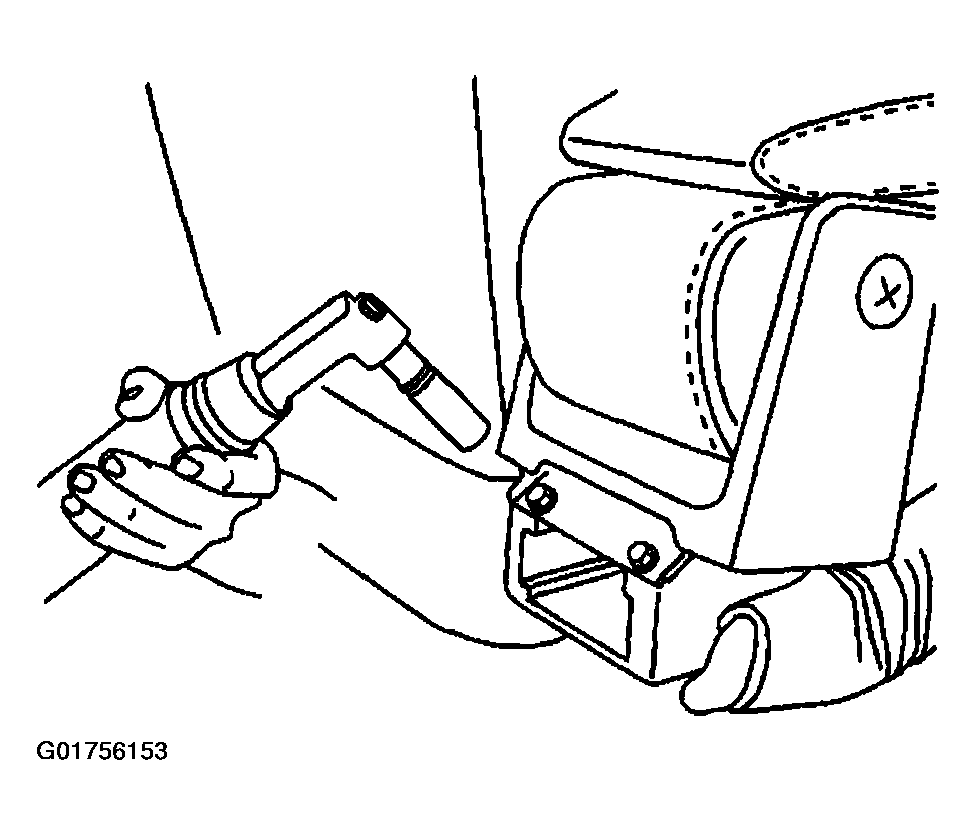

    Fig 3: Identifying Front Seat Armrest Base Rear Bolts
    G01756153Courtesy of GENERAL MOTORS CORP.
  5. Remove the front bolts from the front seat armrest base.

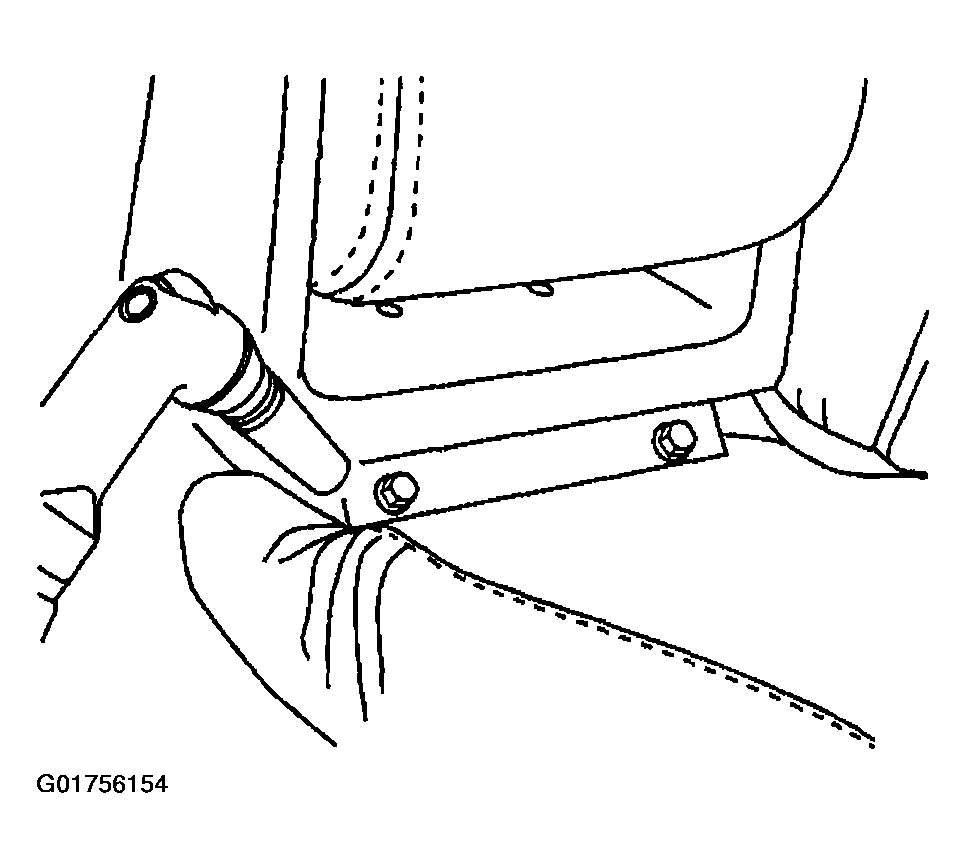

    Fig 4: Identifying Front Seat Armrest Base Front Bolts
    G01756154Courtesy of GENERAL MOTORS CORP.
  6. Remove the front seat armrest from the front seat cushion frame.

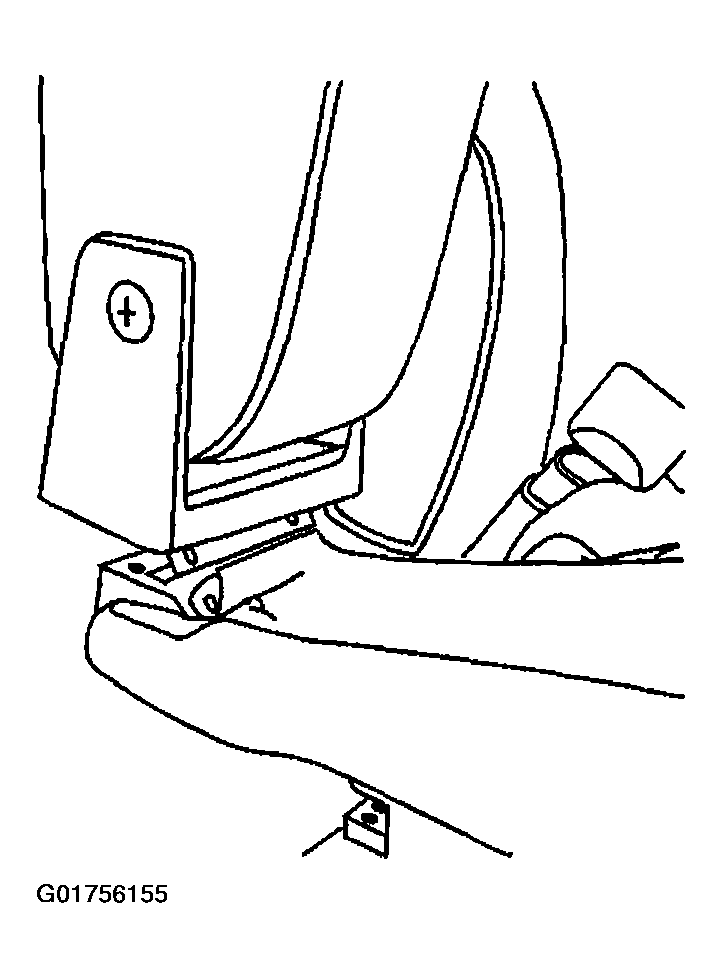

    Fig 5: Removing Front Seat Armrest
    G01756155Courtesy of GENERAL MOTORS CORP.
