Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness in the rear compartment.

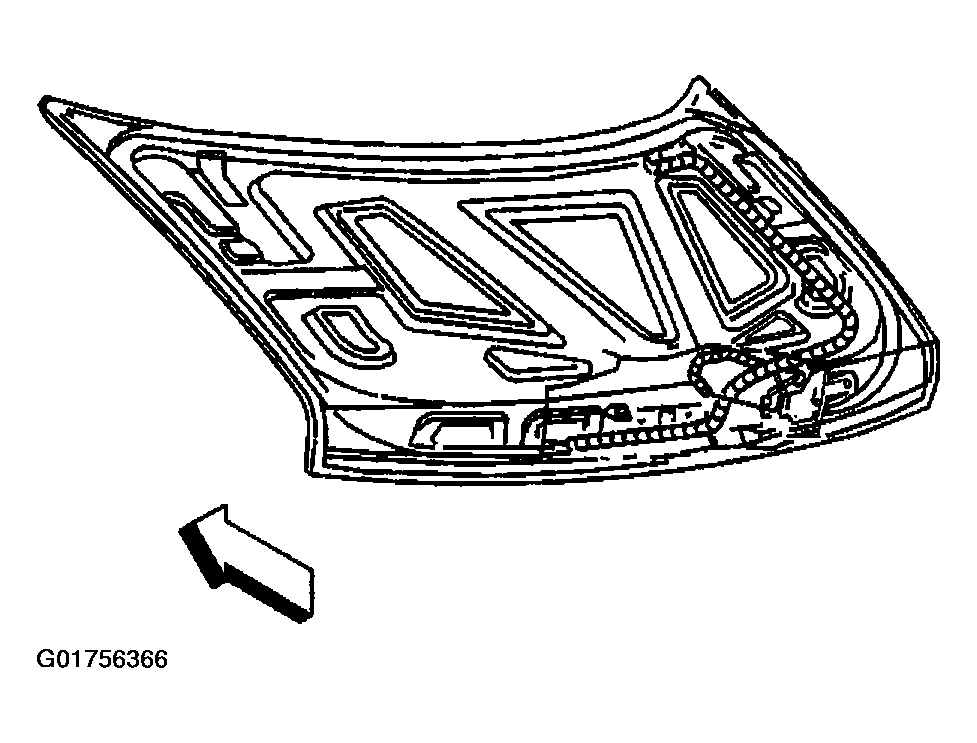

    2. Fig 1: Identifying Rear Compartment Lid Harness
    G01756366Courtesy of GENERAL MOTORS CORP.
  2. Connect the new harness to the string.
  3. Pull the string back through the rear compartment lid until the harness is inside of the rear compartment lid.
  4. Remove the string from the wire harness.
  5. Connect the electrical connectors to the electrical components that are attached to the rear compartment lid.
  6. Install the push-in retainer on the hinge.
  7. Close the rear compartment.
