Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Grasp the rear compartment weatherstrip. Carefully pull up the weather strip.

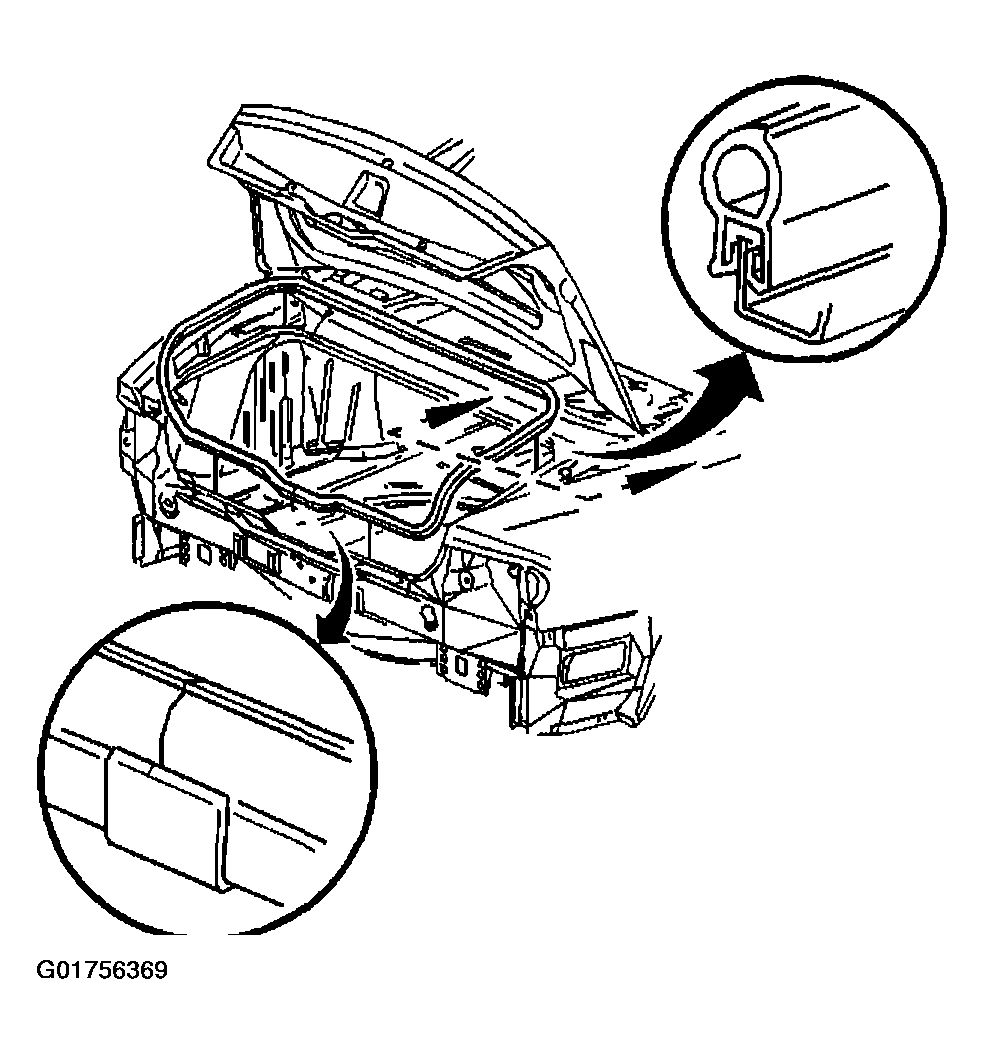

  3. Fig 1: Identifying Rear Compartment Opening Weatherstrip
    G01756369Courtesy of GENERAL MOTORS CORP.
  4. Remove the weatherstrip from the pinch-weld flange.
