Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment weatherstrip to the pinch-weld flange.

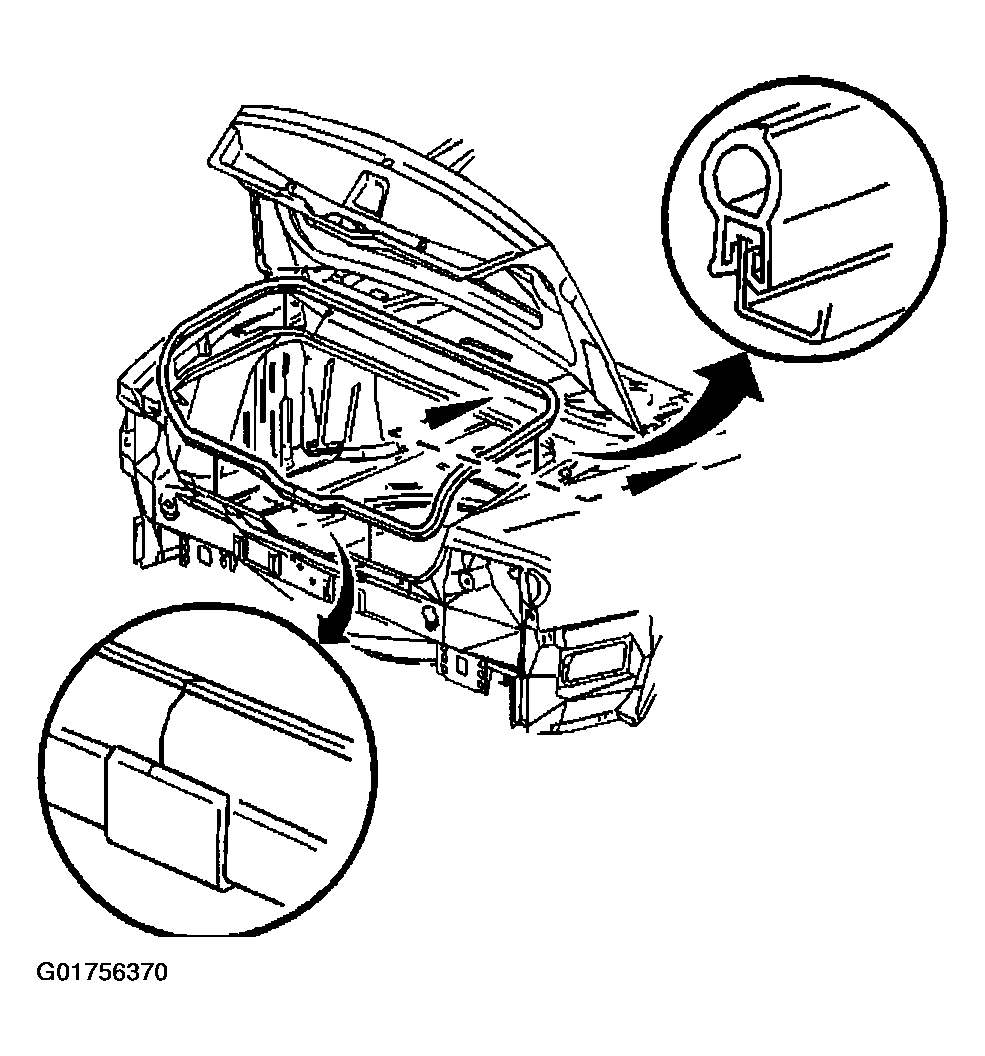

    2. Fig 1: Identifying Rear Compartment Opening Weatherstrip
    G01756370Courtesy of GENERAL MOTORS CORP.
  2. Align the color mark on the rear compartment weatherstrip to the body centerline at the front of the rear compartment lid opening.
  3. Engage the rear compartment weatherstrip onto the pinch-weld flange.
    1. 3.1. Start at the top center of the lid opening and work toward the bottom center.
    2. 3.2. Use a rubber mallet to ensure full engagement of the rear compartment weatherstrip to the pinch-weld flange.
  4. Close the rear compartment.
