Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Open and support the rear compartment lid.
NOTE: Refer to LIFTGATE ASSIST ROD NOTICE .
Use a small flat-bladed tool in order to lift up the locking clip on the strut upper ball stud.

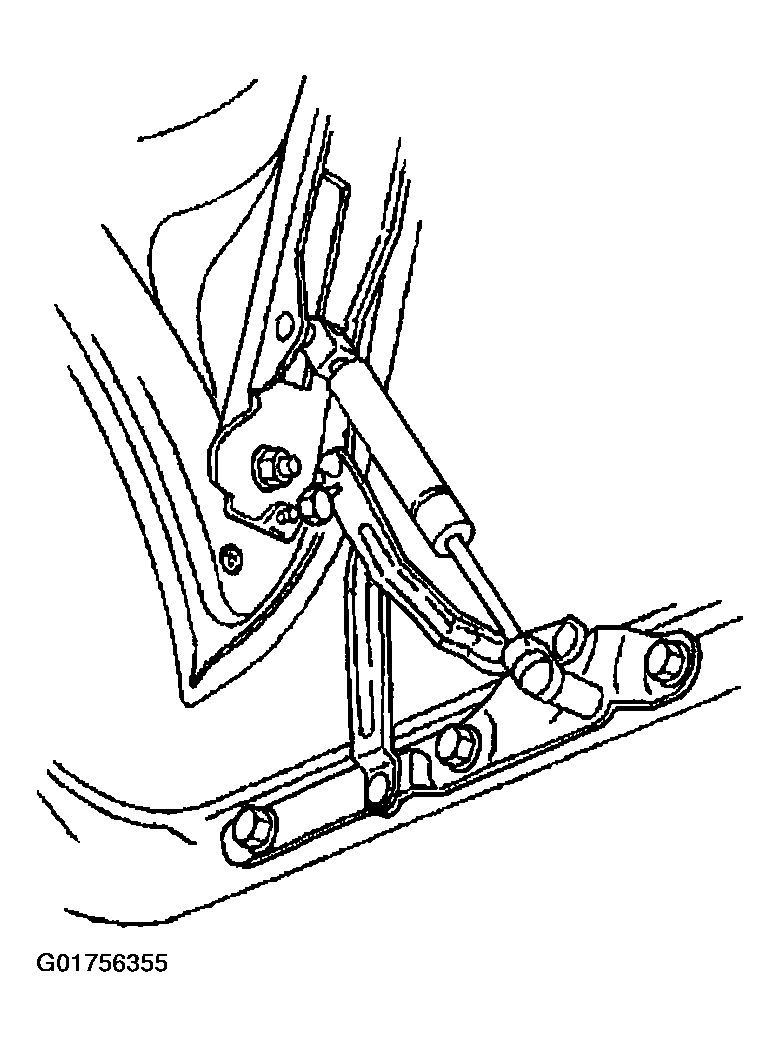

Fig 1: Identifying Rear Compartment Lid Strut

Courtesy of GENERAL MOTORS CORP.

Press out the upper ball stud.
Use a small flat-bladed tool in order to lift up the locking clip on the strut lower ball stud.
Press out the lower ball stud.
Remove the rear compartment lid strut from the hinge.
