Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Disconnect the electrical connector from the lock actuator.

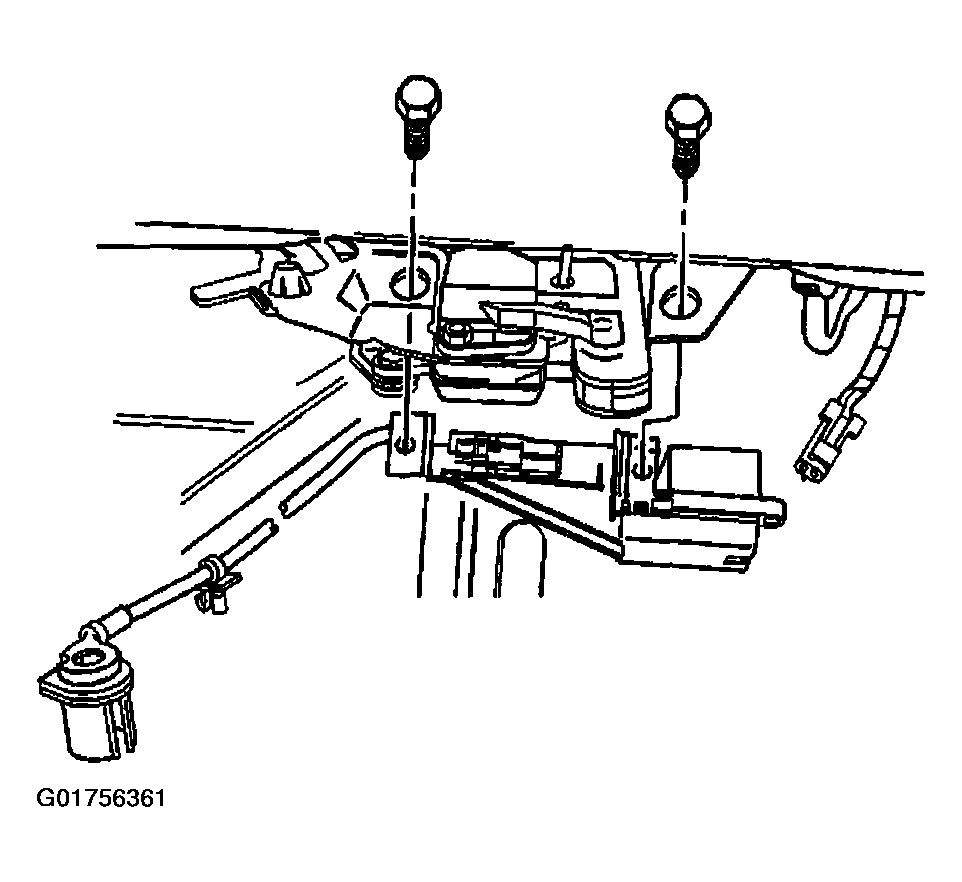

    3. Fig 1: Identifying Release Actuator
    G01756361Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the lock cylinder cable from the lock cylinder.
  4. Remove the bolts retaining the lock actuator to the rear compartment lid latch.
  5. Remove the lock actuator from the rear compartment lid latch.
