Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Remove the latch. Refer to Latch Replacement - Rear Compartment Lid .
  3. Remove the screw (5) for the rear compartment lid ajar/lid lamp switch.

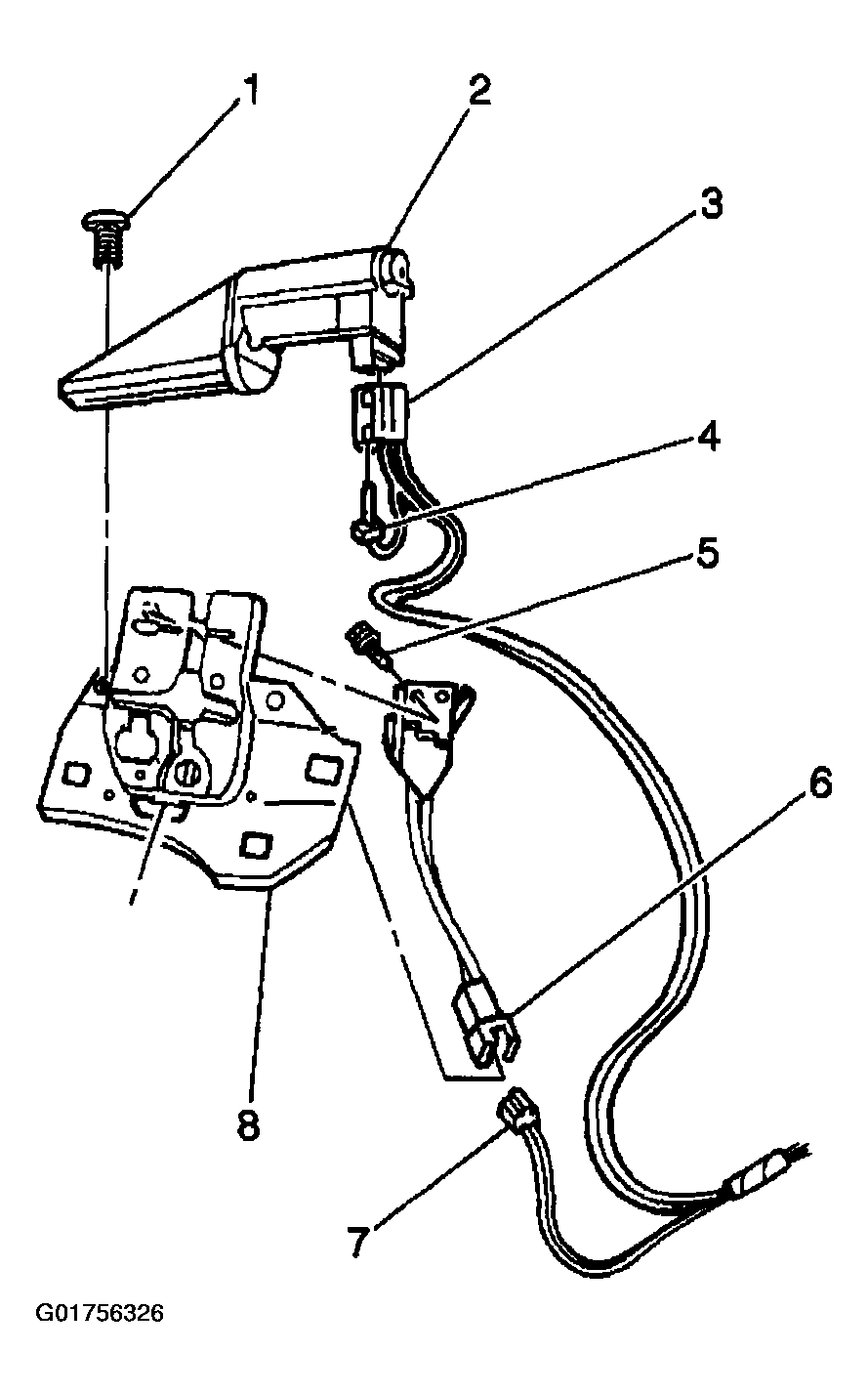

    4. Fig 1: Identifying Rear Compartment Lid Ajar/Lid Lamp Switch Components
    G01756326Courtesy of GENERAL MOTORS CORP.
  4. Remove the lid ajar/lid lamp switch.
