Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid ajar switch to the lid latch.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screw (5) to the lid ajar/lid lamp switch. Tighten the screw to 5 N.m (44 lb in).

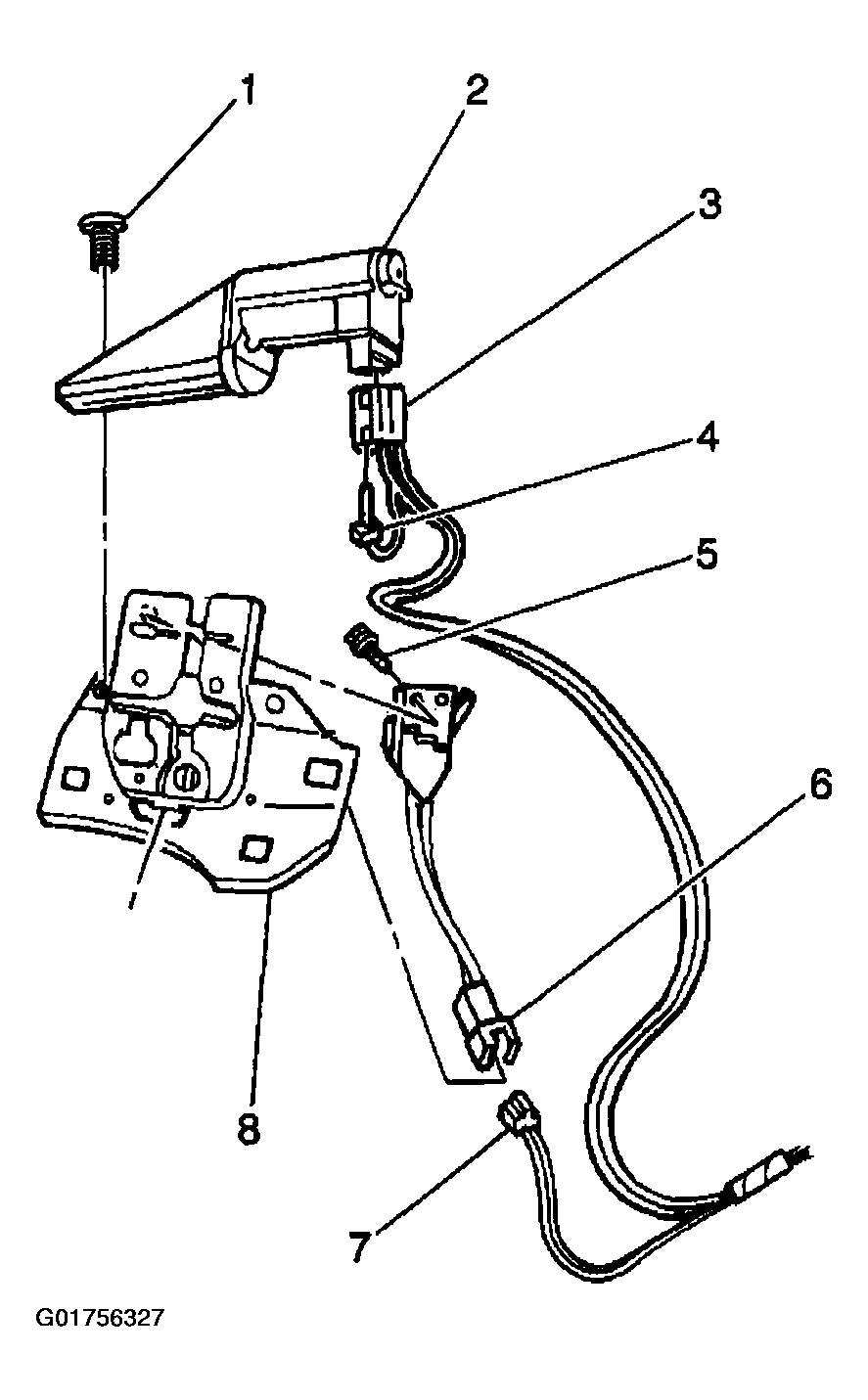

    Fig 1: Identifying Rear Compartment Lid Ajar/Lid Lamp Switch Components
    G01756327Courtesy of GENERAL MOTORS CORP.

  3. Install the latch. Refer to Latch Replacement - Rear Compartment Lid .
  4. Close the rear compartment lid.
