Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .
  3. Pull back the right rear compartment trim panel as needed. Refer to Compartment Trim Panel Replacement - Rear .
  4. Use a small, flat-bladed tool to release the snaps on the pressure relief valve. Apply pressure at two upper locations and two lower locations.

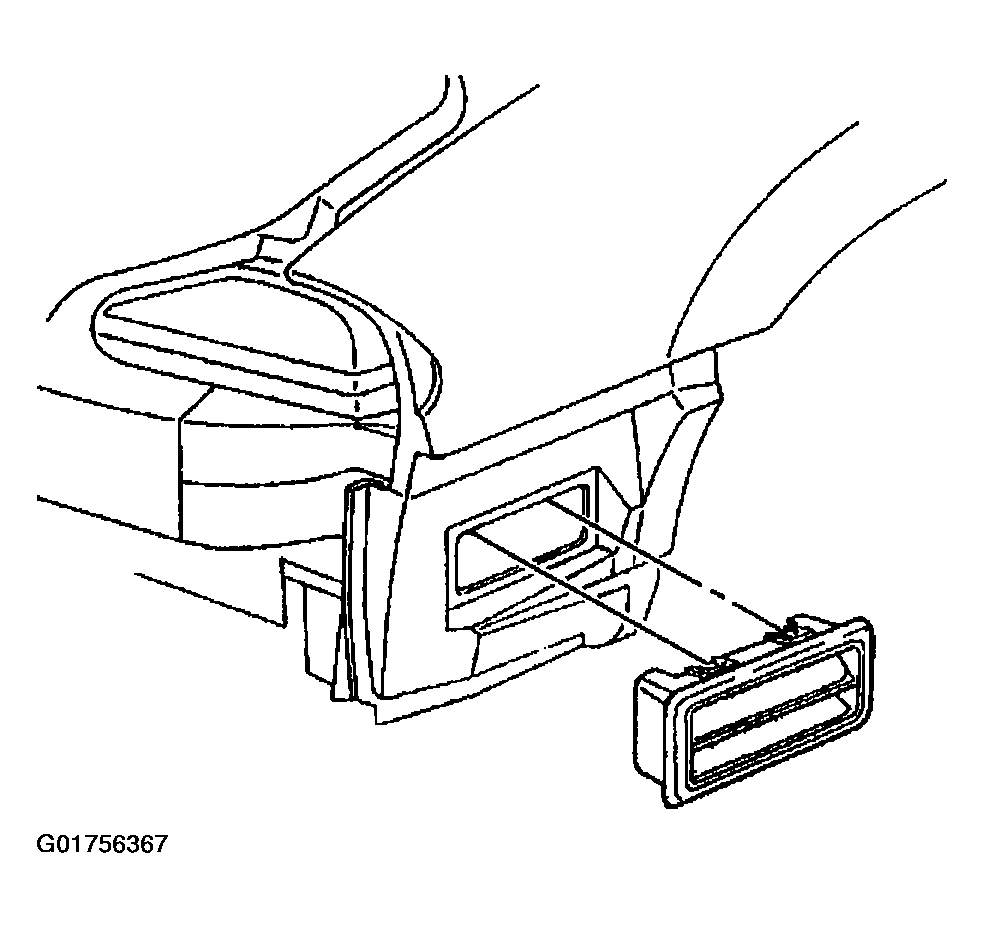

    5. Fig 1: Identifying Pressure Relief Valve
    G01756367Courtesy of GENERAL MOTORS CORP.
  5. Remove the pressure relief valve from the lower quarter panel.
