Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve in the lower quarter panel.

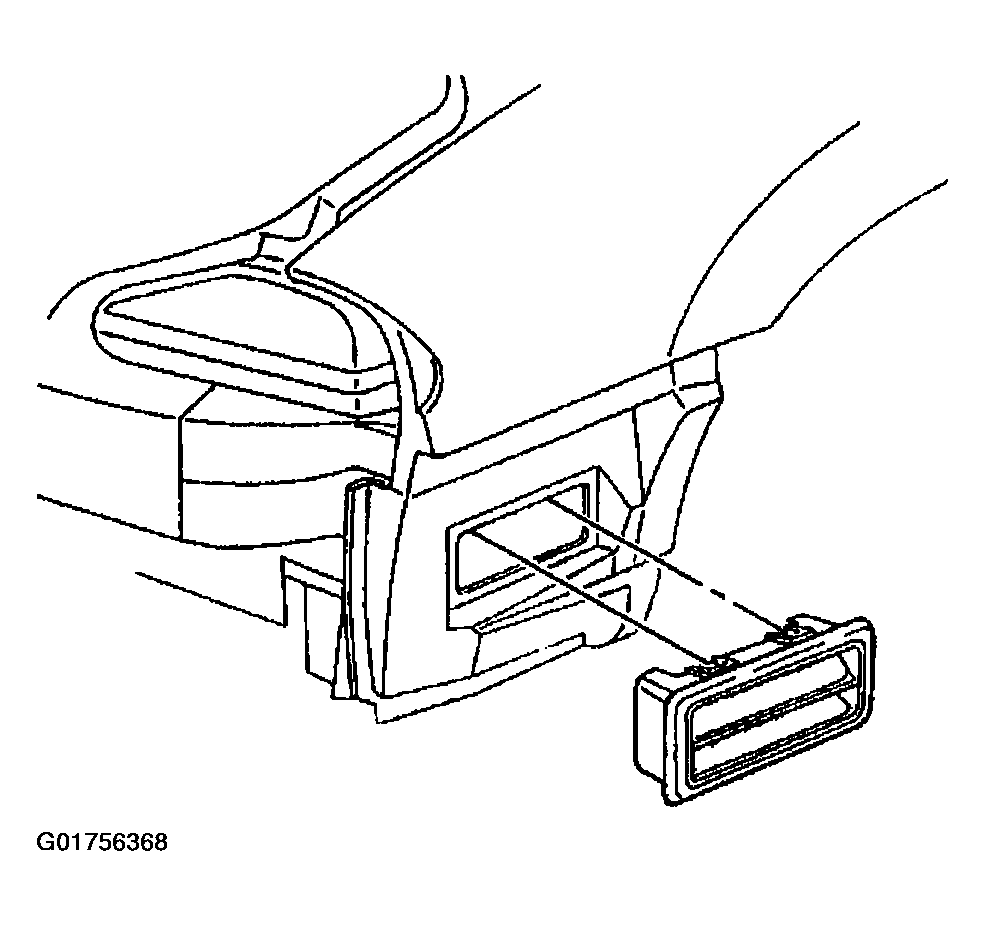

    2. Fig 1: Identifying Pressure Relief Valve
    G01756368Courtesy of GENERAL MOTORS CORP.
  2. Press the pressure relief valve into the quarter lower panel until the snaps lock into place at the upper and lower locations.
  3. Install the rear compartment trim panel. Refer to Compartment Trim Panel Replacement - Rear .
  4. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .
  5. Close the rear compartment.
