Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid latch to the alignment marks on the rear compartment lid.

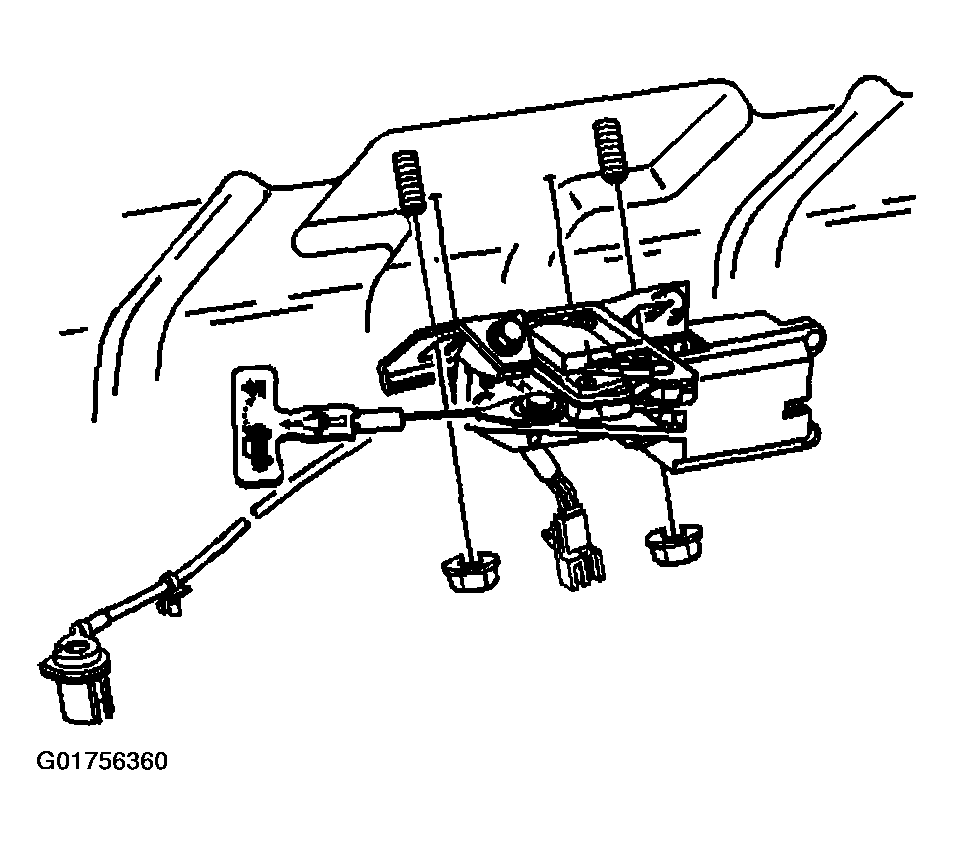

    Fig 1: Identifying Rear Compartment Lid Latch
    G01756360Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear compartment lid latch to rear compartment lid nuts. Tighten the nuts to 10 N.m (89 lb in).
  3. Connect the electrical connectors to the rear compartment lid latch.
  4. Connect the lock cylinder actuator cable to the lock cylinder.
  5. Close the rear compartment.
