Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Use a grease pencil to mark the hinge to the rear compartment lid for the location at installation.
  3. Disconnect the lid harness in the rear compartment.
  4. Remove the rear compartment hinge to lid nuts Refer to Compartment Lid Replacement - Rear .
  5. Remove the rear compartment struts. Refer to Strut Replacement - Rear Compartment Lid .
  6. Use a grease pencil to mark the quarter panel hinge to the quarter panel. The mark will help you align the hinge at installation.
  7. Remove the bolts that attach the hinge to the rear quarter.
  8. Remove the hinge from the quarter panel.

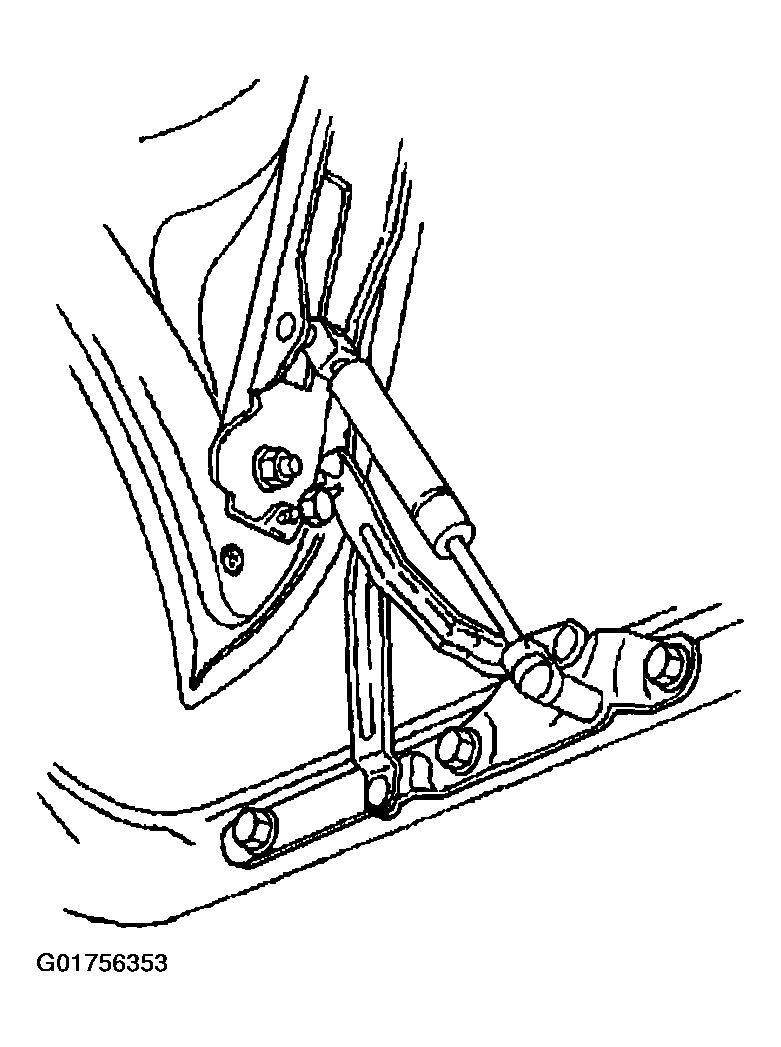

    Fig 1: Identifying Rear Compartment Lid Hinge
    G01756353Courtesy of GENERAL MOTORS CORP.
