Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Place protective coverings over the adjacent body panels.
  3. Use a grease pencil in order to mark the hinge to the rear compartment lid for the location at installation.

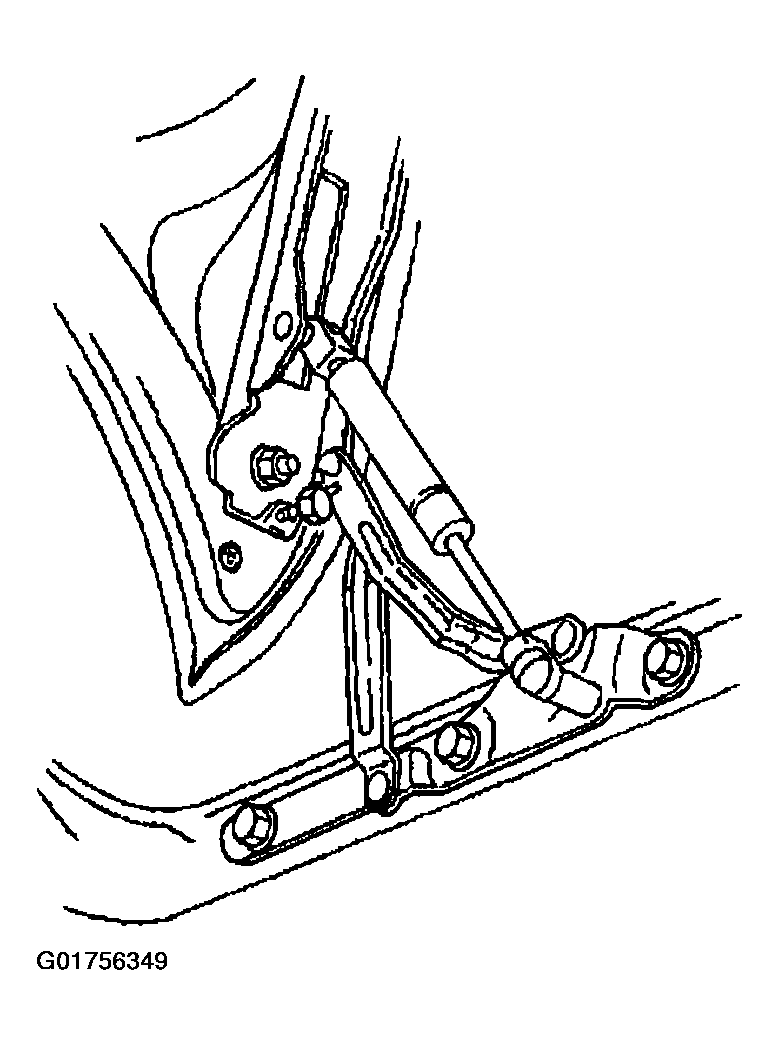

    4. Fig 1: Identifying Rear Compartment Lid Hinge
    G01756349Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiring harness. Refer to Wiring Harness Replacement - Rear Compartment Lid .
  5. Remove the compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
  6. Remove the key lock cylinder. Refer to Lock Cylinder Replacement - Rear Compartment Lid .
  7. Remove the latch. Refer to Latch Replacement - Rear Compartment Lid .
  8. Remove the black rubber bumpers located above the hinge.
  9. Use a grease pencil to mark the location of the upper rear compartment lid hinge to the rear compartment lid.
  10. Remove the nuts from the rear compartment hinges, with an assistant.
  11. Remove the rear compartment lid, with an assistant.
