Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the harness to the applique.

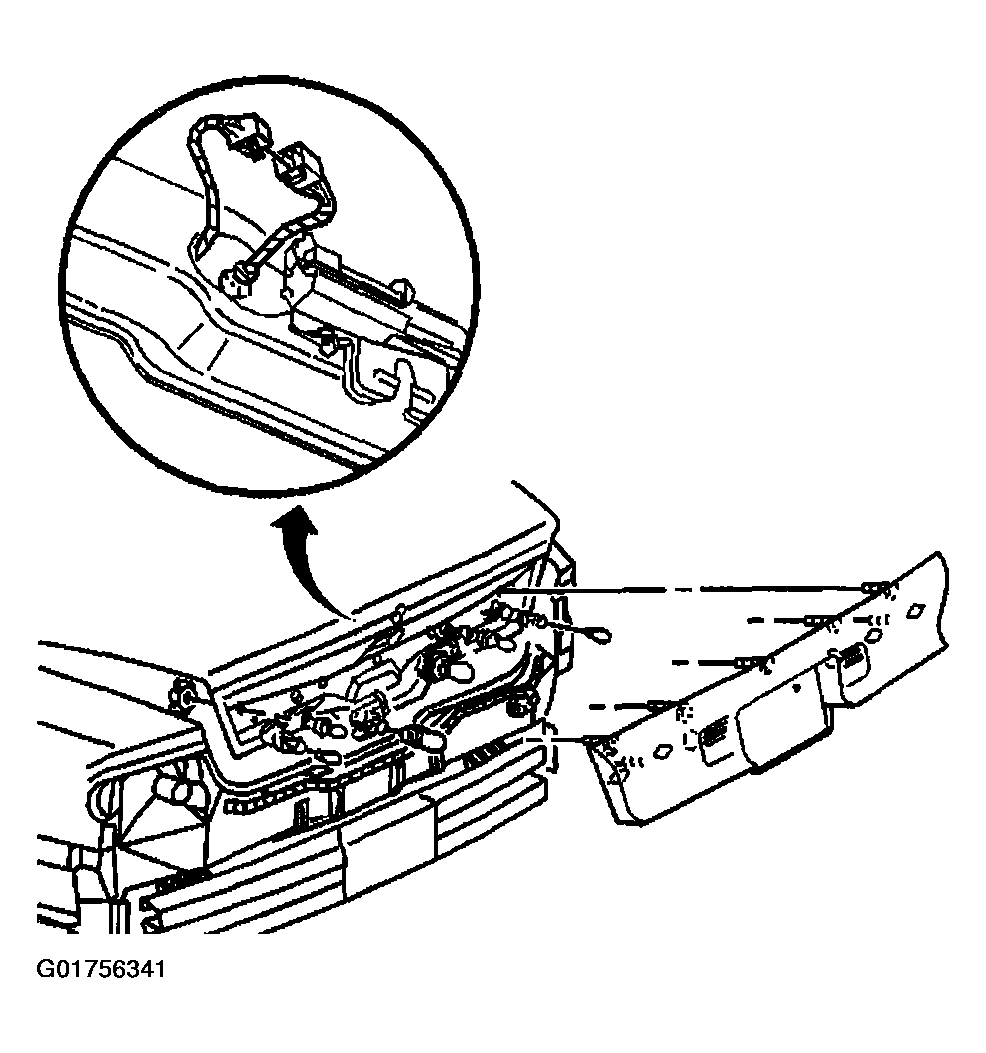

    2. Fig 1: Identifying Compartment Lid Applique & Harness
    G01756341Courtesy of GENERAL MOTORS CORP.
  2. Install the sockets to the rear compartment applique.
  3. Install the harness connectors to the rear applique.
  4. Position the rear compartment lid applique to the rear compartment lid.
  5. Install the rubber grommet at the rear compartment lid.
  6. Install the wing nuts to the studs on the rear compartment lid applique.
  7. Hand tighten the nuts.
  8. Connect the rear compartment lid applique harness.
  9. Close the rear compartment.
