Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment convenience net from the retainers at the tail lamp wing nuts.

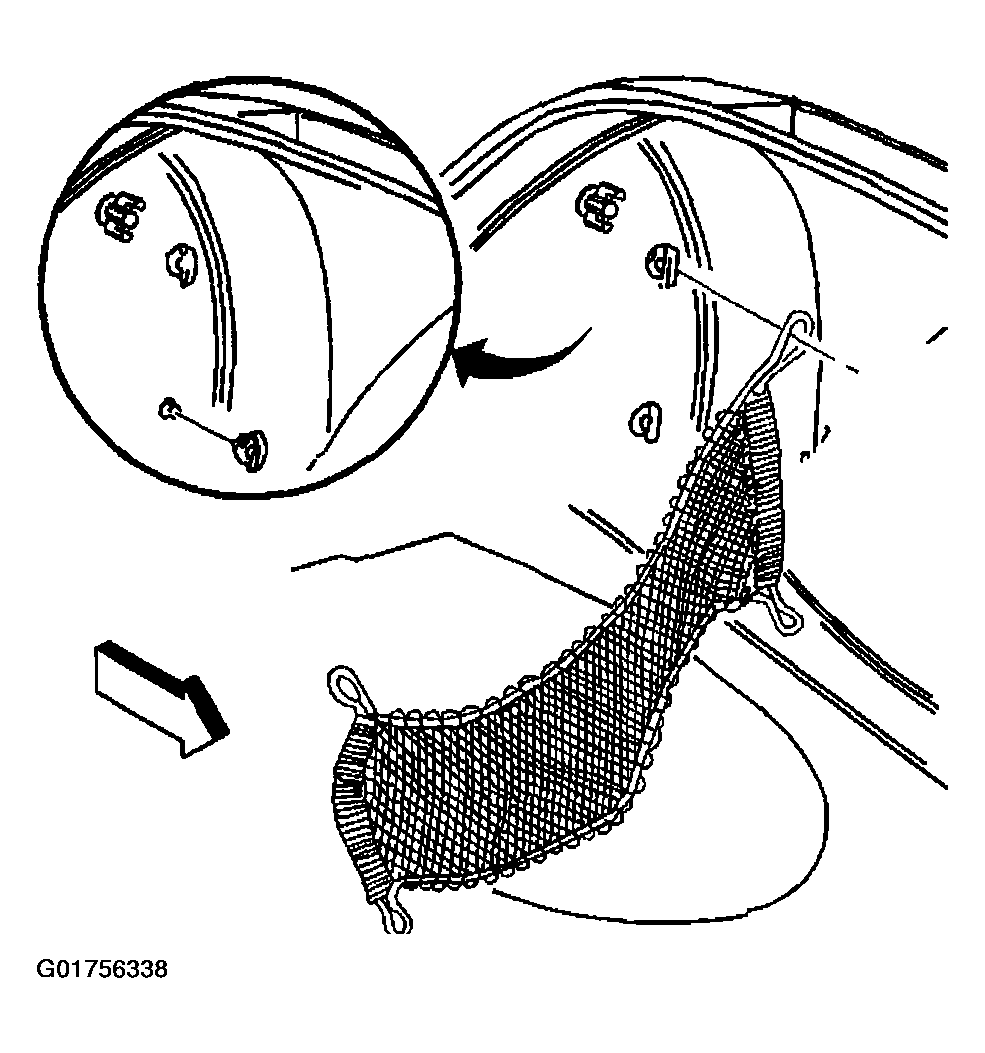

    3. Fig 1: Identifying Compartment Convenience Net
    G01756338Courtesy of GENERAL MOTORS CORP.
  3. Remove the convenience net from the rear compartment.
